CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
Horizontal
Dimension(L*W*H) :
4860x3600x3460
Weight (T) :
11 T
Table Size (mm) :
630x630
CNC Control System :
GSK, FANUC, MITSUBISHI, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
800
Table Travel (Z) (mm) :
800
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.008
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
800 kg
Feed Speed(mm/min) :
0 - 2400 mm/min
Min. Time of Tool Change(s) :
0.6
Tool Magazine Capacity :
24
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
Customized
Marketing Type :
Hot Product 2022
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
3-axis Horizontal Milling Machining Center
Keywords :
cnc milling machine for metal
Product type :
Cnc 3 Axis Machine
Machine Type :
metal lathe and milling machine
Table size :
630x630
Number of axis :
3
X-axis travel :
800
Color :
Custom-made
Y-axis travel :
800
Brand :
TIMEWAY
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Ukraine
Core Components :
Motor
Rapid Feed Speed(m/min) :
24
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$78,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

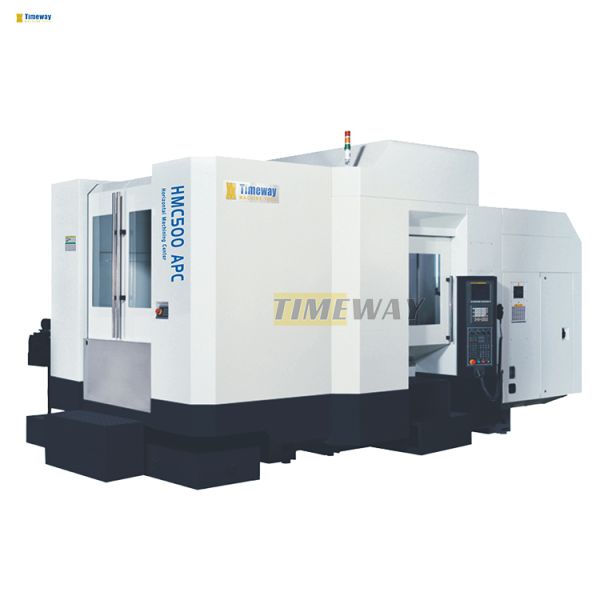

CNC Horizontal Machining Center
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Technical Parameter：
Specification
Unit
HMC500 APC
HMC630 APC
Max. swing of workpiece
mm
700
820
Table rotation speed
rpm
16.6
10
Pallet exchange gear ratio
-
200
240
Pallet exchange time
s
24
24
Distance spindle center to table
mm
50-850
0-750
Distance spindle nose to table center
mm
125-925
130-1030
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
· SIEMENS 808D control
· Manual pulse generator (MPG)
· USB &LAN interface
· Work lamp
· Pilot lamp
· Cooling system
· Auto. lubrication system
· Leveling wedge and bolts
· NC rotary table
· Heat exchanger
· Tool & tool box
· Operator manual(English)
· ZF or BF reducer
· Circular coolant nozzle
· Coolant through spindle (CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. tool length measurement system
· Auto. workpiece measurement system
· Continuous indexing station worktable
· High precision grating ruler (opt.: X,Y,Z,B axis)
· NC rotary worktable (B axis)
· Chip conveyor (opt.: sprial type/chain type)
Positive Comments From Customers
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Company Introduction
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Factory Display：
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Text Introduction：
CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
