Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
Horizontal
Dimension(L*W*H) :
4285x3120x3280mm
Weight (T) :
8 T
Table Size (mm) :
630x630
CNC Control System :
GSK, FANUC, MITSUBISHI, KND, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1000
Table Travel (Y) (mm) :
750
Table Travel (Z) (mm) :
600
Positioning Accuracy (mm) :
±0.008
Repeatability (X/Y/Z) (mm) :
±0.005
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
1200 kg
Feed Speed(mm/min) :
0 - 2400 mm/min
Min. Time of Tool Change(s) :
4
Tool Magazine Capacity :
24
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMEWAY TIMAC
Voltage :
CUSTOMIZED
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
3-axis Horizontal Machining Center
Machine Type :
Cnc Horizontal Machining Center
Table size :
630x630mm
Processing :
CNC Machining+milling
number of axis :
3
CNC Controller :
Fanuc Siemens Syntec GSK KND
X-axis travel :
1000mm
Certification :
CE ISO
Y-axis travel :
750mm
color :
Custom-made
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Brazil, Peru, Indonesia, Pakistan, India, Russia, Thailand, Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan
Core Components :
Motor
Rapid Feed Speed(m/min) :
24/15/24
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$21,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

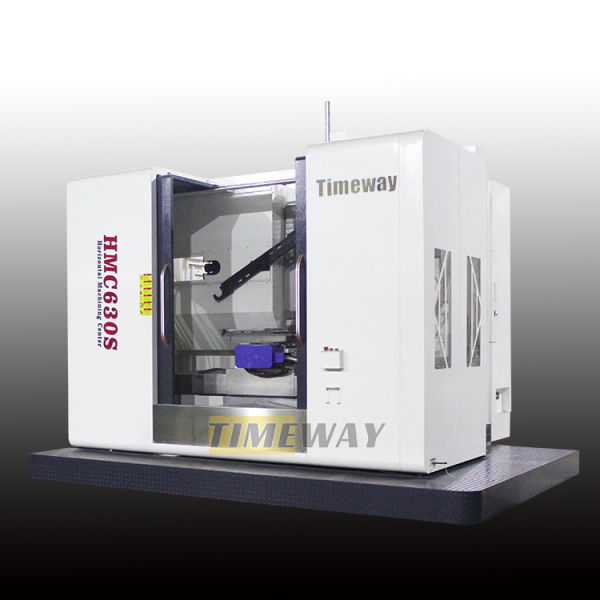

CNC Horizontal Machining Center
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Specification
Unit
HMC500S
HMC630S
HMC800S
Machine structure
-
Cross type
Cross type
Cross type
X-axis travel
mm
800
1000
1800
Y-axis travel
mm
600
750
1400
Z-axis travel
mm
500
600
900
B-axis servo motor torque(FANUC)
-
8
15
20
Table size
mm
500x500
630x630
800x800
Table indexing
°
1°x360
1°x360
1°x360
T-slots (No./width/pitch)
-
5-14-80
5-18-122
5-22-165
Table rotation speed
rpm
11.1
11.1
11.1
Loading capacity
kg
600
1200
2000
Spindle taper
-
BT40
BT50
BT50
Spindle speed
rpm
8000
6000
6000
X/Y/Z-axis positioning accuracy
mm
0.008
0.008
0.008
X/Y/Z-axis repositioning accuracy
mm
0.005
0.005
0.005
ATC capacity (style)
tools
24(Disc)
24(Disc)
40(Chain)
Tool change time (tool to tool)
sec
2.7
5
5
Machine weight
kg
5500
8000
12000
Machine dimensions (LxWxH)
mm
3500x2900x3280
4285×3120×3280
6200×4800×3800
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
· SIEMENS 808D control
· Manual pulse generator (MPG)
· USB &LAN interface
· Work lamp
· Pilot lamp
· Cooling system
· Auto. lubrication system
· Leveling wedge and bolts
· NC rotary table
· Heat exchanger
· Tool & tool box
· Operator manual(English)
· ZF or BF reducer
· Circular coolant nozzle
· Coolant through spindle (CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. tool length measurement system
· Auto. workpiece measurement system
· Chip conveyor (opt.: sprial type/chain type)
Client feedback
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Factory Display：
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
s Best CNC Horizontal Milling Machining Center with Cross Type No. of Spindles Single
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
