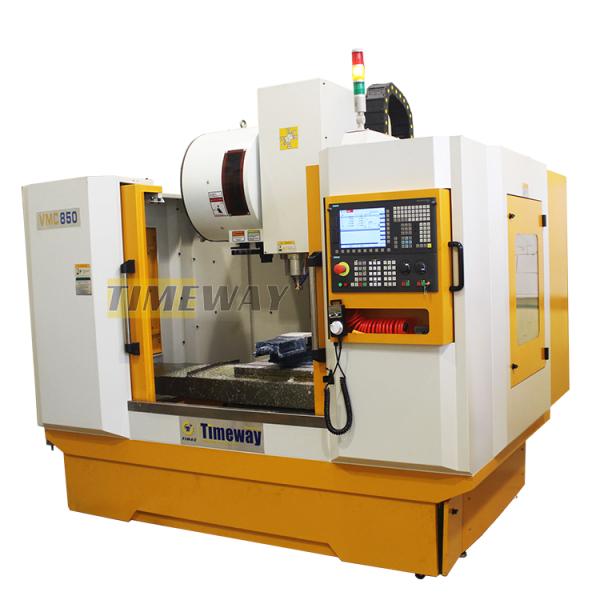

2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
3
Type :
VERTICAL
Dimension(L*W*H) :
2800*2300*2400
Weight (T) :
5 T
Table Size (mm) :
500*1000
CNC Control System :
GSK, FANUC, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
500
Table Travel (Z) (mm) :
500, 500mm
Positioning Accuracy (mm) :
0.01
Repeatability (X/Y/Z) (mm) :
0.008
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Spindle Motor Power(kW) :
7.5/11
Max. Table Load(kg) :
600 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
24
Key Selling Points :
Sustainable
Warranty :
1 Year
Place of Origin :
China
Brand Name :
Timeway
Voltage :
380V/50H
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
CNC Vertical Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining
Keywords :
Vertical Machine Center VMC
Product type :
Machining Center Cnc Mill Machine
CNC or Not :
CNC Systemn
Processing :
Metal Cutting Cnc Milling Machine
Table Travel (Y) :
500mm
Table Travel (X) (mm :
800mm
Applicable Industries :
Building Material Shops, Manufacturing Plant
Showroom Location :
Egypt, Canada, Turkey, Italy, Brazil, Peru, India
Core Components :
Motor
Rapid Feed Speed(m/min) :
15/15/15
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$35,000.00/sets 1-2 sets
MOQ :
1 set
Description
Summary
This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description
Vertical Machining Center VMC850
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Specification
Specification
Unit
VMC850
X-axis travel
mm
800
Y-axis travel
mm
500
Z-axis travel
mm
500
Table size
mm
1000×500
Loading capacity
kg
600
Spindle taper
/
BT-40
Spindle speed
r/min
8000
Main motor power
kw
7.5/11
X/Y/Z-axis positioning accuracy
mm
±0.01
X/Y/Z-axis repeat positioning accuracy
mm
±0.008
ATC capacity
tools
24
Tool change time (tool to tool)
sec
1.4
Machine weight
kg
4600
CNC system
/
FANUC/MITSUBISHI
Packing & Delivery
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Wooden cases(can be fumigated)
Company Profile
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing,aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining

We have got many certification
Client feedback
2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Title goes here.
We have got many good feedback.
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
