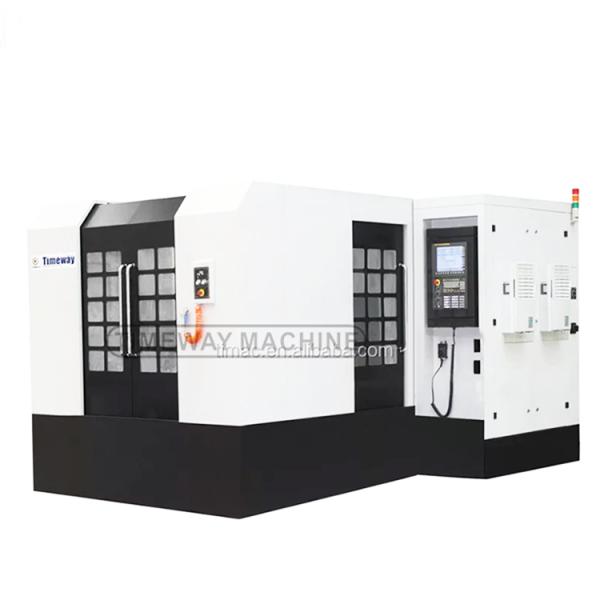

2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
Horizontal
Dimension(L*W*H) :
2620x4000x2600
Weight (T) :
15 T
Table Size (mm) :
400*400
CNC Control System :
GSK, FANUC, KND, Siemens
Number of Axes :
3, 4, 5
Table Travel (X) (mm) :
600
Table Travel (Y) (mm) :
600
Table Travel (Z) (mm) :
600
Positioning Accuracy (mm) :
0.0075
Repeatability (X/Y/Z) (mm) :
0.005
Range of Spindle Speed(r.p.m) :
0 - 10000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
2000 kg
Feed Speed(mm/min) :
1 - 8000 mm/min
Min. Time of Tool Change(s) :
9
Tool Magazine Capacity :
16, 20
Key Selling Points :
Automatic
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
220V/380V
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
CNC Machining Center
Machine Type :
Cnc Horizontal Machining Center
Application :
Metal Processing
Keywords :
Horizontal Machine Cetner
CNC or Not :
CNC Systemn
Processing :
Metal Milling Machine
Precision :
High Precision Machining Center
Color :
Custom-made
Worktable size :
400*400
The number of axis :
3
Applicable Industries :
Manufacturing Plant
Showroom Location :
Italy, Brazil, Peru, Indonesia, India, Mexico, Russia, UAE
Core Components :
Engine
Rapid Feed Speed(m/min) :
24
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$88,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
Specification
Techncial parameters
Unit
H3 APC
H4 APC
H5 APC
H6 APC
Wortable size
mm
300x300
400x400
500x500
630x630
Worktable number
-
2
2
2
2
Worktable indexing
°
0.001°
0.001°
0.001°
0.001°
Worktable loading capacity
kg
250kgx2
1000kgx2
600kgx2
1000x2
T slot of worktable (No.-sizexdistance)
-
24-M12(80x80)
5-14x80
5-14x100
24-M16 (125x125)
X axis travel
mm
460
600
900
1050
Y axis travel
mm
350
600
800
900
Z axis travel
mm
350
600
800
1050
Distance from spindle center to worktable
mm
60-410
0-600
0-800
0-900
Spindle taper (Style/diameter)
-
BT40-Φ120
BT40-Φ120
BT50-Φ190
BT50-Φ190
Max. spindle speed
rpm
10000
10000
6000
6000
ATC style/station
-
Disc/24pcs
Disc/24pcs
Disc/24pcs
Disc/24pcs
Max. tool diameter
mm
300
300
350
350
Max. tool length
mm
Φ80
Φ80
Φ127
Φ127
Max. tool weight
kg
7
7
15
15
Main motor
kw
5-7.5
15-18.5
15
15-18.5
Net weight (appox.)
kg
6300
15000
10000
15000
Overall dimension (LxWxH)
mm
2220x3000x2400
2620x4000x2600
3530x4600x2800
3800x6200x3200

Main configuration & accessories:

1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, H3APC/H4APC is direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. Exchangeable NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional configuration & accessories:

1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor;
Company Profile
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine

4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
