3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
Gantry
Dimension(L*W*H) :
3100x4500x3500
Weight (T) :
14 T
Table Size (mm) :
1650x1400
CNC Control System :
GSK, FANUC, MITSUBISHI, KND, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1600
Table Travel (Y) (mm) :
1000
Table Travel (Z) (mm) :
700
Positioning Accuracy (mm) :
0.04mm
Repeatability (X/Y/Z) (mm) :
0.008
Spindle Motor Power(kW) :
26
Max. Table Load(kg) :
8000 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
16, 24
Key Selling Points :
Multifunctional
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Voltage :
Customer's Requirement
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
X-axis travel :
1600
Y-axis travel :
1000
Z-axis travel :
700
Table size :
1650x1400
Product name :
Gantry Machining Center
Machine Type :
Gantry Machining Center
Number of axis :
3
key selling points :
competitive price
Keywords :
cnc gantry machining center
Key words :
cnc gantry machining center for sale
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Philippines, Morocco, UAE, Colombia, Bangladesh
Core Components :
Motor
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$200,000.00/sets 1-1 sets
MOQ :
1 set
Description

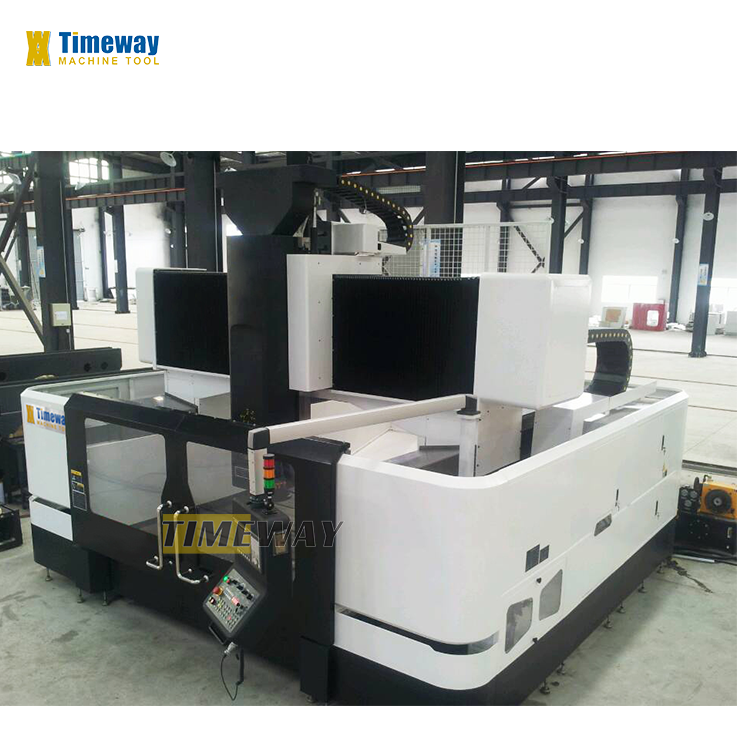

Gantry Machining Center
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Products Description
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Model
Unit
BGM1016
BGM1020
BGM2020
Max. weight of workpiece
kg/m2
8000
10000
10000
Gantry width
mm
2140
2650
2650
Spindle Max. torque
Nm
165
560
560
X-axis rapid feed speed
m/min
24
20
20
Y-axis rapid feed speed
m/min
24
20
20
Z-axis rapid feed speed
m/min
16
16
16
Total power
kw
45
45
45
Standard Accessories：
Optional Accessories：
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
_MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Machine Details
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
========================
>> Hardened and fine ground worktable surface make sure high rigidity.

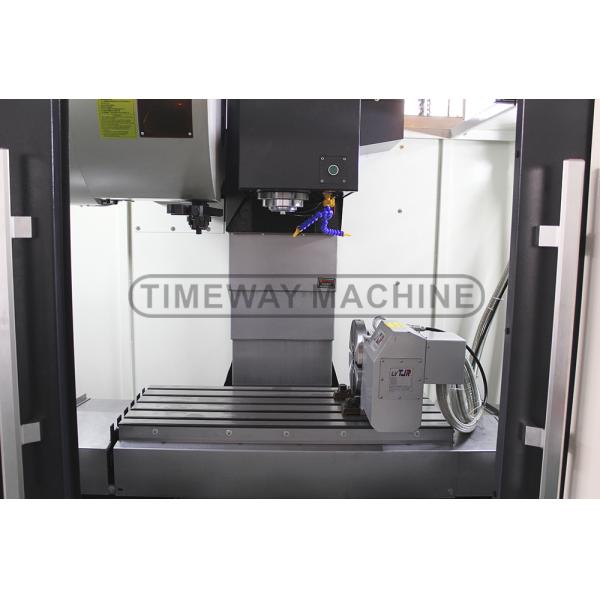

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.

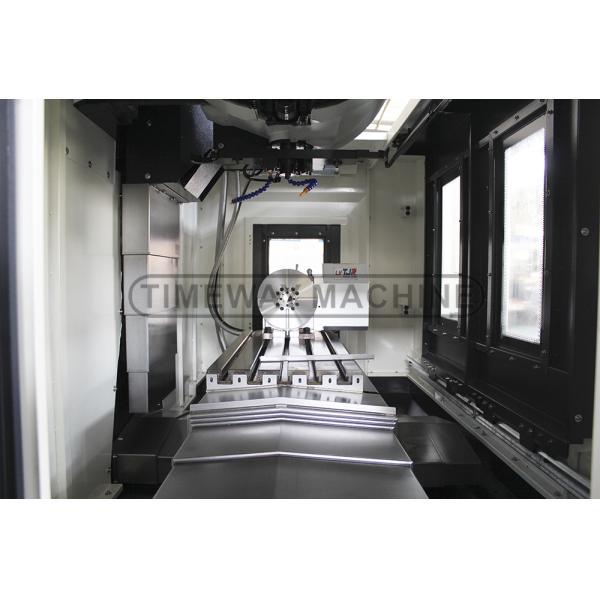

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
========================

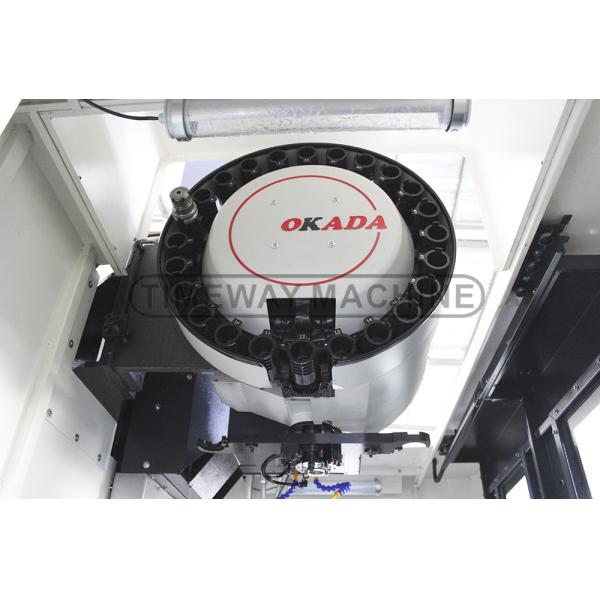

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

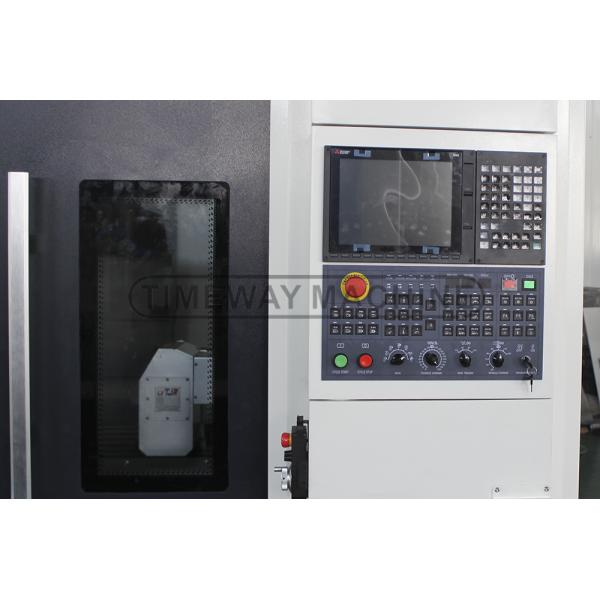

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
========================

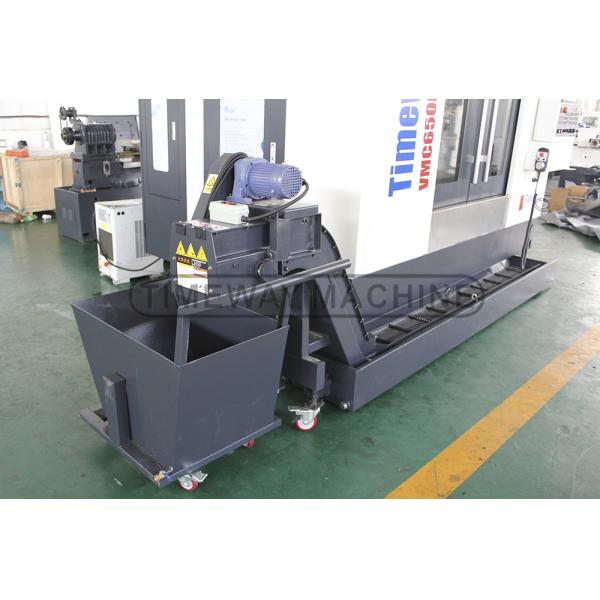

>> Chain-type chip conveyor comes optional.

Positive Comments From Customers
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Company Introduction
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Text Introduction：
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Factory Display：
3-Axis High Precision CNC Portal Milling Machine with 0.04mm Positioning Accuracy
Video Description
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
