380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Specifications
Condition :
New
Spindle Taper :
BT-50 (155)
No. of Spindles :
3
Type :
VERTICAL
Dimension(L*W*H) :
4200x3520x3100
Weight (T) :
14000 KG
Table Size (mm) :
1700x800
Table Travel (X) (mm) :
1500
Table Travel (Y) (mm) :
800
Table Travel (Z) (mm) :
700
Positioning Accuracy (mm) :
±0.008
Repeatability (X/Y/Z) (mm) :
±0.006
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Max. Table Load(kg) :
1500 kg
Feed Speed(mm/min) :
0 - 2400 mm/min
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
24 (Disc)
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
380V/50H
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machining Capacity :
Medium Duty
Spindle Bore(mm) :
Other
Cutting torque :
125 N.m
Rapid Feed Speed(mm/min) :
0 - 2400 mm/min
Product name :
CNC Vertical Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining
Keywords :
Vertical Machine Center VMC
Product type :
Machining Center Cnc Mill Machine
Color :
Custom-made
Processing :
Metal Cutting Cnc Milling Machine
Longitudinal travel (X) :
1500mm
Cross travel (Y) :
800mm
Vertical travel (Z) :
700
Price :
$34,688.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Summary
X/Y:Linear Guideway, Z:Sliding Guideway

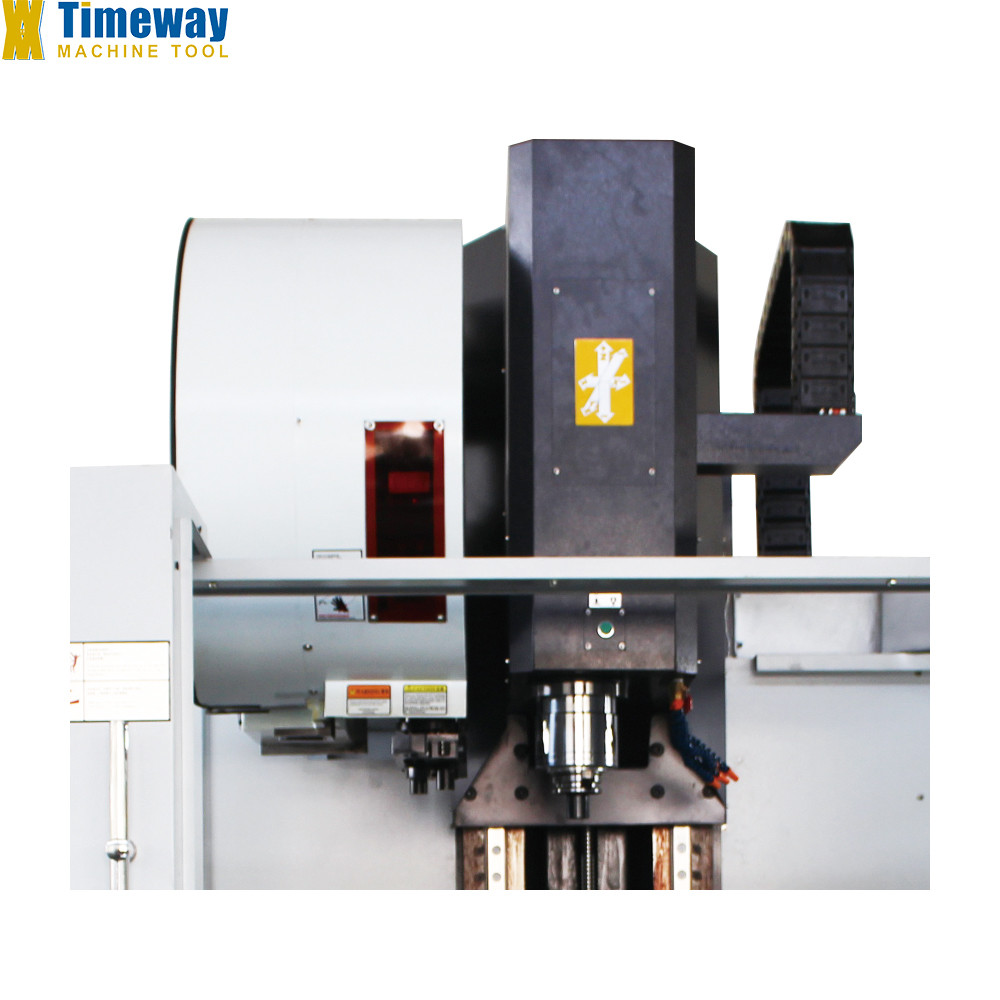

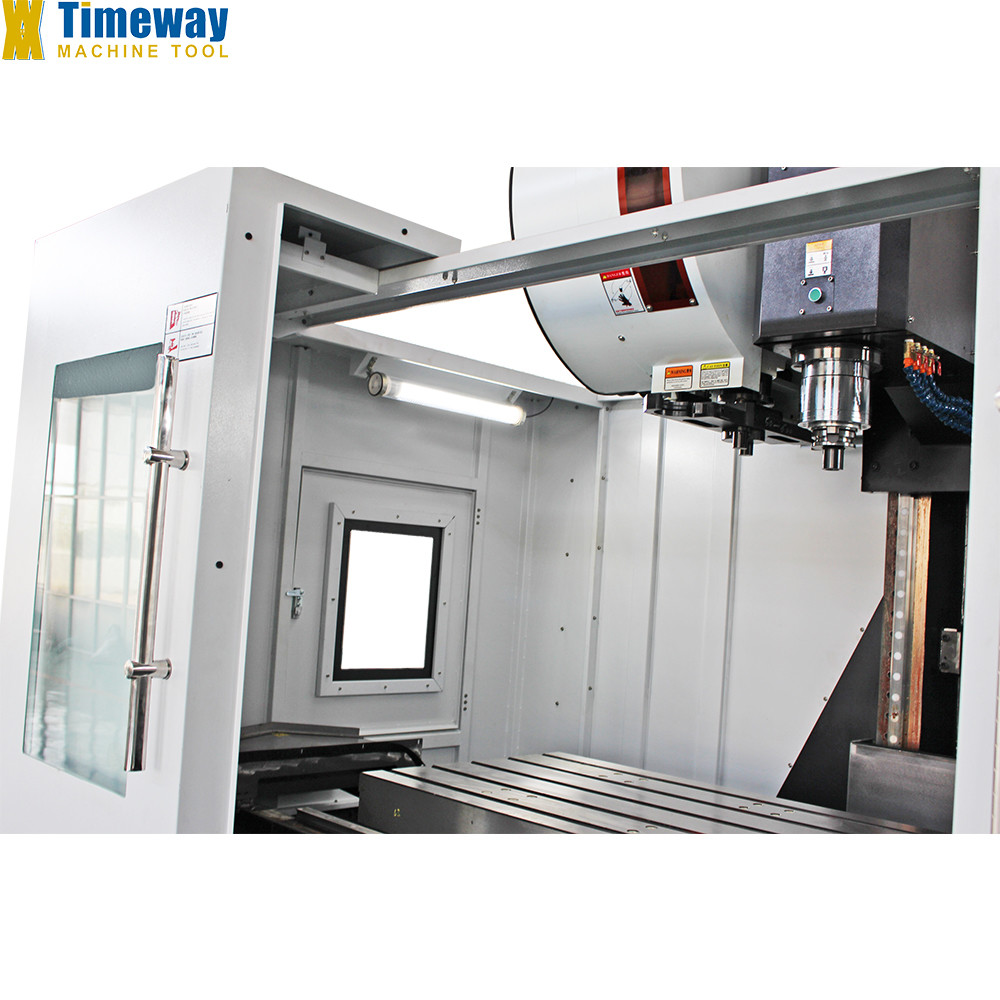

This is a vertical machining center. lt has a high-edge configuration and can work automatically. lt can provide high precision operation with Taiwan Precision Spindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description
Vertical Machining Center VMC1580L
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Specification
Specification
Unit
VMC1580L
Worktable size (LxW)
mm
1700×800

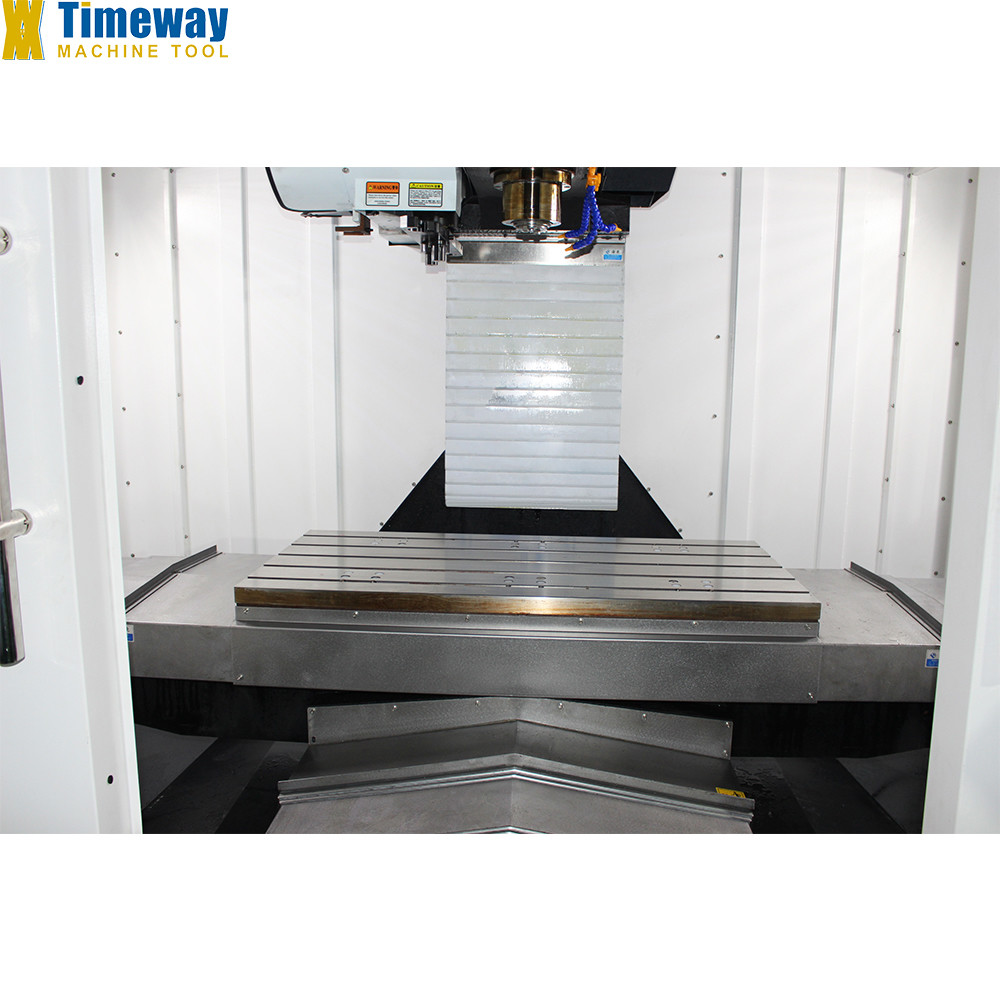

T-slot (No./width/pitch)
mm
5-18-100
Loading capacity
kg
1500
Longitudinal travel (X)
mm
1500
Cross travel (Y)
mm
800
Vertical travel (Z)
mm
700
Distance from spindle nose to table
mm
130-830
Distance from spindle center to column
mm
810
Spindle taper
-
BT-50 (155)
Spindle speed
rpm
6000
X/Y/Z-axis rapid feed speed
m/min
24/24/15
X/Y/Z-axis servo motor (FANUC)
-
β30/β30/β30
X/Y/Z-axis positioning accuracy
mm
±0.008
X/Y/Z-axis repositioning accuracy
mm
±0.006
Main motor power
kw
15/18.5
Air pressure source
kg/cm2
6-8
Power capacity
Kva
35
Tool magazine capacity
T
24 (Disc)
Guideway type
-
X/Y: Linear; Z: Sliding
Machine weight
kg
14000
Machine dimensions (LxWxH)
mm
4200×3520×3100
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Factory Display：
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
380V/50H High Productivity VMC1580L Vertical Machining Center with 1500mm X-axis Travel
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
