Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
Horizontal
Dimension(L*W*H) :
3500*2900*3280
Weight (T) :
18 T
Table Size (mm) :
500*500
CNC Control System :
FANUC
Number of Axes :
3
Table Travel (X) (mm) :
1400 mm
Table Travel (Y) (mm) :
1000 mm
Table Travel (Z) (mm) :
500 mm
Positioning Accuracy (mm) :
0.012
Repeatability (X/Y/Z) (mm) :
0.008
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
25
Max. Table Load(kg) :
600 kg
Feed Speed(mm/min) :
20000 - 50000 mm/min
Min. Time of Tool Change(s) :
3
Tool Magazine Capacity :
12, 24
Key Selling Points :
High-accuracy
Warranty :
1 Year
Place of Origin :
Hubei, China
Brand Name :
Timeway
Voltage :
380V 50HZ /220V 60 HZ
Marketing Type :
Hot Product 2021
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
3-axis Vertical Cnc Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining Center
Processing :
Metal Vertical Milling Machine
Keywords :
Vmc Machine Center
Product type :
Cnc 3 Axis Machine
Precision :
High Precision Machining Center
Function :
Machining Metal
Control system :
SIEMENS GSK FANUC (optional)
Features :
High Precision Economical
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location :
Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Australia
Core Components :
Motor
Rapid Feed Speed(m/min) :
45
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$24,560.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

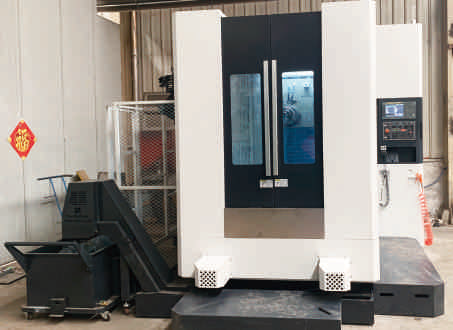

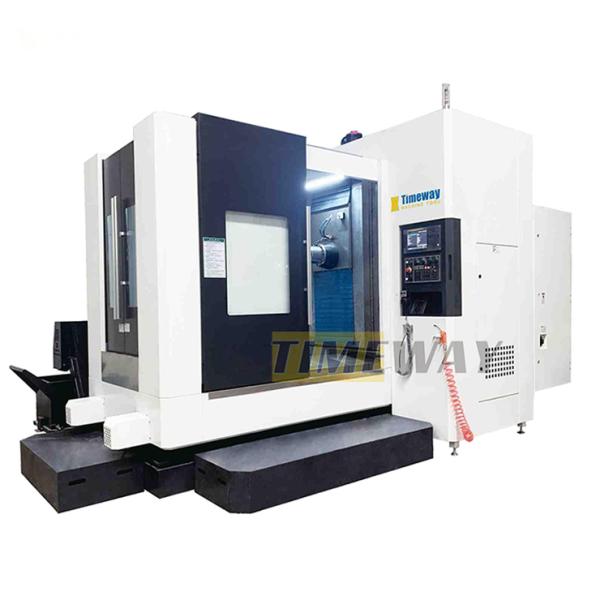

CNC Horizontal Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Specification
Unit
HMC500APC
HMC630APC
HMC800APC
Machine structure
-
Positive T-type
Positive T-type
Positive T-type
X-axis travel
mm
800
1100
1600
Y-axis travel
mm
800
800
1000
Z-axis travel
mm
800
1100
1100
B-axis servo motor torque(FANUC)
-
Bis12
Bis22
Bis22
Table size
mm
500x500
630x630
800x800
Table indexing
°
1°x360
1°x360
1°x360
T-slots (No./width/pitch)
-
5-18-100
5-18-100
6-22-125
Table rotation speed
rpm
16.6
16.6
11.1
Loading capacity
kg
800
1500
2500
Locking force(35kg/cm2)
kg/m
5000
5000
5000
Distance spindle center to table
mm
50-850
50-850
0-1180
Distance spindle nose to table center
mm
125-925
125-1225
180-1180
Spindle taper
-
BT40
BT50
BT50
Spindle speed
rpm
8000
6000
6000
X/Y/Z-axis servo motor (FANUC)
-
Bis30/Bis30/Bis30
Bis30/Bis30/Bis30
Bis40/Bis40/Bis40
X/Y/Z-axis cutting feed speed
mm/min
1-8000
1-8000
1-8000
X/Y/Z-axis rapid feed speed
m/min
24/24/24
24/24/24
24/12/18
X/Y/Z-axis rails type
-
Linear
X/Z:Linear;
Y: sliding
X/Z:Linear;
Y: sliding
X/Y/Z-axis positioning accuracy
mm
0.008
0.008
0.008
X/Y/Z-axis repositioning accuracy
mm
0.005
0.005
0.005
B-axis positioning accuracy
''
10''
10''
10''
ATC capacity (style)
tools
24(Disc)
24(Disc)
40(Chain)
Tool change time (tool to tool)
sec
2.7
5
5
Max. tool weight
kg
8
18
20
Max. tool diameter
mm
78/125
112/200
125/230
Max. tool length
mm
300
300
300
Power supply
Kva
30
40
50
Air pressure require
kg/cm2
8
8
8
Machine weight
kg
9500
12000
12000
Machine dimensions (LxWxH)
mm
3800x3200x3280
4860×3600×3460
6200×4800×3800
Horizontal CNC Milling Machine for Metal Components Production Machining Center
· SIEMENS 808D control
· Manual pulse generator (MPG)
· USB &LAN interface
· Work lamp
· Pilot lamp
· Cooling system
· Auto. lubrication system
· Leveling wedge and bolts
· NC rotary table
· Heat exchanger
· Tool & tool box
· Operator manual(English)
· ZF or BF reducer
· Circular coolant nozzle
· Coolant through spindle (CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. tool length measurement system
· Auto. workpiece measurement system
· Chip conveyor (opt.: sprial type/chain type)
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Why Choose Us
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Horizontal CNC Milling Machine for Metal Components Production Machining Center
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
