Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Specifications
Condition :
New
Spindle Taper :
bt40-155
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
4100*2820*3610
Weight (T) :
12 T
Table Size (mm) :
1600*800
CNC Control System :
GSK, FANUC, MITSUBISHI, KND, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1500
Table Travel (Y) (mm) :
800
Table Travel (Z) (mm) :
700
Positioning Accuracy (mm) :
0.003
Repeatability (X/Y/Z) (mm) :
0.003
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
1400 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
24
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
timeway
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
3-axis Vertical Cnc Machining Center
Machine Type :
Vertical Milling Machine Centers
CNC or Not :
CNC Systemn
After-sales Service Provided :
1 Year
Model :
vmc1580G
Color :
Customers' Request
Control system :
SIEMENS GSK FANUC (optional)
Guideways :
Linear
Worktable size :
1600*800mm
Spindle Speed :
6000 Rpm
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Energy & Mining, Advertising Company
Showroom Location :
Saudi Arabia, Russia, Bangladesh, South Africa, Australia
Core Components :
Motor
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$74,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

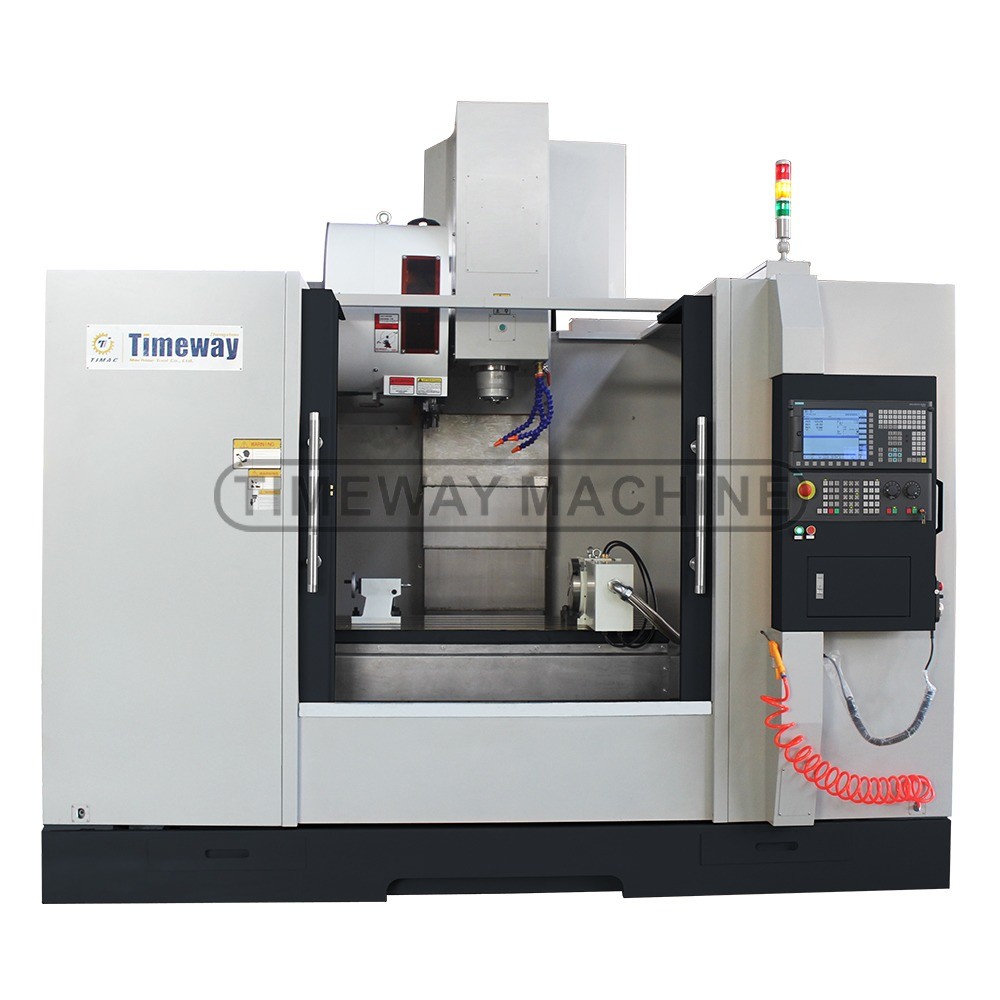

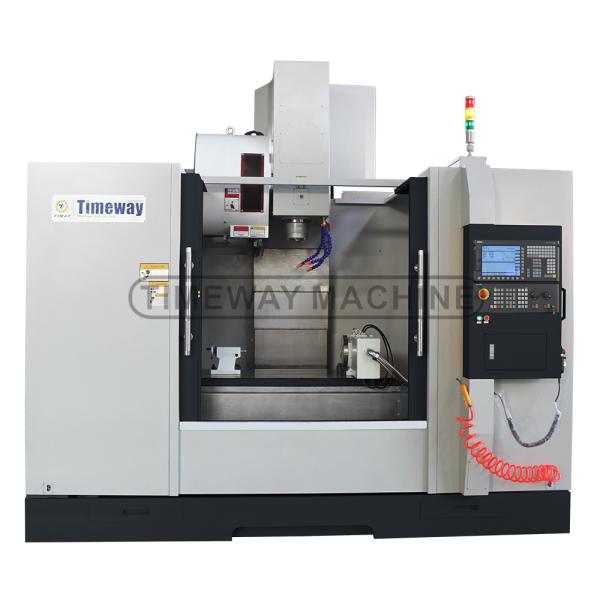

Vertical Machining Center
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Specification
SPECIFICATION
UNIT
VMC1370G
VMC1580G
Worktable size (LxW)
mm
1360x700
1600x800
T-slot (No./width/pitch)
mm
5-18-152.5
5-22-135
Loading capacity
kg
1200
1400
Longitudinal travel (X)
mm
1300
1500
Cross travel (Y)
mm
700
800
Vertical travel (Z)
mm
700
700
Distance from spindle nose to table
mm
140-840
150-850
Distance from spindle center to column
mm
816
855
Spindle taper
-
BT-50 (155)
BT-50 (155)
Spindle speed
rpm
6000
6000
X/Y/Z-axis rapid feed speed
m/min
24/24/24
24/24/24
X/Y/Z-axis servo motor (FANUC)
-
β22/β22/β30
β30/β30/β30
X/Y/Z-axis positioning accuracy
mm
±0.003/300
±0.003/300
X/Y/Z-axis repositioning accuracy
mm
±0.003/300
±0.003/300
Main motor power
kw
15/18.5
15/18.5
Air pressure source
kg/cm2
6-8
6-8
Power capacity
Kva
30
35
Tool magazine capacity
T
24 (Disc)
24 (Disc)
Guideway type
-
Linear
Linear
Machine weight
kg
10000
12000
Machine dimensions (LxWxH)
mm
3820x2600x3100
4100x2820x3610
Accessories
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
1. CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc.
2.X/Y/Z -linear guideway;
3.24 tool ATC(disc type);
4. HIWIN leadscrew;
5. Full enclosure;
6. Spindle center air blast;
7. Work lamp;
8. Pilot lamp;
9. USB and LAN interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
1. The 4th axis wiring;

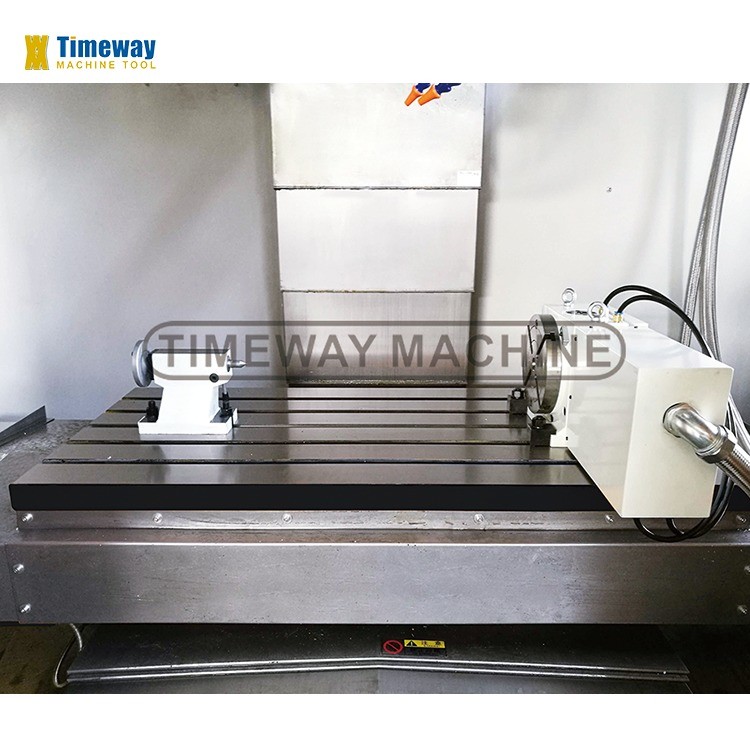

2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
Detailed Images
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

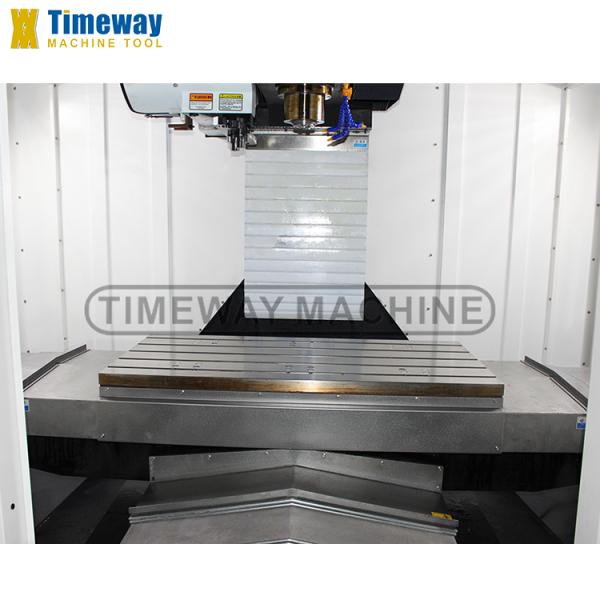

Hardened & Polished Table
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

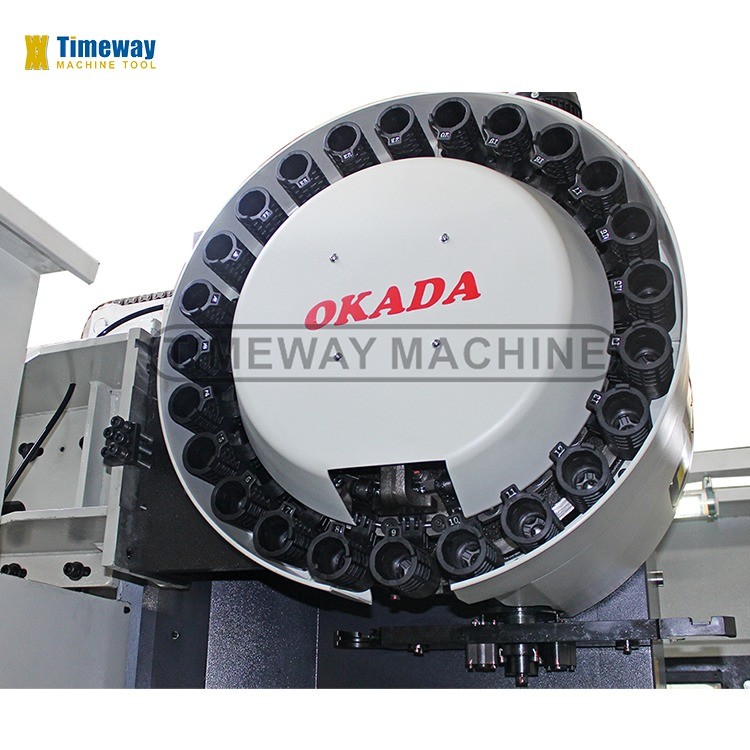

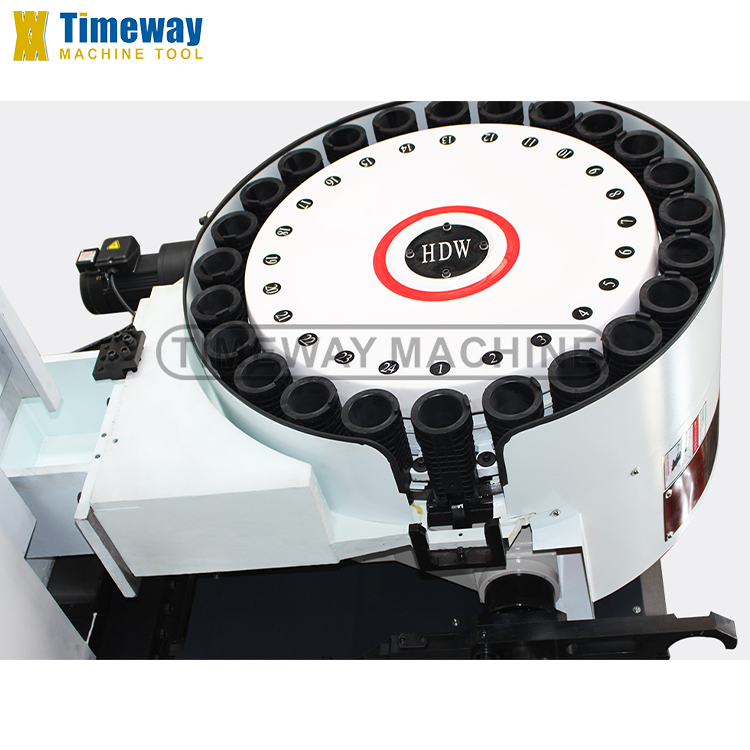

24 Tools Disc-type ATC
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

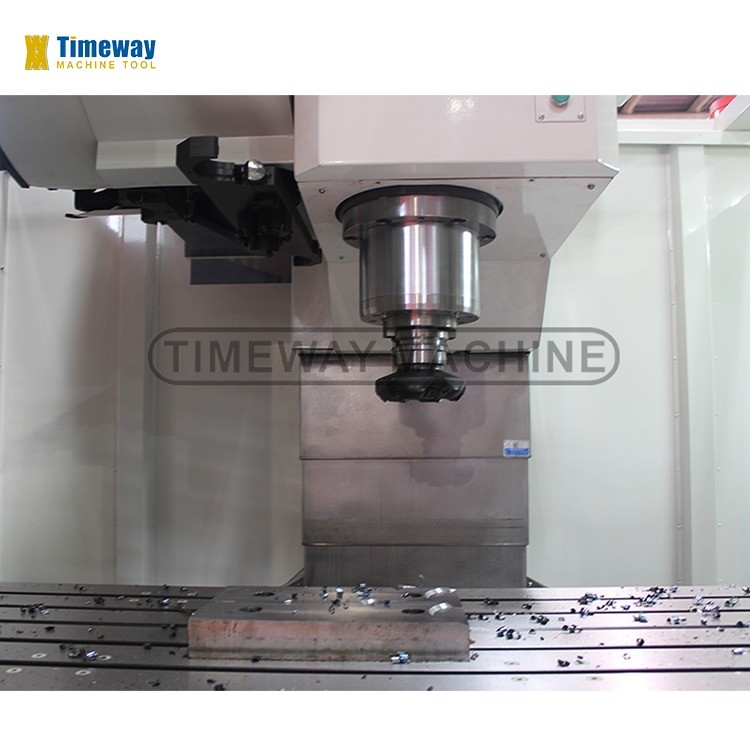

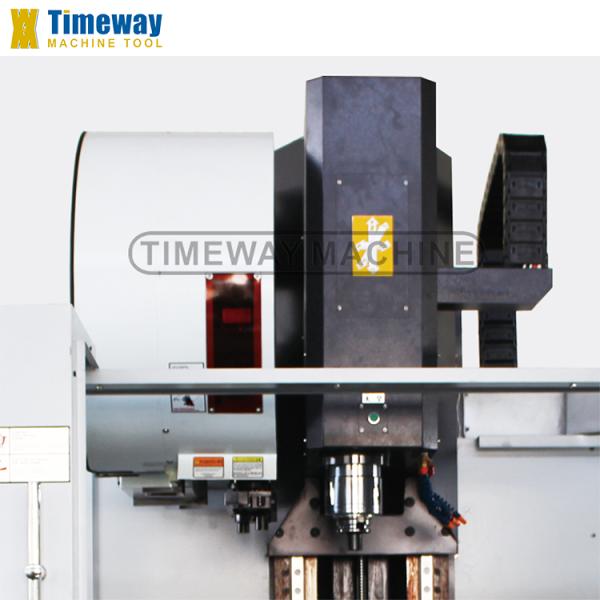

Taiwan Spindel & Clamp Arm

Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

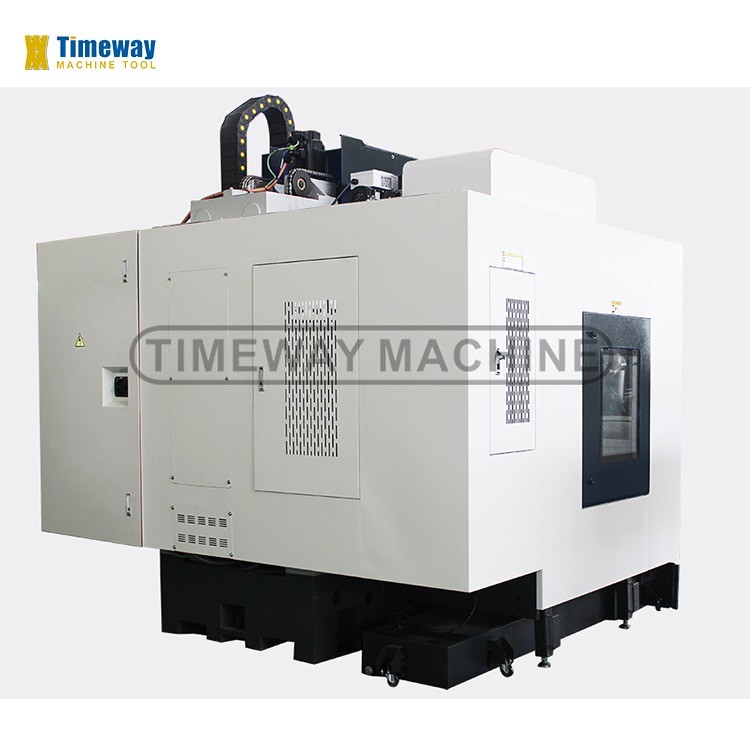

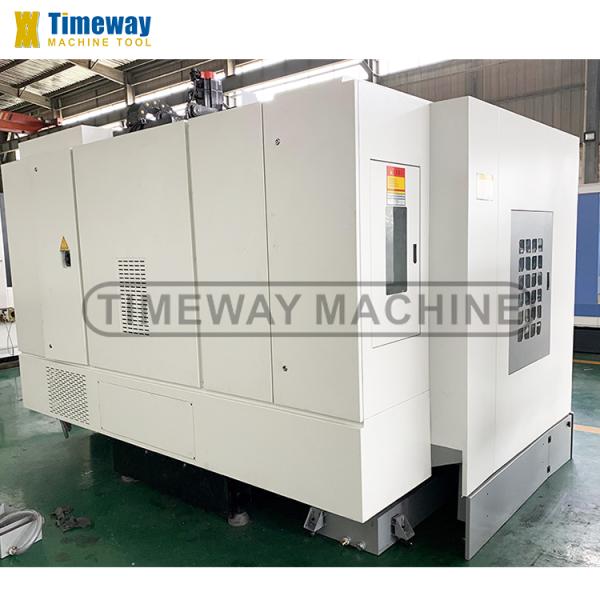

Full Splash Guard

Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

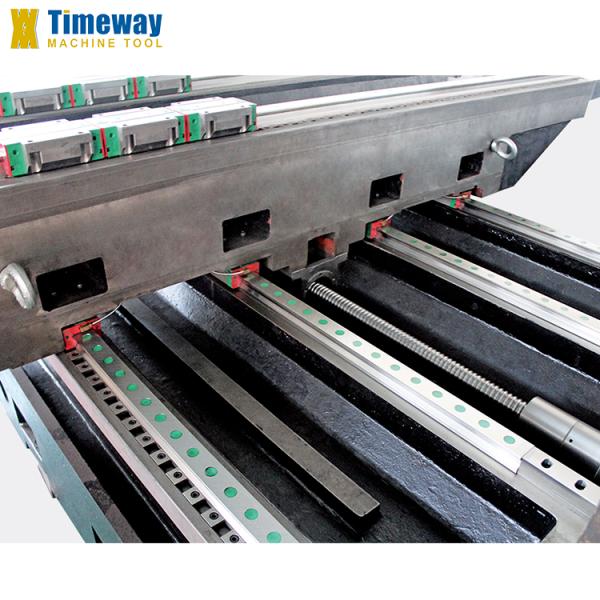

4-track Linear for Y-axis

Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

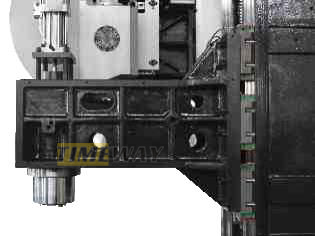

Strengthened Spindle Box

Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

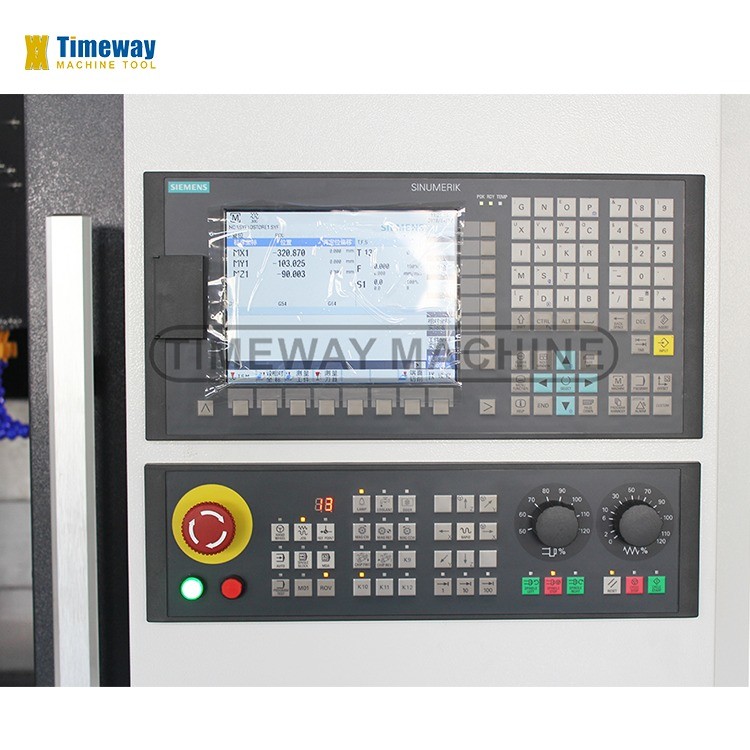

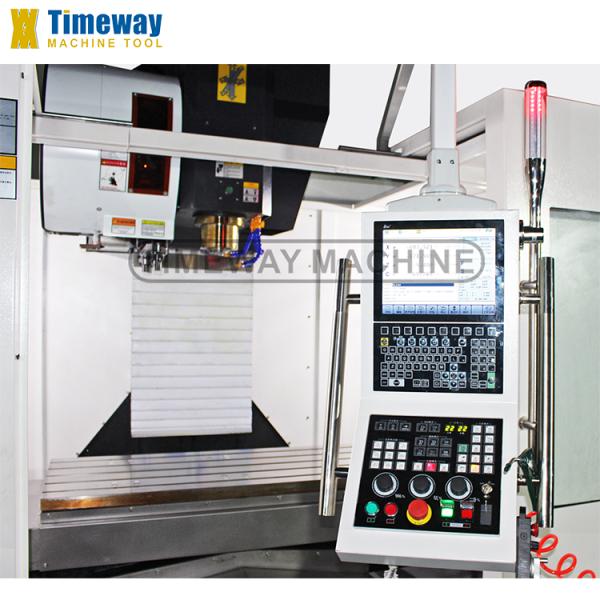

CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc.

Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

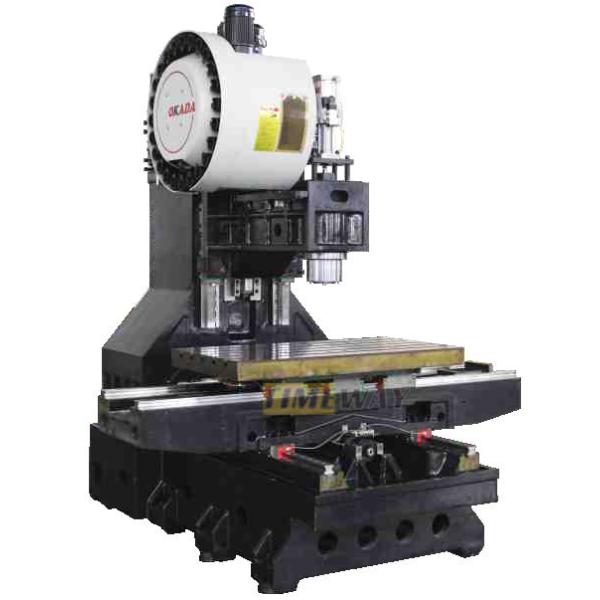

High rigidity machine bed

Client feedback
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision

This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Factory Display：
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
