15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
3
Type :
Horizontal
Dimension(L*W*H) :
6200*4800*3800
Weight (T) :
15 T
Table Size (mm) :
800*800
CNC Control System :
GSK, FANUC, MITSUBISHI, KND, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1600
Table Travel (Y) (mm) :
1000
Table Travel (Z) (mm) :
1100
Positioning Accuracy (mm) :
0.008
Repeatability (X/Y/Z) (mm) :
0.005
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
2500 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
40
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
timeway
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Horizontal CNC Milling Machine
Machine Type :
Horizontal Machine Centers
Model :
HMC800
CNC Controller :
Fanuc Siemens Syntec KND GSK
Color :
Customer's Requirement
Worktable size :
800*800
After-sales Service Provided :
1 Year
Spindle Speed :
6000 Rpm
X/Y/Z Axis Travel :
1600/1000/1100mm
Machine weight :
15000kg
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Advertising Company
Showroom Location :
Saudi Arabia, Pakistan, Russia, Thailand, South Korea, Chile, South Africa
Core Components :
Motor
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$69,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

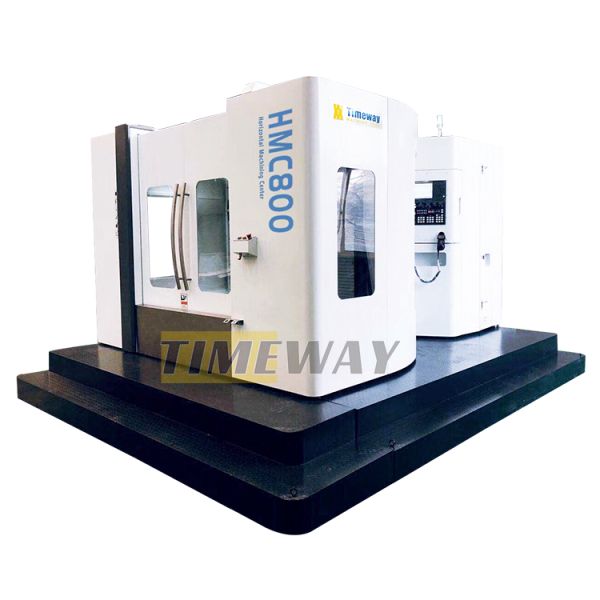

15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Specification
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Specification
Unit
HMC500
HMC630
HMC800
Machine structure
-
Positive T-type
Positive T-type
Positive T-type
X-axis travel
mm
800
1100
1600
Y-axis travel
mm
800
800
1000
Z-axis travel
mm
800
1100
1100
B-axis servo motor torque(FANUC)
-
Bis12
Bis22
Bis22
Table size
mm
500x500
630x630
800x800
Table indexing
°
1°x360
1°x360
1°x360
T-slots (No./width/pitch)
-
5-18-100
5-18-100
6-22-125
Table rotation speed
rpm
16.6
16.6
11.1
Loading capacity
kg
800
1500
2500
Locking force(35kg/cm2)
kg/m
5000
5000
5000
Distance spindle center to table
mm
50-850
50-850
0-1180
Distance spindle nose to table center
mm
125-925
125-1225
180-1180
Spindle taper
-
BT40
BT50
BT50
Spindle speed
rpm
8000
6000
6000
X/Y/Z-axis servo motor (FANUC)
-
Bis30/Bis30/Bis30
Bis30/Bis30/Bis30
Bis40/Bis40/Bis40
X/Y/Z-axis cutting feed speed
mm/min
1-8000
1-8000
1-8000
X/Y/Z-axis rapid feed speed
m/min
24/24/24
24/24/24
24/12/18
X/Y/Z-axis rails type
-
Linear
X/Z:Linear;
Y: sliding
X/Z:Linear;
Y: sliding
X/Y/Z-axis positioning accuracy
mm
0.008
0.008
0.008
X/Y/Z-axis repositioning accuracy
mm
0.005
0.005
0.005
B-axis positioning accuracy
''
10''
10''
10''
ATC capacity (style)
tools
24(Disc)
24(Disc)
40(Chain)
Tool change time (tool to tool)
sec
2.7
5
5
Max. tool weight
kg
8
18
20
Max. tool diameter
mm
78/125
112/200
125/230
Max. tool length
mm
300
300
300
Power supply
Kva
30
40
50
Air pressure require
kg/cm2
8
8
8
Machine weight
kg
9500
12000
12000
Machine dimensions (LxWxH)
mm
3800x3200x3280
4860×3600×3460
6200×4800×3800
Accessories
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
· SIEMENS 808D control
· Manual pulse generator (MPG)
· USB &LAN interface
· Work lamp
· Pilot lamp
· Cooling system
· Auto. lubrication system
· Leveling wedge and bolts
· NC rotary table
· Heat exchanger
· Tool & tool box
· Operator manual(English)
· ZF or BF reducer
· Circular coolant nozzle
· Coolant through spindle (CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. tool length measurement system
· Auto. workpiece measurement system
· Chip conveyor (opt.: sprial type/chain type)
Client feedback
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design

This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Factory Display：
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
