Specifications
Type :
Horizontal
Range of Spindle Speed(r.p.m) :
0 - 6000
Number of Axes :
3
No. of Spindles :
Single
Machining Capacity :
Heavy Duty
Spindle Taper :
BT50
Table Travel (X) (mm) :
1050
Table Travel (Y) (mm) :
750
Table Travel (Z) (mm) :
900
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.006
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
HMC630 APC
Voltage :
220V/380V
Key Selling Points :
High-accuracy, Multifunctional
Weight (KG) :
11000
Warranty :
1 Year
Max. Table Load(kg) :
950 kg
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Product name :
Milling Machine Center Frame
After-sales Service Provided :
Online Service
Machine Type :
Machining Center
Name :
3 Axis Milling Machine
Keyword :
Cnc 3 Axis Milling Machine
Precision :
High Precision Machining Center
Controller :
FANUC SIEMENS GSK SYNTEC
Application :
Metal Machining
Condition :
New
Showroom Location :
Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan
Year :
2023
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other
Core Components :
Bearing, Motor, Gear, Gearbox, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$72,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

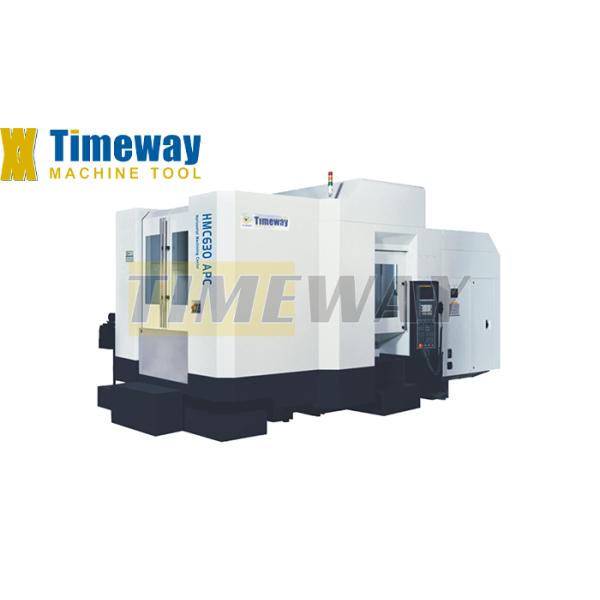

HMC630 APC
Horizontal Machining Center:
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Specification
Unit
HMC630APC
Wortable size
mm
630x630
Worktable number
pcs
2
Worktable indexing
°
0.001°
T-slot of worktable (No.-sizexdistance)
-
24xM16
Max. swing of workpiece
mm
820
Worktable rotation speed (B)
rpm
10
Worktable gear ratio
-
160
Pallet exchange gear ratio
-
240
Pallet exchange style
-
Rotating type
Pallet exchange time
s
24
Worktable loading capacity
kg
950
X axis travel
mm
1050
Y axis travel
mm
750
Z axis travel
mm
900
Distance from spindle center to worktable
mm
0-750
Distance from spindle nose to wortable center
mm
130-1030
Spindle taper
-
BT50
Max. spindle speed
rpm
6000
ATC style/station
-
60 (Chain)
X/Y/Z-axis rapid feed speed
m/min
45/45/45
X/Y/Z-axis guideway type
-
Linear
X/Y/Z-axis positioning accuracy
mm
0.01
X/Y/Z-axis repositioning accuracy
mm
0.006
B-axis positioning accuracy
"
10"
B-axis repositioning accuracy
"
5"
Main motor power
kw
15/22
X/Y/Z-axis feed motor torque
NM
30/30/30
B-axis feed motor torque
NM
12
APC servo motor torque
NM
8
Machine weigh
kg
11000
Machine weight
kg
15000
Overall dimension (LxWxH)
mm
6200×4800×3800
Positive Comments From Customers
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Company Introduction
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Factory Display：
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Text Introduction：
HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
