Specifications
Condition :
New
Spindle Taper :
BT-40
No. of Spindles :
3
Type :
VERTICAL
Dimension(L*W*H) :
2400x1900x2400
Weight (T) :
3.5 T
Table Size (mm) :
1000x420
CNC Control System :
GSK, FANUC, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
700
Table Travel (Y) (mm) :
450
Table Travel (Z) (mm) :
450
Positioning Accuracy (mm) :
±0.003
Repeatability (X/Y/Z) (mm) :
±0.003
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Spindle Motor Power(kW) :
7.5/11
Max. Table Load(kg) :
400 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
12
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
380V/50H
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
CNC Vertical Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining
Keywords :
Vertical Machine Center VMC
Product type :
Machining Center Cnc Mill Machine
CNC or Not :
CNC Systemn
Worktable size (LxW) :
1000x420mm
Longitudinal travel (X) :
700mm
Cross travel (Y) :
450mm
Vertical travel (Z) :
450mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Egypt, Canada, Turkey, Italy, Brazil, Peru, India, Morocco, Romania, South Africa, Malaysia, Australia
Core Components :
Motor
Rapid Feed Speed(m/min) :
48/48/48
Price :
$35,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Product Description

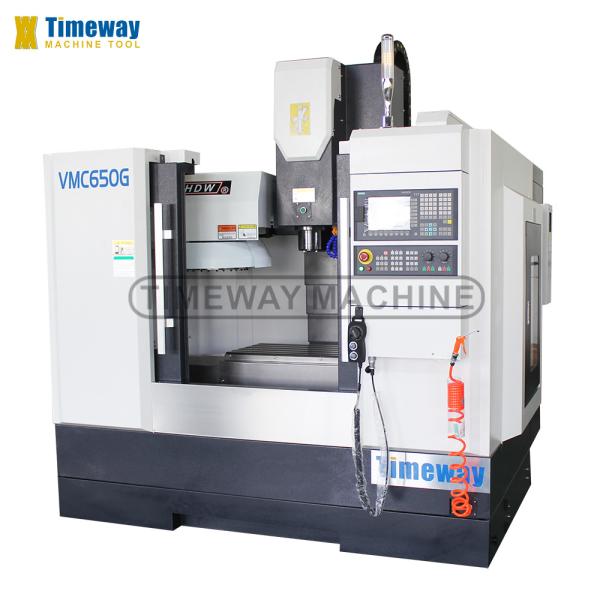

Vertical Machining Center VMC650G
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES:

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
Specification
Specification
Unit
VMC650G
Worktable size (LxW)
mm
1000×420
T-slot (No./width/pitch)
mm
5-18-80
Loading capacity
kg
400
Longitudinal travel (X)
mm
700
Cross travel (Y)
mm
450
Vertical travel (Z)
mm
450
Distance from spindle nose to table
mm
130-630
Distance from spindle center to column
mm
495
Spindle taper
-
BT-40
Spindle speed
rpm
8000
X/Y/Z-axis rapid feed speed
m/min
48/48/48
X/Y/Z-axis servo motor (FANUC)
-
β12/β12/β22
X/Y/Z-axis positioning accuracy
mm
±0.003/300
X/Y/Z-axis repositioning accuracy
mm
±0.003/300
Main motor power
kw
7.5/11
Air pressure source
kg/cm2
6-8
Power capacity
Kva
18
Tool magazine capacity
T
12 (Crousel)
Guideway type
-
Linear
Machine weight
kg
3500
Machine dimensions (LxWxH)
mm
2400×1900×2400
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Factory Display：
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Table Travel Y mm 450 Timeway VMC650G Vertical Machining Center X/Y/Z Linear Guideway
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
