0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Specifications
Condition :
New
Spindle Taper :
BT-50 (155)
No. of Spindles :
3
Type :
VERTICAL
Dimension(L*W*H) :
3820*2600*3100
Weight (T) :
10 T
Table Size (mm) :
1360x700
CNC Control System :
GSK, FANUC, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1300
Table Travel (Y) (mm) :
700
Table Travel (Z) (mm) :
700
Positioning Accuracy (mm) :
0.01
Repeatability (X/Y/Z) (mm) :
0.008
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
1200 kg
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
24
Key Selling Points :
Competitive Price
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
380V/50H
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
CNC Vertical Machining Center
Machine Type :
VMC CNC Milling Machine
Application :
Metal Machining
Keywords :
Vertical Machine Center VMC
Product type :
Machining Center Cnc Mill Machine
CNC or Not :
CNC Systemn
Processing :
Metal Cutting Cnc Milling Machine
Longitudinal travel (X) :
1300mm
Cross travel (Y) :
700mm
Vertical travel (Z) :
700mm
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Egypt, Canada, Turkey, Italy, Brazil, Peru, India, Romania, South Africa, Malaysia, Australia
Core Components :
Motor
Rapid Feed Speed(m/min) :
15/15/15
Price :
$36,600.00/sets 1-2 sets
MOQ :
1 set
Description
Summary
This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
X, Y, Z rails are quenching - plastic sliding guide rail pair;
X, Y, Z rails adopt stainless steel telescopic cover;
Standard with belt driven spindle, optional for direct driven spindle, gear head for all models.
Product Description

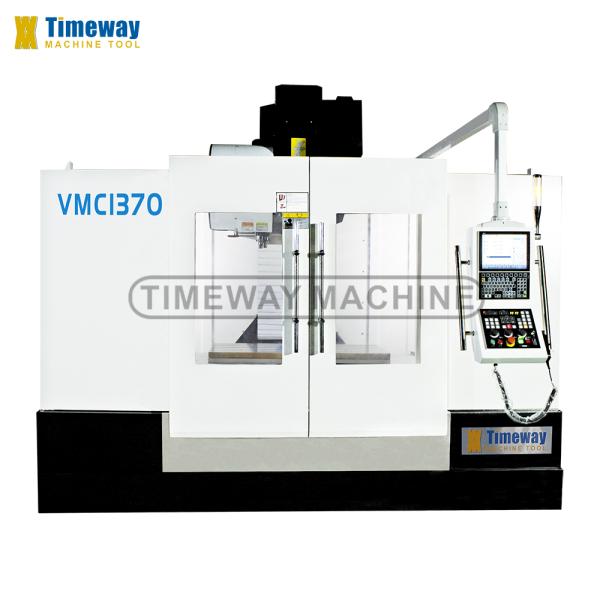

Vertical Machining Center VMC1370
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Specification
Specification
Unit
VMC1370
Worktable size (LxW)
mm
1360×700
T-slot (No./width/pitch)
mm
5-18-152.5
Loading capacity
kg
1200
Longitudinal travel (X)
mm
1300
Cross travel (Y)
mm
700
Vertical travel (Z)
mm
700
Distance from spindle nose to table
mm
140-840
Distance from spindle center to column
mm
785
Spindle taper
-
BT-50 (155)
Spindle speed
rpm
6000
X/Y/Z-axis rapid feed speed
m/min
15/15/15
X/Y/Z-axis servo motor (FANUC)
-
β22/β22/β30
X/Y/Z-axis positioning accuracy
mm
±0.01
X/Y/Z-axis repositioning accuracy
mm
±0.008
Main motor power
kw
15/18.5
Air pressure source
kg/cm2
6-8
Power capacity
Kva
30
Tool magazine capacity
T
24 (Disc)
Guideway type
-
Sliding
Machine weight
kg
10000
Machine dimensions (LxWxH)
mm
3820×2600×3100
One-Stop Shopping
You can click on the picture to view the products you are interested in
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Factory Display：
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
0 6000 r.p.m Spindle Speed VMC 1370 Vertical CNC Machining Center for Metal Milling
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
