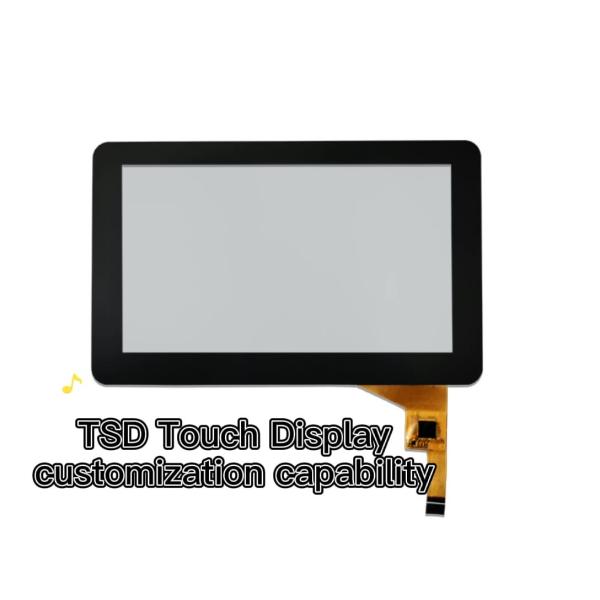

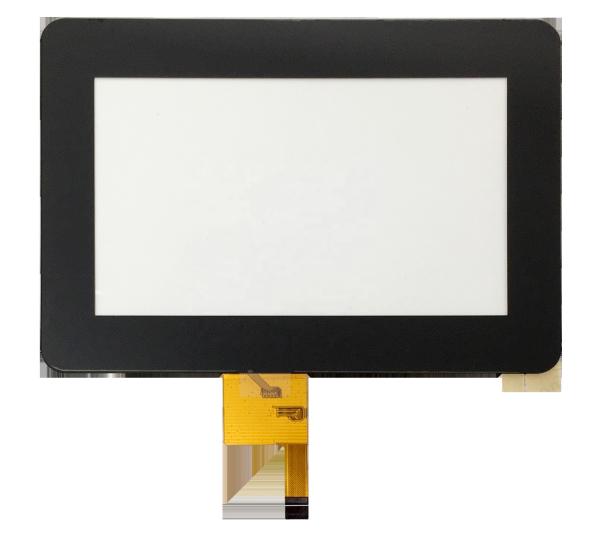

TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Specifications
Place of Origin :
Guangdong, China
Model Number :
TSC043F001
Brand Name :
TSD
Packaging Details :
Touch screen I2C interface 4.3'' lcd 480x272 tft lcd
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
P'cap, CTP
Display Size :
4.3inch
Resolution :
480x272
Active Area :
122.44x83.86mm
Outline Dimension :
123.04x84.46x1.43mm
Driver IC :
FT5316DME
Interface Type :
I2C
ITO GLASS :
0.55mm
Lens :
0.7mm
Operating voltage :
2.8-3.3V
Transmittance :
85%
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
Touch screen I2C interface 4.3'' lcd 480x272 tft lcd
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Item
Specification
Display Mode
4.3‘’'P-cap
Part NO.
TSC043F001
Resolution
480x272
Outline Size
123.04x84.46x1.43mm
Active Area
122.44x83.86mm
Interface
I2C
Driver IC
FT5316DME
Voltage
2.8-3.3V
Transmittance
85%
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Application
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Packing & Delivery
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
Customer Photos
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
TFT Projected Capacitive Touch Screen 480x272 Resolution FT5316DME
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
