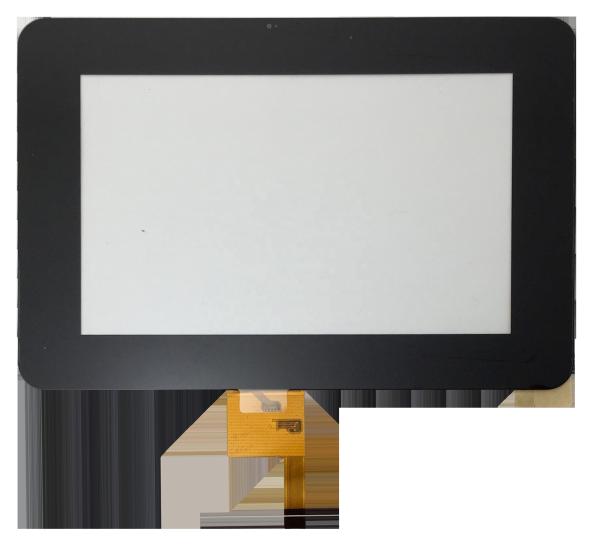

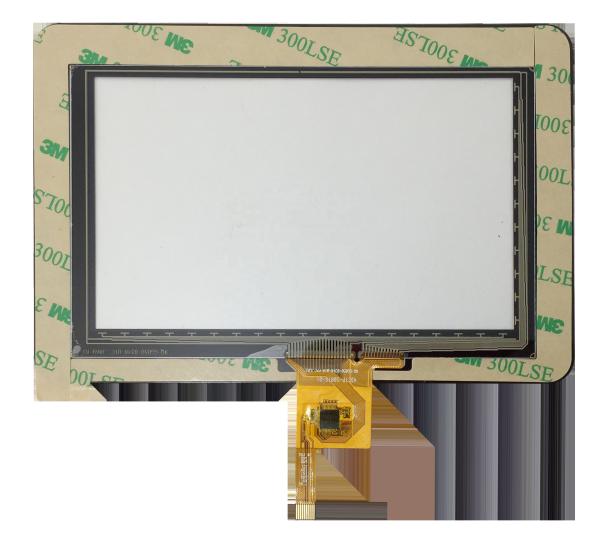

G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
G+G Structure 5'' Touch Screen LCD Module I2C Interface LCD Module
Packed in the anti-static bag each, a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
P'cap, P'cap
Display Size :
5.0 inch
Supplier Type :
Manufacturer
Resolution :
800x480
Surface Hardness :
6H
Outline Dimension :
140.7x93.83x1.43mm
Active Area :
109.04x65.55mm
Cover glass :
0.7mm
Sensor glass :
0.55mm
Voltage :
2.8-3.6V
Structure :
G+G
Interface :
I2C
Port :
Shenzhen/Hong Kong
Description
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure 5'' Touch Screen LCD Module I2C Interface LCD Module
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Item
Specification
Display Mode
Capacitive touch screen
Part NO.
CTP-TSC050F001
Resolution
800x480
Outline Size
140.07x93.83x1.43mm
Active Area(WxH)
109.04x65.55mm
Cover glass
0.7mm
Sensor glass
0.55mm
Surface Hardness
6H
Interface
I2C
Operating Voltage
2.8-3.6V
Operating Temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
About us
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Application
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Customer Photos
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
Packing & Delivery
G+G Structure PCAP Touch Screen , I2C 5 Inch Hdmi Display 3.6V
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
