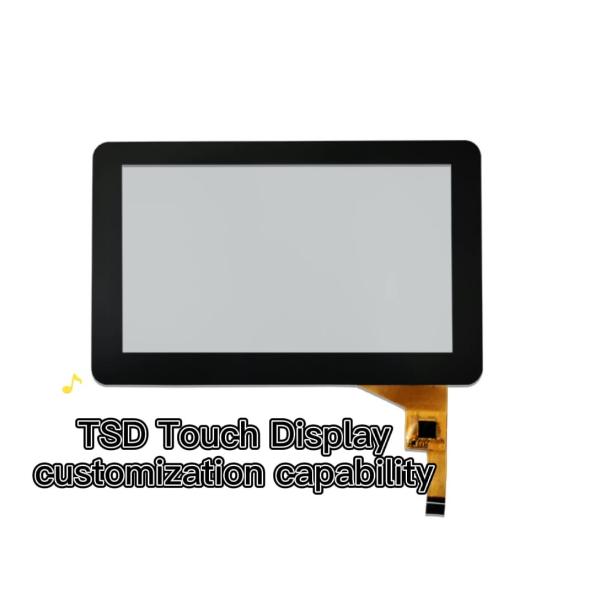

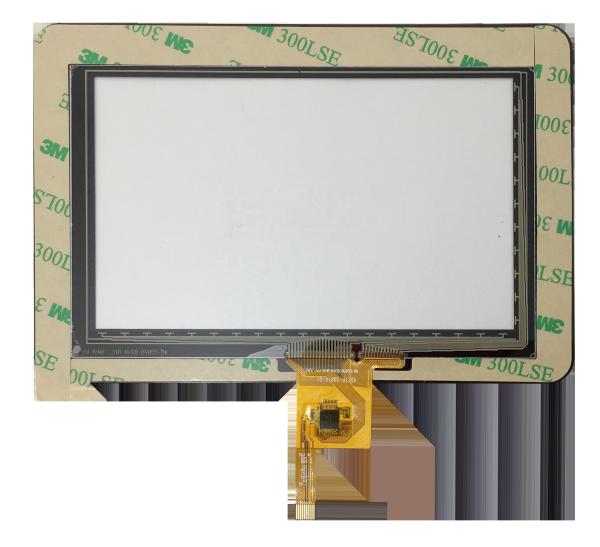

5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Specifications
Place of Origin :
Guangdong, China
Model Number :
TSC050F001
Brand Name :
TSD
Packaging Details :
800x480 5'' capacitive touch lcd panel i2c interface tft lcd panel
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
P'cap
Display Size :
5.0inch
Supplier Type :
Manufacturer
Resolution :
800x480
Interface Type :
I2C
Outline Dimension :
140.7x93.83x1.43mm
Lens :
0.7mm
Viewing Area :
109.04x65.55mm
Operating voltage :
2.8-3.6V
Driver IC :
FT5336
Structure :
G+G
ITO GLASS :
0.55mm
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
800x480 5'' capacitive touch lcd panel i2c interface tft lcd panel
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Item
Specification
Display Mode
5.0’'P-cap
Part NO.
TSC050F001
Resolution
800x480
Outline Size
140.7x93.83x1.43mm
Viewing Area
109.04x68.55mm
Interface
I2C
Driver IC
FT5336
Voltage
2.8-3.6V
Transmittance
85%
Surface hardness
6H
Structure
G+G
Operating Temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
About us
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Application
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Packing & Delivery
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
Customer Photos
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
5in PCAP Touch Screen , 800x480 Lcd Display 0.7mm Lens FT5336 Driver
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
