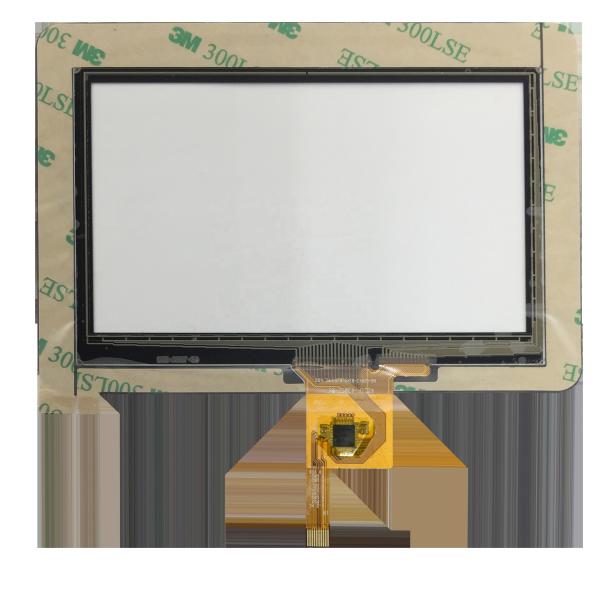

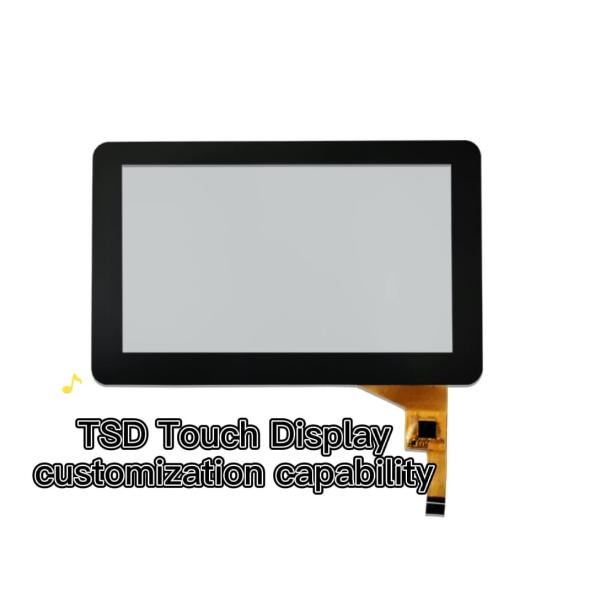

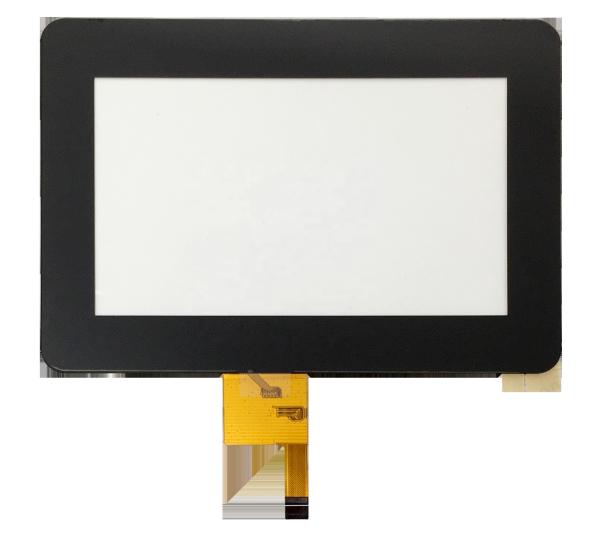

4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Specifications
Place of Origin :
Guangdong, China
Model Number :
TSC043F001
Brand Name :
TSD
Packaging Details :
4.3'' lcd capacitive touch screen 480x272 resolution I2C interface
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Display Size :
4.3inch
Type :
CTP
Resolution :
480x272
Active Area :
122.44x83.86mm
Outline Dimension :
123.04x84.46x1.43mm
Interface Type :
I2C
Driver IC :
FT5316DME
Lens :
0.7mm
ITO GLASS :
0.55mm
Transmittance :
85%
Operating voltage :
2.8-3.3V
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
4.3'' lcd capacitive touch screen 480x272 resolution I2C interface
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Item
Specification
Display Mode
4.3‘’'P-cap
Part NO.
TSC043F001
Resolution
480x272
Outline Size
123.04x84.46x1.43mm
Active Area
122.44x83.86mm
Interface
I2C
Driver IC
FT5316DME
Voltage
2.8-3.3V
Transmittance
85%
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Application
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Packing & Delivery
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
Customer Photos
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
4.3 Inch PCAP Touch Screen 480x272 Resolution I2C Interface 85% Transmittance
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
