Key Selling Points

Ultrawide Form Factor & High Resolution

Aspect Ratio: 8:3 (1920×720) provides an elongated display ideal for dashboard layouts and data-dense interfaces.

Pixel Density: ~167 PPI with RGB vertical stripe arrangement ensures sharp text/graphics for critical information.

This 12.3-inch TFT LCD display control module showcases refinement, seamlessly integrating an LCD screen, an optional capacitive touch screen, and an HDMI driver board. Its advantage lies in the ability to perfectly render HDMI digital signals from a PC onto its stunning 1920-720 LCD canvas. It is designed as a custom single-channel HDMI display driver board with built-in LED driver function, providing a visual effect with a maximum resolution of 1920x720/60HZ.

Define outstanding functionality
Support for multi-functional LVDS screen interface signal output. · Multi-language OSD options to meet different preferences. Seamless HDMI signal input support. Enhanced audio output function. · Convenient ODS menu button support. It is powered by a USB 5V output.
Product highlights
The T123WF01-1920720A-CT TFT LCD module has a diagonal length of 12.3 inches and features a vivid 1920xRGBx720 full-color strip-shaped TFT module. Supported by the LVDS interface, the T123WF01-1920720A-CT model has dimensions of 322.63142.1116.5 mm and an effective area size of 292.63×110.11 mm. This LCD display module has a surface brightness of up to 850 CD /m ² (nits) and can operate normally within a temperature range of -30℃ to +85℃. Rich customization options are available, allowing you to integrate resistive or capacitive touch screens into this 12.3-inch TFT LCD masterpiece.

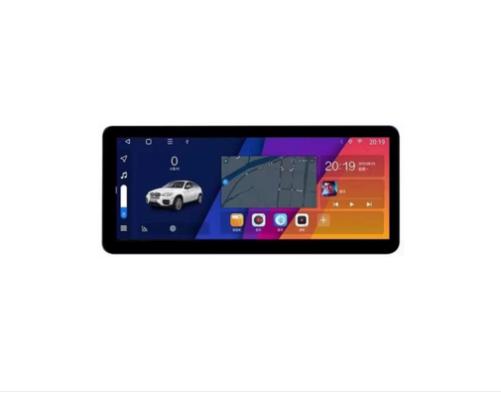

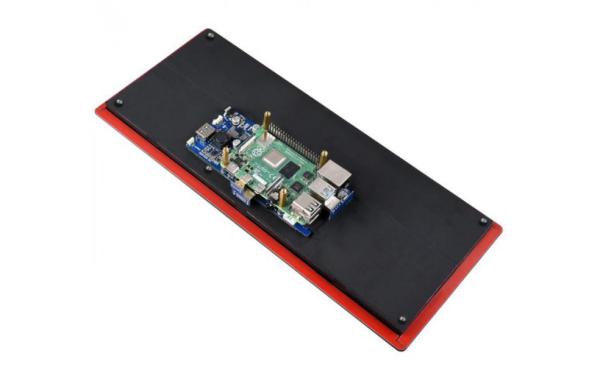

12.3-inch automotive-grade bar LCD display with CTP and HDMI interfaces, supporting Raspberry Pi, Windows and Jetson Nano graphics

FAQ

Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.

Q: What is your warranty?
A: We provide one year warranty.

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our height quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'

request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.

Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app for you download.If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales
directly."
