3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board
Specifications
Brand Name :
ESEN
Model Number :
T034-30MB-A1
Certification :
ISO9001/ISO14001
Place of Origin :
Shenzhen China
MOQ :
No MOQ
Price :
can be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
300K/mth
Delivery Time :
6~14 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
LCD size :
3.4 inch
Display Mode :
Normally Black
Resolution :
800(RGB)x800
Pixel pitch :
36.5(H) x 109.5(V)
Pixel Arrangement :
RGB Vertical Stripe
Viewing direction :
Free

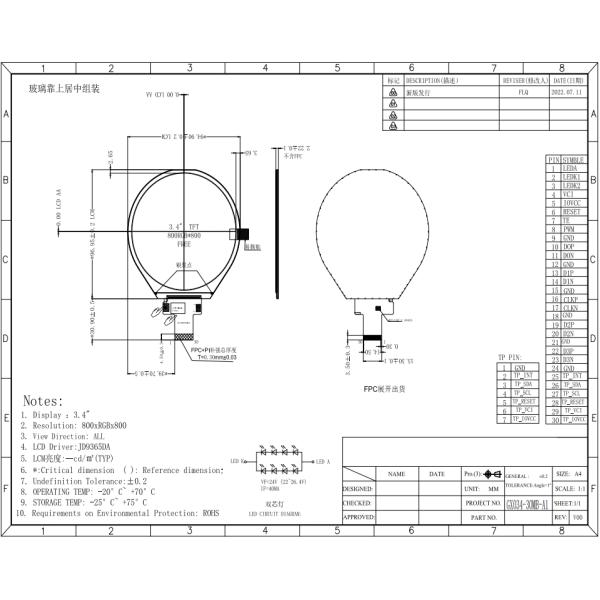

Module outline dimension :
94.9 (H)*96.95 (V)*2.22(D)
LCD AA :
87.6 (H)* 87.6 (V)
Colors :
16.7M
Surface Lumiannce :
400/cd
Driver IC :
JD9365DA
Interface :
MIPI
Backlight :
White LED
Operating Temperature :
-20℃~ +70℃
Storage Temperature :
-25℃~ +75℃
Custom Service :
FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Description

3.4 inch 800x800 IPS tft lcd circular instruments screen round display panel Video HDMI input board

Product Description:
3.4 inch ips industrial Instruments Meters lcd round PACP touch screen circular display HDMI board
General Features:
Panel Size: 3.4 inch Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×800 Pixel Format: RGB Vertical Stripe
Display Area: 87.6(W)×87.6(H) mm Bezel Opening: 88.6(W)×88.6(H) mm
Outline Size: 99(W)×96.6(H) mm Surface: Hard coating (7H)
Brightness: 400 cd/m² (Typ.) Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Display Mode: SFT, Normally Black, Transmissive
Best View on: Symmetry Response Time: 25 (Typ.)(Tr+Td)
Display Colors: 16.7M
Frequency: - Touch Screen: Optional
Application: Industrial, Instruments & Meters, Round Display
Signal Interface: MIPI (3 data lanes) , 39 pins , FPC
Input Voltage: 1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)
Environment: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Provide Turnkey LCD Display Project Solutions!!!
(Sizes, Resolution, Brightness, Materials, Shapes, Interfaces, Touch etc.)

3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board

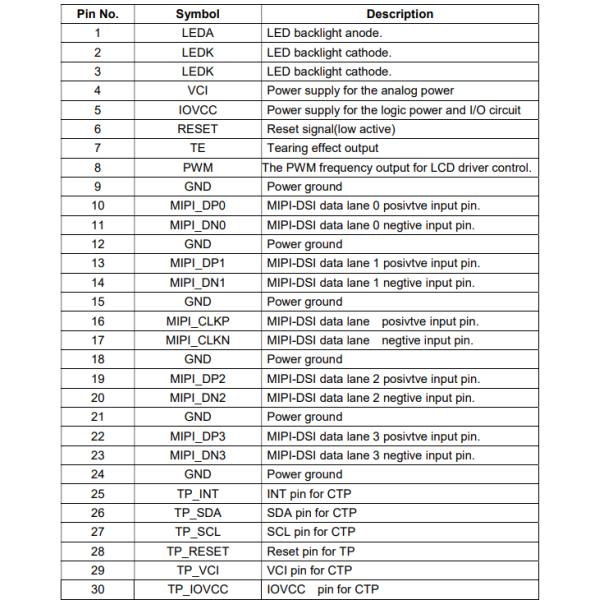

PINTERFACE SIGNAL

3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board

3.4'' 800x800 IPS TFT LCD Circular Instrument Screen Round Video HDMI Input Board

FAQ:

1.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
2. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
3. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.
4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
