26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
POE PORT :
Port1-24 can support POE @ IEEE802.3af/at
Network Ports :
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T
POE Agreement :
IEEE802.3af/at international standard
Forwarding Mode :
Store and Forward (Full wire speed)
Switch Capacity :
52Gbps
Weight :
<4.0kg / <4.8kg
Warranty :
3 years, lifetime maintenance
Working Temperature :
-20~+55°C;5%~90% RH Non condensing
Storage Temperature :
-40~+75°C;5%~95% RH Non condensing
Dimensions (L*W*H) :
440*290*44.5mm
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
26-Port Full Gigabit PoE Fiber Switch
(DF-2F-24GP)
Product Overview
The DF-4F4G-24GP is equipped with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces, 4 10/100/1000BASE-T ports RJ45 combo with 4 extra 1000BASE-X SFP slots with inner power system. With a total PoE power budget of up to 250/300/400 watts and non-blocking data switching performance, the DF-4F4F-24GP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.
The PoE in-line power following the IEEE 802.3at/af standard makes the DF-4F4F-24GP able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 400 watts. The DF-4F4F-24P provides more flexibility in power requirement for all kinds of PDs with affordable installation costs. Unmanaged model, plug and play, no configuration, easy to use.
Product Features
  • Full gigabit access, gigabit SFP port uplink
  • All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
  • Support non-blocking wire speed forwarding.
  • Support full duplex based on IEEE802.3x and half duplex based on backpressure.
  • Intelligent PoE power supply
  • All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
  • The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of
    the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
  • 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet the needs of PoE power supply in security monitoring, teleconferencing systems, and wireless coverage.
  • Conforms to the IEEE 802.3af/at PoE power supply standard, automatically recognizes PoE.
  • Standard 1U rack design, suitable for rack installation mode;
  • The maximum POE output power of the DF-2F-24GP entire device reaches 400W(at-600W), and the maximum POE output power of a single port is 30W.
The equipment is stable and reliable
  • The equipment fully meets the requirements of CCC; CE, FCC and RoHS safety regulations,and is safe and reliable.
  • ONV self-developed power supply, high redundancy design, provides long-term stable PoE power output.
Easy to operate
  • The user can easily understand the working status of the device through the power indicator (PWR), port status indicator, and PoE operation indicator.
  • Plug and play, no configuration, simple and convenient.

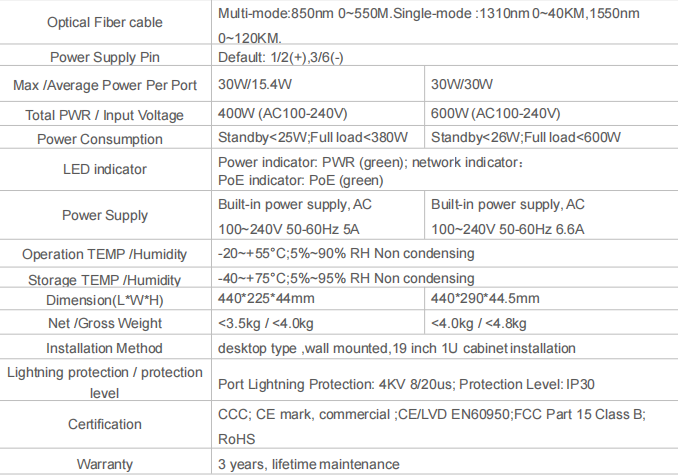

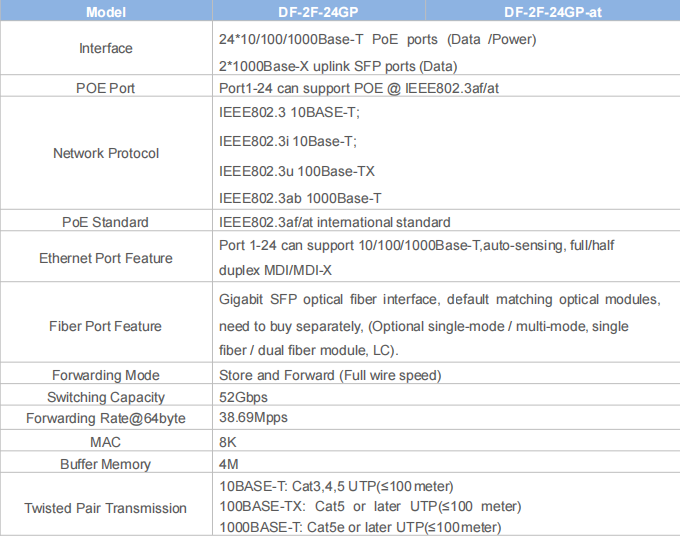

Technical Specifications

26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP) 26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)

Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6
cable for longest distance needed.

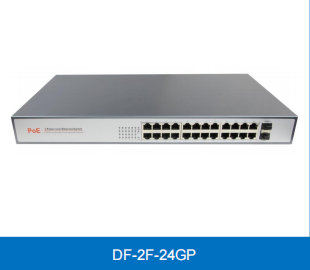

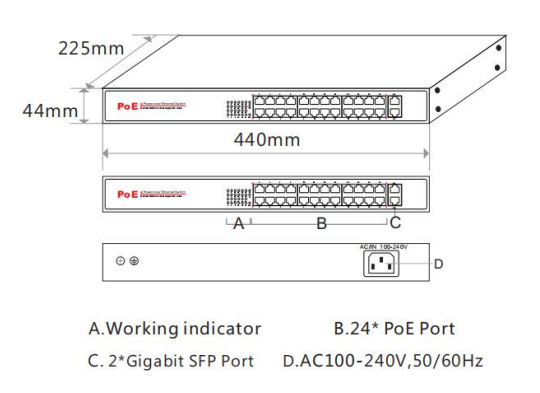

Product Images
26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP) 26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
