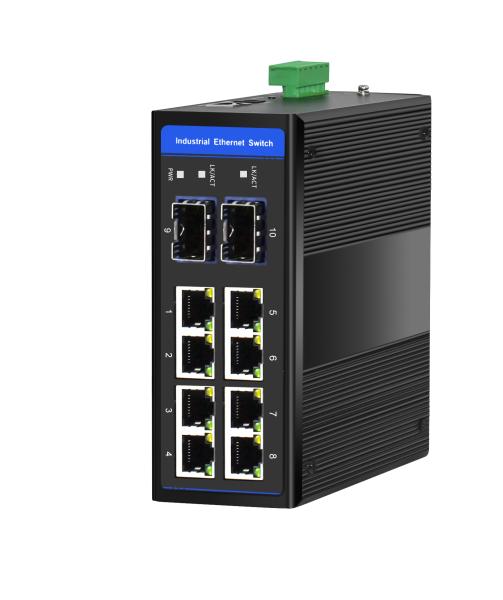

8-Port Industrial Gigabit POE Switch with 2 SFP Slots DIN-Rail Mount
8-Port Industrial Gigabit POE Switch with 2 SFP Slots DIN-Rail Mount
8-Port Industrial Gigabit POE Switch with 2 SFP Slots DIN-Rail Mount
8-Port Industrial Gigabit POE Switch with 2 SFP Slots DIN-Rail Mount
Specifications
Brand Name :
TAKFLY/OEM
Model Number :
DF-2FG-8GPI
Certification :
CE, ROHS, REACH, FCC
Place of Origin :
China
MOQ :
1
Price :
56.57USD
Payment Terms :
,T/T,Western Union
Supply Ability :
5000 piece/week
Delivery Time :
2~3 days
Packaging Details :
Carton box
Interface :
8-Port RJ-45 auto-MDI/MDI-X; 2 SFP Slot
Power Supply :
48 to 57V DC redundant power
Shell :
IP40 aluminum housing
Installation :
DIN-Rail
Weight :
0.56kg
Size :
143 x 101 x 44mm
Warranty :
1-year replacement with new item; 3-years for main parts
Description
DF-2FG-8GPI an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment.
The DF-2FG-8GPI provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The DF-2FG-8GPI is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Features

  • 8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF
  • 2-port 1000Base-Fx interface SC/FC/ST/SFP
  • Multi-Mode up to 2km
  • Single-Mode up to 20km/40km/60km/80km
  • 48V to 57V DC, redundant power input
  • -40℃ to 85℃ operating temperature
  • IP40 aluminum housing
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability
  • DIN-rail design

Specifications
Interface
8-Port RJ-45 auto-MDI/MDI-X
2 SFP Slot
Network Protocols
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;
PoE Specification
PoE Standard: IEEE802.3af/ IEEE802.3at
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
PoE ports: 1~8 port support PoE
100BASE-TX: Cat5 or later UTP(≤100 meter)
Output Voltage: DC48
1000BASE-TX: Cat6 or later UTP(≤100 meter)
LED Indicator
 Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow
Power Supply
48 to 57V DC redundant power
Installation
DIN-Rail
Warranty
1-year replacement with new item; 3-years for main parts
