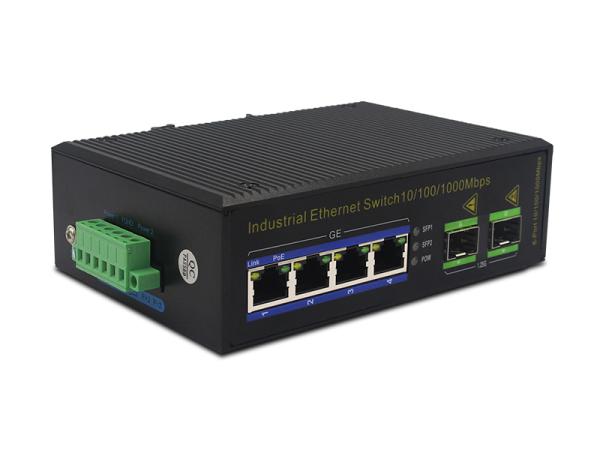

Industrial POE Ethernet Switch 4 Port Gigabit 2 SFP DIN-Rail
Industrial POE Ethernet Switch 4 Port Gigabit 2 SFP DIN-Rail
Industrial POE Ethernet Switch 4 Port Gigabit 2 SFP DIN-Rail
Industrial POE Ethernet Switch 4 Port Gigabit 2 SFP DIN-Rail
Specifications
Brand Name :
TAKFLY/OEM
Model Number :
DF-2FG-4GPI
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
1
Price :
30.85USD
Payment Terms :
,T/T,Western Union
Supply Ability :
5000 piece/week
Delivery Time :
2~3 days
Packaging Details :
Carton box
Interface :
4x10/100/1000Base-T POE port + 2x 1000Mbps SFP Slot
Power Supply :
Input Voltage: DC48～57V/Terminal block
Shell :
IP40 protect grade, metal shell
Installation :
DIN-Rail
Weight :
0.56kg
Size :
15.3×11.5×4.7cm
Warranty :
5-years
Description
Industrial PoE switch, 4 Port 10/100/1000Mbps PoE ports and 2 port 1000Mbps SFP Slot, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power


Features

  • 4 Port 10/100/1000Mbps POE, 2 port 1000Mbps SFP
  • 4 Port support PoE, supports IEEE 802.3af(15.4W), IEEE802.3at PoE (30W)
  • Automatic MAC address learning and aging
  • Automatically support IGMP(Multicasting)
  • 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100/1000Mbps-Full/Half-duplex
  • Supports DIN-Rail installation
  • -40℃~+85℃ operating temperature range

Specifications

Interface
4x10/100/1000Base-T POE port + 2x 1000Mbps SFP Slot
Network Protocols
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af,
IEEE802.3at
PoE Specification
PoE Standard: IEEE802.3af/ IEEE802.3at
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
PoE ports: 4 port support PoE
100BASE-TX: Cat5 or later UTP(≤100 meter)
Output Voltage: DC48V
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media
Multi-mode: 2KM;
Single-mode: 20/40/60/80KM
Power Supply
Input Voltage: DC48～57V /Terminal block
Installation
DIN-Rail
Warranty
5 years
