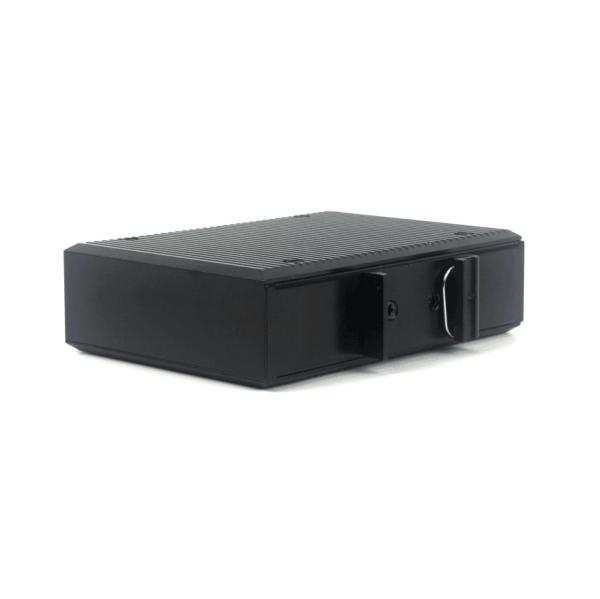

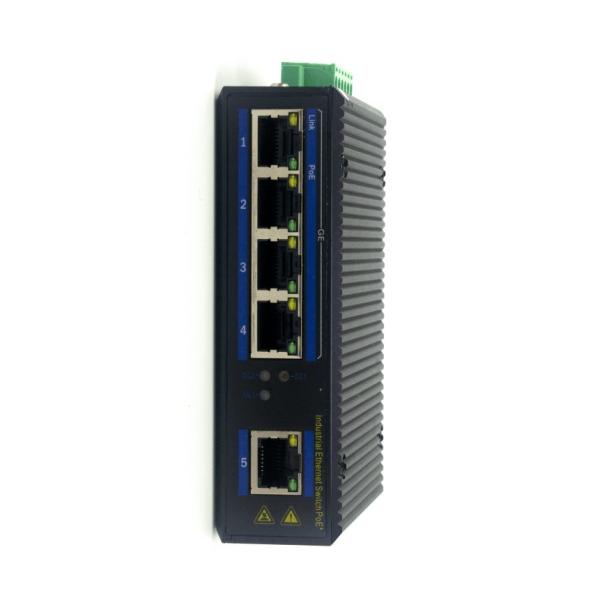

Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Industrial POE Switch 5-Port Gigabit DIN-Rail Mount IP40
Specifications
Brand Name :
TAKFLY/OEM
Model Number :
DF-1G-4GPI
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
1
Price :
23.14USD
Payment Terms :
,T/T,Western Union
Supply Ability :
5000 piece/week
Delivery Time :
2~3 days
Packaging Details :
Carton box
Interface :
4x10/100/1000Base-T POE port + 1 port 1000Base Ethernet Uplink
Power Supply :
Input Voltage: DC48～57V/Terminal block
Shell :
IP40 protect grade, metal shell
Installation :
DIN-Rail or wall mount
Weight :
0.36kg
Size :
128x86x34mm
Warranty :
5-years
Description
Industrial PoE switch, 4 Port 10/100/1000Mbps PoE ports + 1 ports ethernet uplink , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also choosesindustry-standard types of power


Features

  • 5 Port 10/100/1000Mbps
  • 1-4 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
  • Automatic MAC address learning and aging
  • Automatically support IGMP (Multicasting)
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100/1000Mbps-Full/Half-duplex
  • Supports DIN-Rail and Wall mount installation
  • -40℃~+85℃ operating temperature range
  • 5-Year Warranty
Specifications

Interface
4x10/100/1000Base-T POE port + 1 port 1000Base Ethernet Uplink
Network Protocols
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base- TX/FX;
IEEE802.3ab 1000Base- T; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at
PoE Specification
PoE Standard: IEEE802.3af/ IEEE802.3at
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
PoE ports: 1~4 port support PoE
100BASE-TX: Cat5 or later UTP(≤100 meter)
Output Voltage: DC48V
1000BASE-TX: Cat6 or later UTP(≤100 meter)
LED Indicators
Power: PWR; Link; PoE; Link/Act
Power Supply
Input Voltage: DC48～57V /Terminal block
Installation
 DIN-Rail or Wall mount
Warranty
5 years
