DF-1.25G-16P-2E-2F Product Description
DF-1.25G-16P-2E-2F Product Description
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
DF-1.25G-16P-2E-2F Product Description
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
DF-1.25G-16P-2E-2F Product Description
Power Consumption :
The device<20W, POEpower supply <350W
Network Ports :
1 ～ 16 Ports: 10/100/1000Mbps Ethernet port, adaptive control UPLINK Ethernet port: 10/100/1000Mbps Ethernet port,Uplink SFP:1000Mbp
POE Agreement :
IEEE802.3 af/at standards
PoE Power Supply Mode :
End-span method
Switch Capacity :
40Gbps
Weight :
4.5kg
Reliability :
＞50000h
Working Temperature :
-10℃~55℃
Storage Temperature :
-40℃~85℃
Dimensions (L*W*H) :
442mm×224mm×44.5mm
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
DF-1.25G-16P-2E-2F Product Description
Product Overview
DF-1.25G-16P-2E-2F is a 20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 Uplink ports, 2 SFP Gigabit Uplink Optical Ports, port 1 to port 16 supports PoE IEEE 802.3at international standard, each port power is 30W. Total power is 350W.

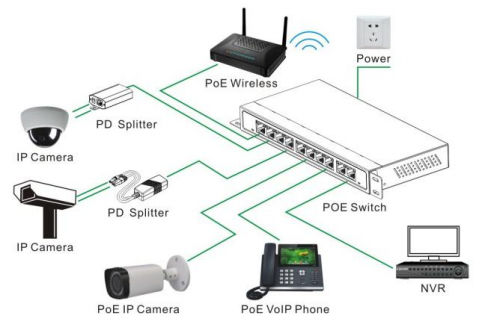

This POE network switch can meet customer’s general demands. POE network switch with POE function, designed for high-definition network camera’s internet access. It provides 16 1000Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
Product Features
  • 20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 uplink, 2 SFP Gigabit Uplink Optical Ports;
  • Supply power to wireless access points AP and network IP surveillance cameras;
  • Port 1 to Port 16 supports IEEE802.3at power (each port maximum power is 30W);
  • 16x 10/100/1000 Mbps ports + 2RJ45 + 2x SFP gigabit optical uplink ports;
  • Compatible with IEEE 802.3 10i and IEEE 802.3u standard;
  • The packet forwarding speed is 1.488Mbps of one wire-speed port;
  • Port features with auto-flip(Auto MDI/MDIX);
  • Network port comes with lighting-proof;
  • All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed;
  • Standard 1U rack design, suitable for rack installation mode;
  • Automatic adjustment, plug and play, no need software and protocol conversion.
Highlight
  • No Frame Loss IP Data Transmission
  • PoE+ Standard 250m in CCTV Mode
  • 10 KB Jumbo frames support
  • Few video time delay
  • 4KV Lightning Protection

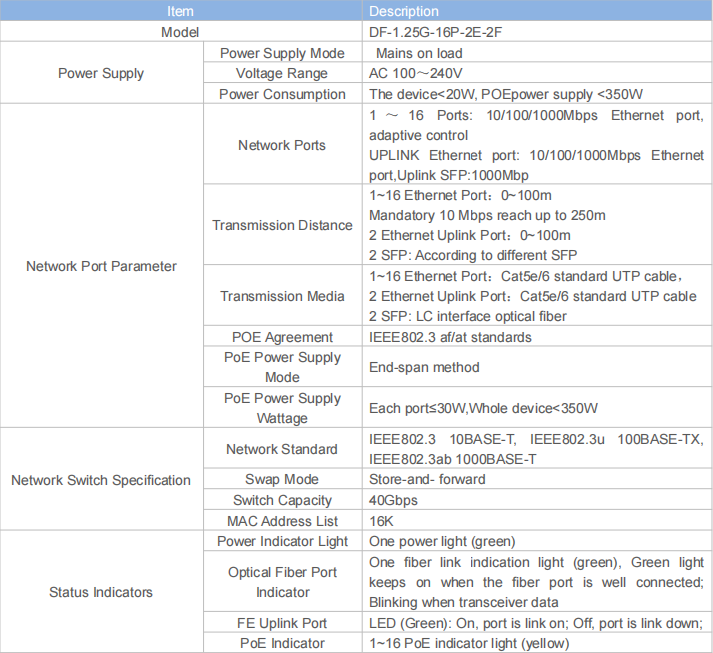

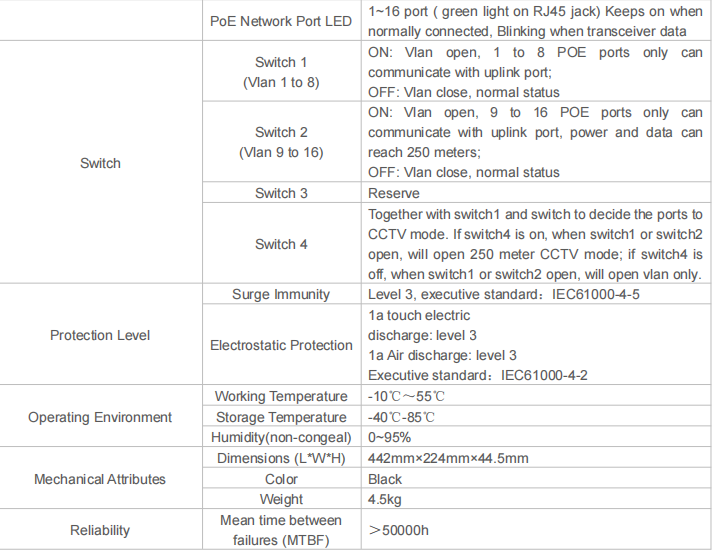

Technical Specifications

DF-1.25G-16P-2E-2F Product Description DF-1.25G-16P-2E-2F Product Description

Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6
cable for longest distance needed.

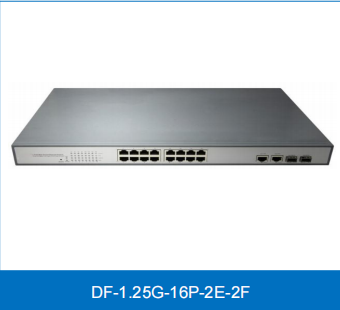

Product Images
DF-1.25G-16P-2E-2F Product Description DF-1.25G-16P-2E-2F Product Description
