DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Network Medium :
UTP Cat.5 or more(≤100 meter) Transmission Bandwidth: 10/100/1000M
Network Protocol :
IEEE 802.3af DTE Power via MDI
Connector :
1* PoE RJ45 Input Port, 1* RJ45 Output Port, 1* DC Power Input Port (5.5x2.1mm)
Output Current :
1.1A
Output Power :
13W
Input Voltage :
37-57V/DC
Working Temperature :
-20~+55°C;
Storage Temperature :
-20~+75°C;
Storage Humidity :
10% ~ 95%, non-condensing;
Warranty :
1 years, lifetime maintenance
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
DF-PS-G
10/100/1000M PoE Splitter Cable (13W)
Product Overview

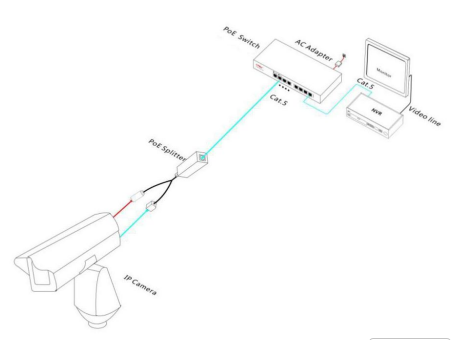

10/100/1000M PoE Splitter Cable is a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.
With transformer isolated design for circuit input stage and output stage of the DF-PS-G power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem.
Meeting the standard of IEEE802.3af. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.
Key Features
  • 1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC(5.5*2.1mm) male output port
  • 1* 10/100/1000Mbps RJ45 port
  • Support IEEE802.3af
  • PoE Input Voltage: 44-57V
  • Output voltage: 12V(Default)
  • Output power: 13W
  • Circuit protection to protect the connected device
  • Top-quality design, stable and reliable

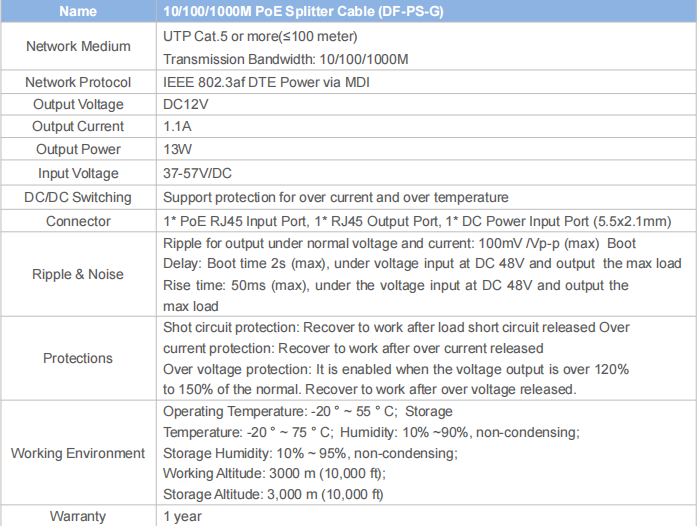

Technical Specifications
DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
Note: Product specifications are subject to change without prior notice. For optimal transmission distance, we recommend using standard Cat5e/6 cables.

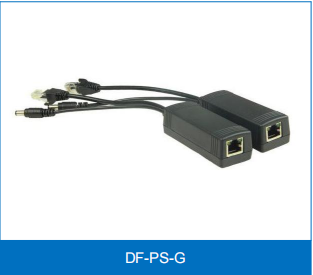

Product Images
