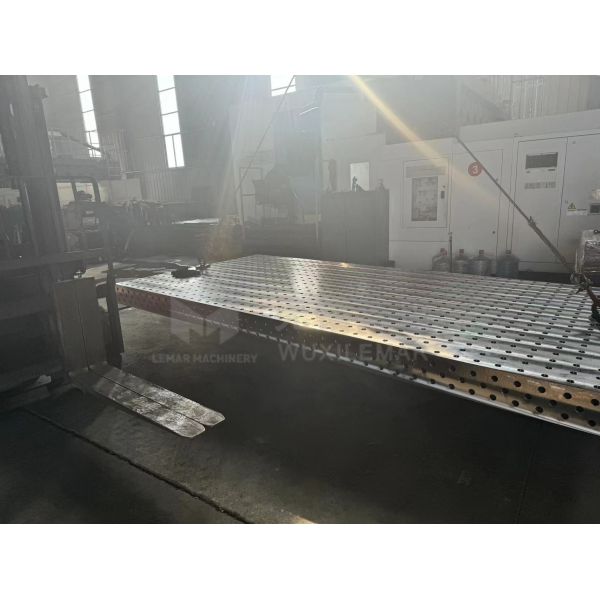

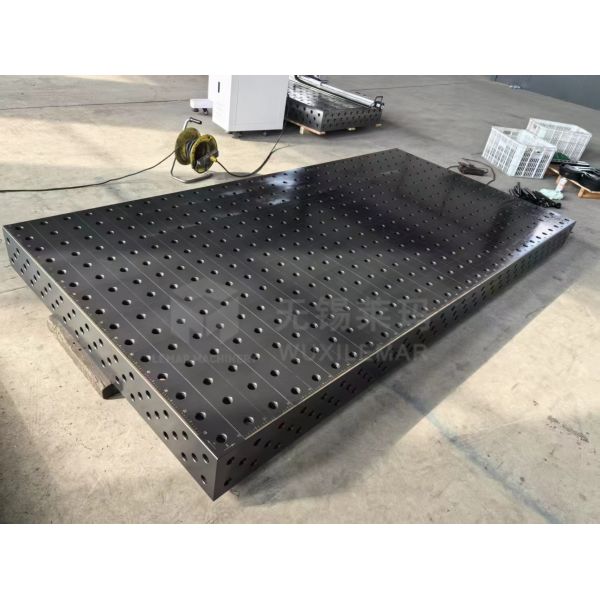

Steel D28 3D Welding Table for Professional Welding Solutions Use

The Steel D28 3D Welding Table is a high-precision, modular, heavy-duty flexible workholding platform designed for professional welding solutions. Featuring a standard D28 (28mm diameter) modular hole pattern, it enables rapid positioning, clamping, and welding of workpieces in the X/Y/Z three-dimensional space, serving as a mainstream industrial-grade solution to replace traditional dedicated fixtures.

• High precision positioning: dual precision of hole system and fixture, repeated positioning ± 0.02mm, ensuring consistency of welding dimensions, with a one-time pass rate of ≥ 99%.
• Super Heavy Duty: Single unit weighing over 5 tons, infinitely expandable after splicing, suitable for heavy-duty workpieces such as excavator arms, ship sections, wind turbine towers, etc.
• Ultimate flexibility: It takes 10-30 minutes to complete the tooling change, and a set of platforms can adapt to all workpieces, replacing traditional specialized fixtures, reducing costs by 90% and shortening cycles by 70%.
• Efficient production capacity: 3D clamping+parallel operation of multiple workstations, increasing production capacity by 30%~50% and reducing labor costs by 40%.
• Durable and low maintenance: tabletop quenching/nitriding, anti welding slag, wear-resistant; The service life is 10-15 years, and the annual maintenance cost is less than 5%.
• Flexible expansion: Five face system+splicing design, can be connected to robots, positioners, dust removal systems, and build automated welding workstations.

• Automation upgrade: Integrated pneumatic/hydraulic fixture system, combined with PLC control, to achieve one click clamping/loosening of workpieces, suitable for batch production line; Can connect with industrial robots, welding positioners, and build unmanned welding workstations.
• Mobile function customization: equipped with a heavy-duty hydraulic lifting system, the table height can be adjusted between 700-1200mm, suitable for operators of different heights or multi station docking needs; Configure traction hooks for convenient transportation in large countertop workshops.
• Customization of auxiliary functions: T-shaped slots are added to the countertop, compatible with traditional T-shaped fixtures, to meet the compatibility needs of old customers' equipment; Install tool hanging boards and drawer style storage layers to achieve integrated storage of fixtures and tools.

• Daily cleaning: After welding, use a dedicated wire brush and through-hole needle to clean the welding slag in the hole system and keep the hole unobstructed; Wipe the countertop with rust inhibitor, and wipe daily in humid environments.
• Fixture maintenance: Add lithium based grease to the moving parts of the fixture every week to prevent sticking; When storing fixtures, they should be classified and placed in a tool cart to avoid collision and deformation.
• Regular calibration: Every 6 months, use a level and dial gauge to check the flatness of the tabletop. If there is any slight deformation, calibrate it by adjusting the foot cup; Check the tightening of splicing bolts annually and replace aging components in a timely manner.
• Quick troubleshooting: The Steel D28 3D Welding Table for Professional Welding Solutions Use has slight scratches that do not require repair (the nitriding layer has high hardness and does not affect accuracy); Rust in the pore system can be wiped with rust remover, and sanding with sandpaper is prohibited.
