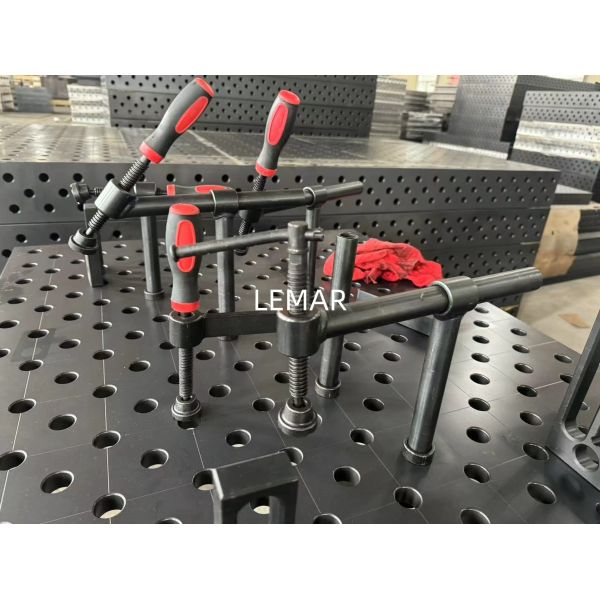

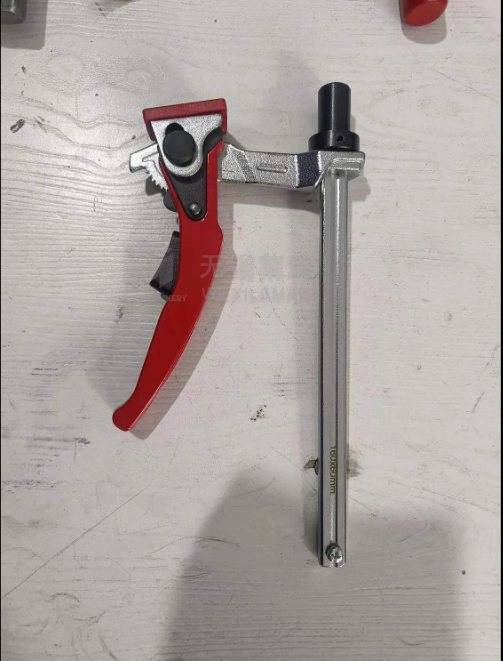

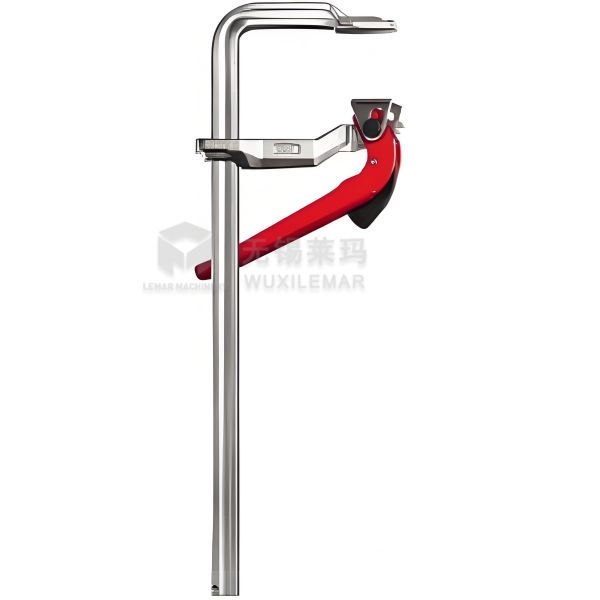

200x60mm Industrial Strength Ratchet F Clamp

The 200×60mm industrial-grade ratchet F-clamp is a high-strength, quick-clamping tool designed specifically for heavy-duty industrial applications.

Core Design Features

• Single-handed sleeve operation: No tools required, clamping/releasing can be done with one hand.
• Quick adjustment: Pull the slider to quickly adjust the approximate position.
• Fine-tuning and locking: Precise, incremental clamping is achieved through a ratchet mechanism.
• Anti-accidental release: Built-in safety lock prevents accidental loosening during operation.

Core product advantages

1. Efficient Clamping, Adapting to Flexible Production
   The ratchet-type quick adjustment design reduces clamping time by more than 60% compared to traditional screw F-clamps. Combined with the modular structure of the 3D welding platform, it perfectly adapts to multi-variety, small-batch production scenarios.
2. Industrial-Grade Clamping Force, Ensuring Welding Stability
   The clamping force is ≥8000N, effectively resisting thermal deformation and vibration during the welding process, preventing welding accuracy deviations caused by workpiece displacement, and improving product pass rate.
3. High Durability, Suitable for Harsh Working Conditions
   Made of high-strength carbon steel and alloy steel, with a double anti-corrosion surface treatment, it can be used for a long time in the high-temperature, dusty, and humid environment of a welding workshop, with a service life of ≥5 years.
4. Precise Adaptation, Strong Compatibility
   The insert-type positioning pins are compatible with mainstream international D16/D22/D28 hole system standards, and can be used with LEMAR 3D welding platforms and other international brand platforms without the need for additional custom parts.

Correct Usage Guide

• Preparation before inspection: Ensure the workpiece surface is clean and the gaskets are intact.
• Gradual force application: Avoid applying the maximum clamping force instantaneously.
• Even distribution: When using multiple clamps, distribute the pressure evenly.
• Regular maintenance: Clean the guide rods and lubricate the ratchet mechanism monthly.

Warranty Policy

• Warranty Period: 24 months (under normal industrial use)
• Coverage: Material defects, manufacturing process issues
• Fast Replacement: New product shipped within 48 hours of quality issue confirmation
• Lifetime Service: Lifetime repair and technical support provided
