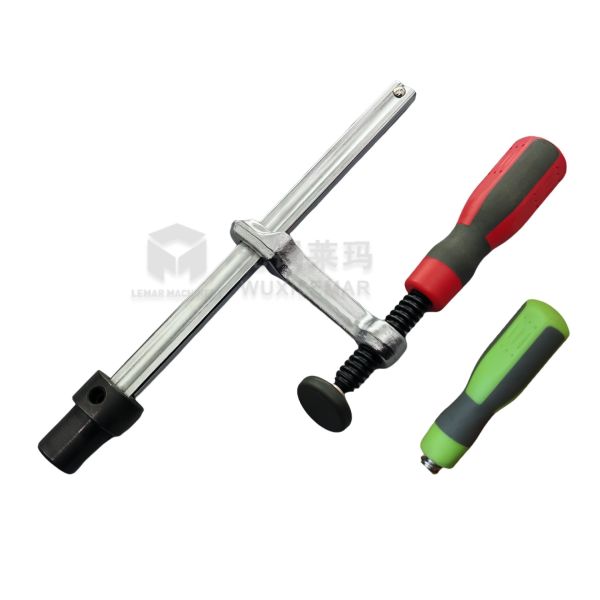

Welding Table Insert Ratcheting F Clamp with High Clamping Pressure

The Welding Table Insert Ratcheting F Clamp with High Clamping Pressure is a heavy-duty clamp specifically designed for industrial welding applications. Its primary function is to securely fix workpieces in the positioning grooves of a 3D welding table, ensuring the accuracy and safety of welding operations.

High clamping pressure core components

• Thickened Alloy Steel Clamping Arms: Made of high-strength carbon steel or chromium-vanadium steel, forged and heat-treated to a hardness of HRC45 or higher, capable of withstanding high pressure without deformation.
• Anti-slip Jaw Design: The jaws feature a serrated texture to increase friction with the workpiece, preventing displacement due to vibration during welding; some models can also be fitted with rubber pads to prevent damage to the workpiece surface.
• Reinforced Lead Screw: High-precision trapezoidal lead screw with deep threads and strong load-bearing capacity. Combined with a self-locking mechanism, it prevents loosening due to external forces after clamping. The maximum clamping pressure can reach 50-150kN (depending on the model).

Core advantages

• Efficient and Convenient: Ratchet operation enables quick clamping and release, significantly reducing workpiece clamping time and improving welding efficiency.
• Stable and Reliable: High clamping pressure securely fixes heavy workpieces, preventing displacement during welding and ensuring weld seam accuracy; the self-locking structure prevents accidental loosening.
• Strong Compatibility: Compatible with mainstream 3D welding table slot systems, and can be used with positioning blocks, support angles, and other accessories of the welding table to build flexible welding fixtures.
• Excellent Durability: The Welding Table Insert Ratcheting F Clamp with High Clamping Pressure features electrophoretic coating, powder coating, or galvanizing treatment on its surface, providing rust and corrosion resistance, and withstanding welding spatter and high-temperature environments, extending its service life.

Customized services

To meet diverse customer needs, the Welding Table Insert Ratcheting F Clamp with High Clamping Pressure supports personalized customization:

• Clamping range customization: The clamping stroke can be extended to 0-300mm to accommodate the positioning needs of large workpieces.
• Surface treatment customization: Options include chrome plating and Teflon coating to enhance corrosion resistance and lubrication.
• Jaw customization: Customized jaws are available, including irregularly shaped jaws (for pipes and profiles) or soft jaws (to protect precision workpieces).
