Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Specifications
Brand Name :
LEMAR
Model Number :
D28/D16
Certification :
CE
Place of Origin :
WUXI
MOQ :
10
Price :
1-100 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000 units/month
Delivery Time :
7-15 work days
Packaging Details :
3000*2000*300mm
Surface treatment :
Blackening / Phosphating / Galvanizing
Installation hole spacing :
Match with the workbench grid
Applicable system :
D16 / D28 Flexible Welding Workbench
Port of export :
Shanghai
Fixed mode :
The quick locking pin is fixed to the hole system of the workbench.
High adjustment accuracy :
±0.1 mm
Material :
45# steel
Sales situation :
Sold separately / Sold as a set
Description

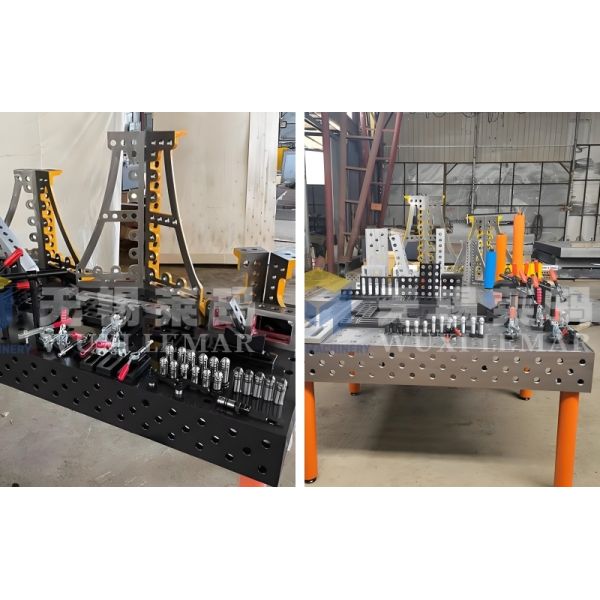

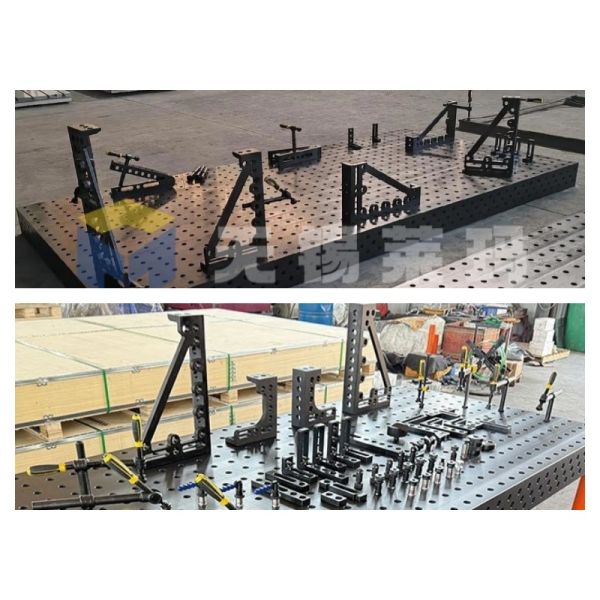

Complete Set of Fixtures and Accessories for Welding Tables
The Complete Set of Fixtures and Accessories for Welding Tables is a standardized, modular tooling system designed to complement flexible welding worktables—typically 3D or 2D perforated welding platforms. This system facilitates rapid positioning, precise clamping, and stable support of workpieces while enabling flexible configuration, significantly enhancing welding efficiency, precision, and consistency.
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Mainstream System Specifications
System Hole Diameter Grid Spacing Countertop Thickness Applicable Scenarios
D16 16mm 50×50 mm 12-14 mm Small to Medium-sized Workpieces, Precision Welding
D28 28mm 100×100 mm 24-27 mm Large / Heavy-Duty Workpieces, Heavy-Duty Welding
Detailed Accessory Classification by Function

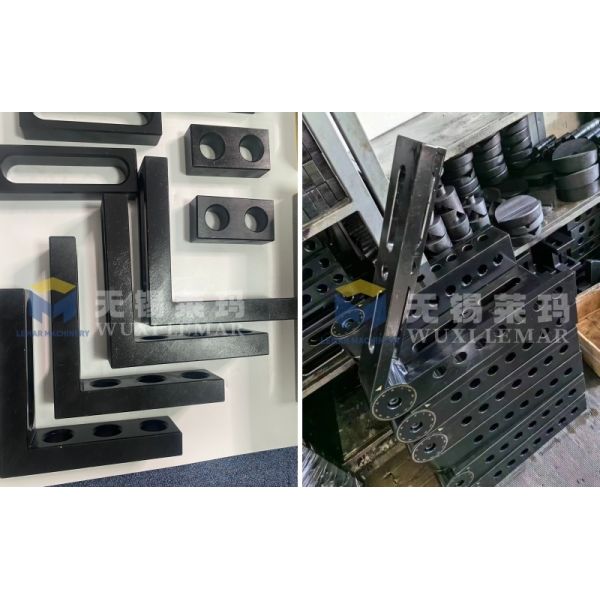

Positioning Types

Ensuring position accuracy with precision components:

  • Positioning angle gauges / square boxes: L-shaped, U-shaped, and angle gauge types for right angles and reference surfaces
  • Positioning pins / stop pins: Insert into workbench holes to restrict movement and align workpieces
  • V-shaped positioning blocks: Centering and positioning for round pipes, round steel, and shaft parts
  • Positioning straight rulers / straight edges: Long strip reference parts for straightness and parallelism
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp

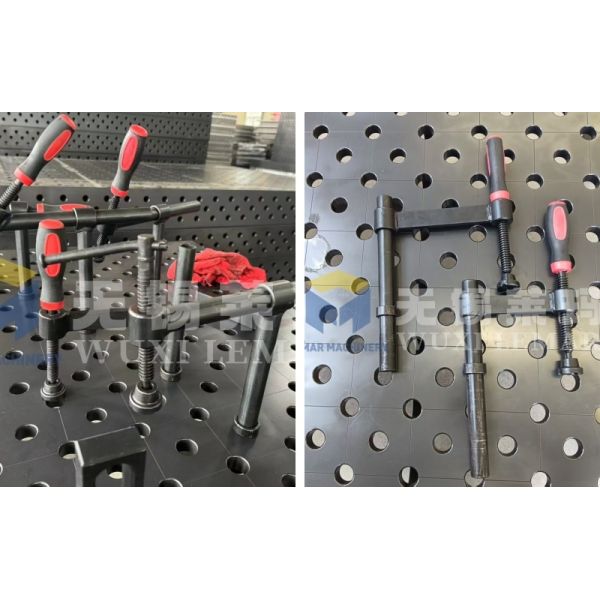

Clamping Types

Core components for fixing workpieces securely:

  • Spiral Pressing Fixture: Manual spiral clamping with high force and reliability for heavy-duty workpieces
  • Quick Pressing Fixture: Elbow type, push-pull type for one-click quick clamping and release
  • Cantilever Fixture: Multi-angle (90°/45°/180°) for complex space clamping
  • Compensating Cantilever Fixture: Reduces lateral clamping force, prevents deflection for accurate positioning
  • C-type Clamp / Flat-nose Pliers: Universal type for thin plates and small parts
  • Magnetic Fixture / Magnetic Base: No drilling required, adsorbs and fixes irregular parts
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Supporting Class

Preventing deformation and providing stable support:

  • Height-adjustable support blocks: Elevatable supports for suspended workpieces and level adjustment
  • U-shaped / L-shaped support bases: Multi-angle and multi-position rigid support
  • Adjustable-angle supports: Stable support for inclined or tilted workpieces
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Connection and Fixation Categories

Connectors and surface connections between components:

  • Quick locking pin: Rapid fixture/support component fixation with seconds assembly and disassembly
  • Sunk head locking pin: Flat surface scenarios without protruding from tabletop
  • Transition pin / connection pin: Compatible connection between D16 and D28 system components
  • Connecting bolt / pressure plate: T-shaped groove tabletop fixation for large fixtures and workpieces
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp

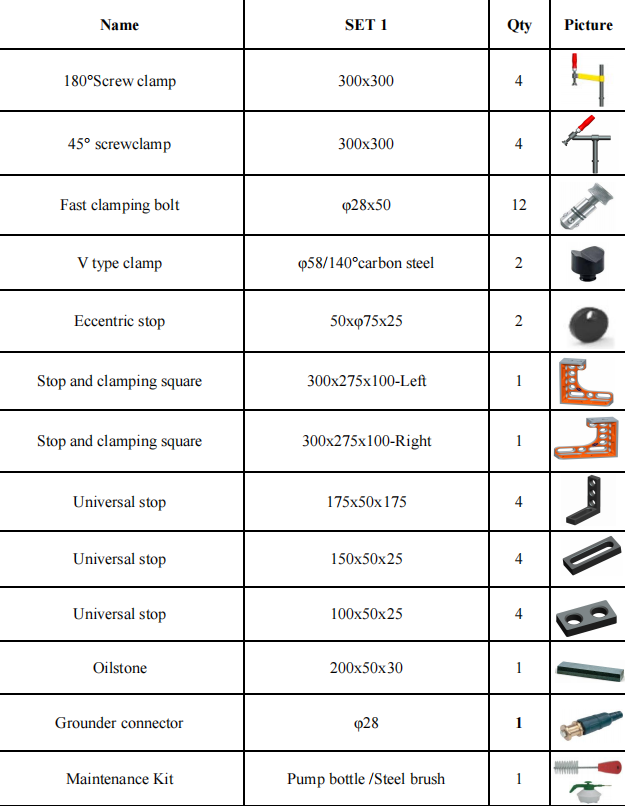

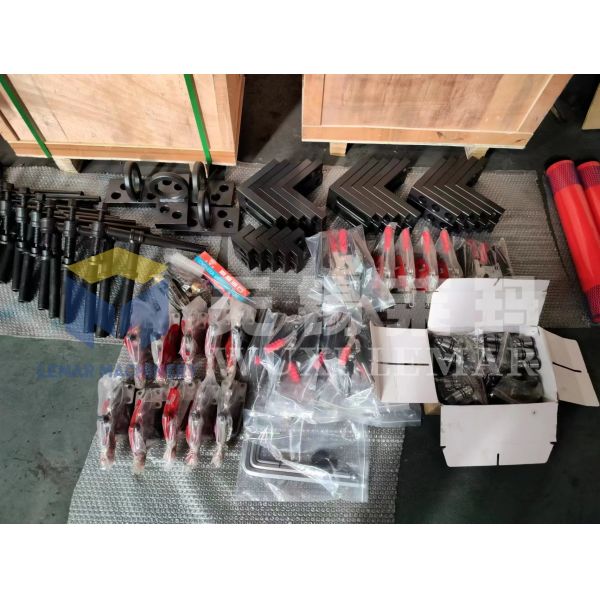

Typical Complete Set Configuration
A complete D28/D16 welding workbench fixture kit typically includes core components with customizable quantities. We offer various accessory kits according to customer requirements. Contact us for customization needs.
Modular Tooling System Cnc Fixture Clamps 45# Steel Ratchet F Clamp
Key Selection Points
  • Matching hole system: Must be consistent with the D16/D28 hole system of your worktable
  • Workpiece size/weight: For heavy workpieces, choose D28 system with heavy fixtures
  • Welding accuracy requirements: For high-precision scenarios, select compensating fixtures and precision positioning components
  • Versatility: Prefer modular, combinable standard accessories for maximum flexibility
