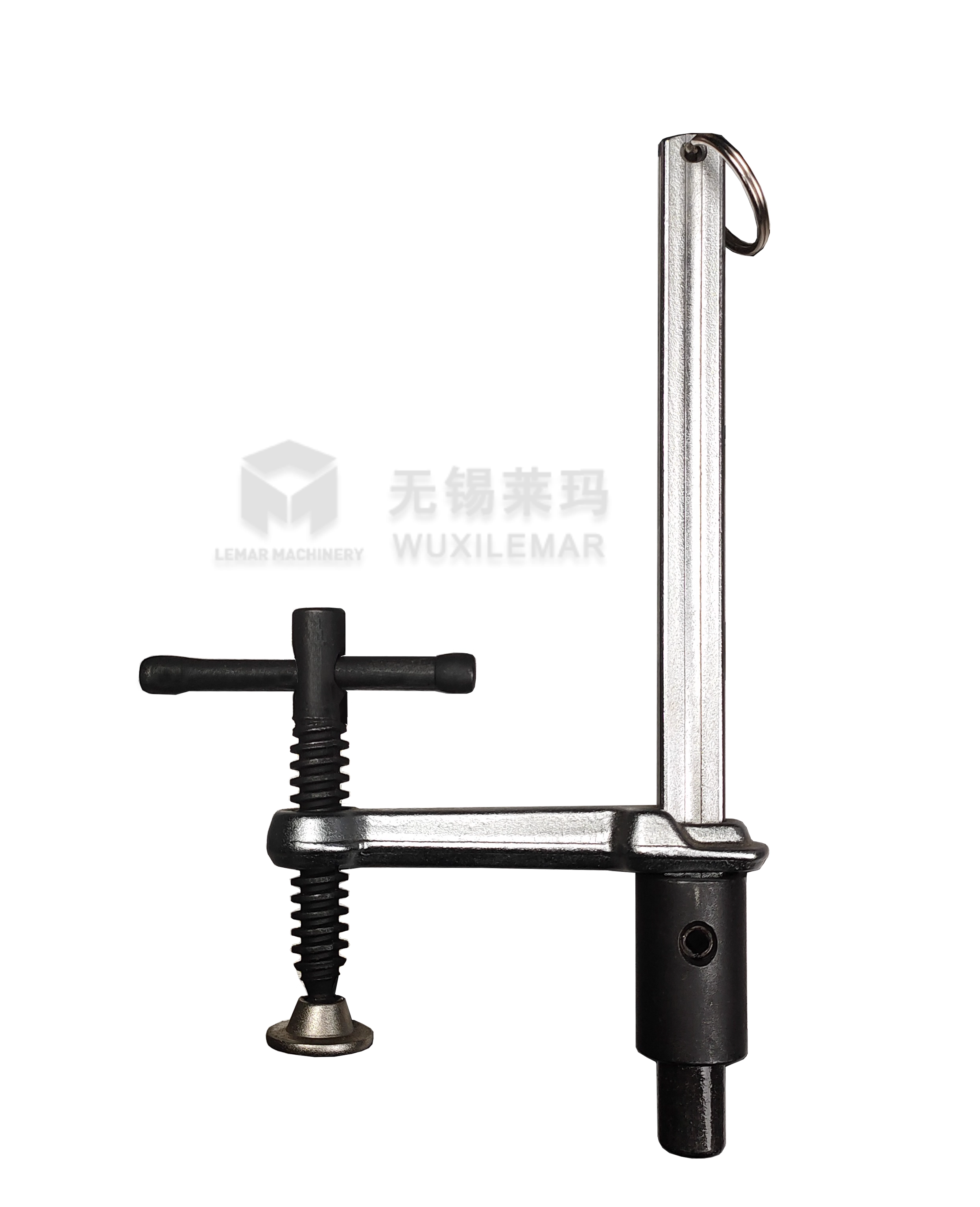

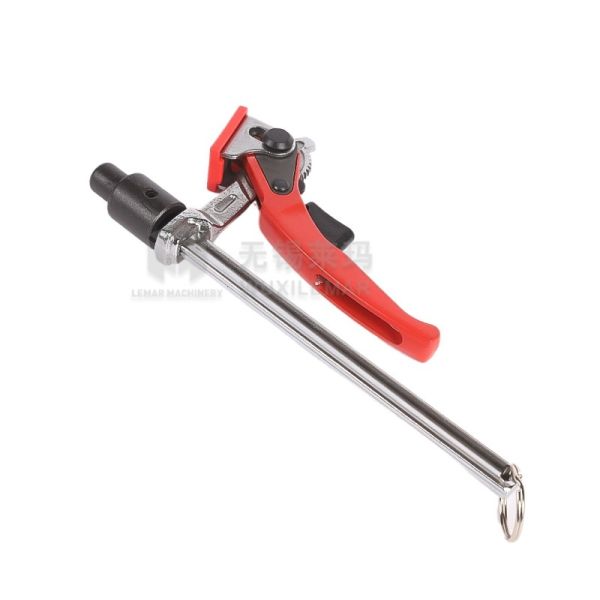

14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
Specifications
Brand Name :
LEMAR
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
1-100 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
7-10 work days
Model Number :
IGRF-300-24-P
Packaging Details :
60×40×50cm
Clamp arm material :
Q345B low-alloy high-strength steel
Ratchet gear module :
1.2mm (Adjustment accuracy: 0.5mm/step)
diameter :
14mm/18mm/22mm
Screw pitch :
2.0mm (precision self-locking thread)
Maximum opening stroke :
80mm/120mm/180mm/250mm/400mm
Maximum clamping force :
8kN/12kN/18kN/22kN/28kN
Positioning accuracy :
≤0.2mm (within the entire clamping range)
Operating temperature :
-30℃~200℃
Security certification :
CE certification; ISO 9001 quality management system certification
Description
Industrial Grade Insert Ratcheting F Clamp for Workshop Use
This industrial-grade F clamp is engineered for high durability and versatility in demanding workshop environments. Designed for high-intensity, high-frequency operations, it delivers strong clamping force, exceptional wear resistance, and straightforward maintenance. Ideal for machining, sheet metal grinding, parts assembly, and woodworking applications.
Technical Specifications
Specification Details
Clamp Arm Material Q345B Low-Alloy High-Strength Steel
Surface Treatment Blackening and Rust Prevention / Electrogalvanizing / Powder Coating
Ratchet Gear Module 2.0mm
Lead Screw Specifications Diameter: 16mm/20mm/24mm/28mm; Pitch: 3.0mm
Maximum Clamping Force 15kN/20kN/25kN/30kN
Jaw Width 50mm/60mm/80mm
14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop 14mm 18mm machining fixture clamps Insert Ratcheting modular F Clamp for Workshop
Core Advantages
  • Ultra-High Durability: Constructed from low-alloy steel with reinforced components, withstands rough workshop handling including collisions and drops. Service life exceeds 8 years - three times longer than ordinary workshop clamps.
  • Strong Clamping Force Output: Maximum clamping force reaches 30kN (3 tons), easily securing heavy metal plates, thick-walled pipes, large wood pieces, and other workpieces for heavy-duty operations.
  • Multi-Purpose Functionality: Three-in-one detachable pads with dual-mode bottom structure adapt to various workshop processes including metal processing, woodworking, and assembly, reducing clamp variety requirements.
  • Easy Maintenance: Ratchet mechanism, lead screw, pads, and other core components can be individually disassembled and replaced, lowering maintenance costs and eliminating complete replacement needs.
  • Convenient Operation: Ergonomic ratchet wrench design provides comfortable grip, preventing fatigue during prolonged use and improving workshop efficiency.
Procurement Advantages
  • Cost-Effective: Factory-direct pricing 40% lower than comparable imported clamps. Service life up to 8 years with annual operating cost only one-third of ordinary clamps.
  • Flexible Procurement: Supports mixed batch purchasing with different models/specifications combinable. Minimum order quantity of 1 unit meets small-batch workshop replenishment needs.
  • Fast Delivery: Standard models in stock and shipped within 24 hours. Non-standard customized models delivered within 15-20 days without affecting production schedules.
Workshop Utilization and Return on Investment
  • Cost Reduction: Multi-functional design reduces fixture variety, lowering procurement costs by 30%. Replaceable core components avoid complete fixture scrapping, reducing maintenance costs by 50%.
  • Increased Efficiency: Fast adjustment with tool-free pad replacement reduces clamping time from 3 minutes to 30 seconds per workpiece, increasing batch processing efficiency by 5 times.
  • Enhanced Safety: Industrial-grade material strength prevents workpiece falling risks due to fixture breakage, reducing workshop safety incident rates.
