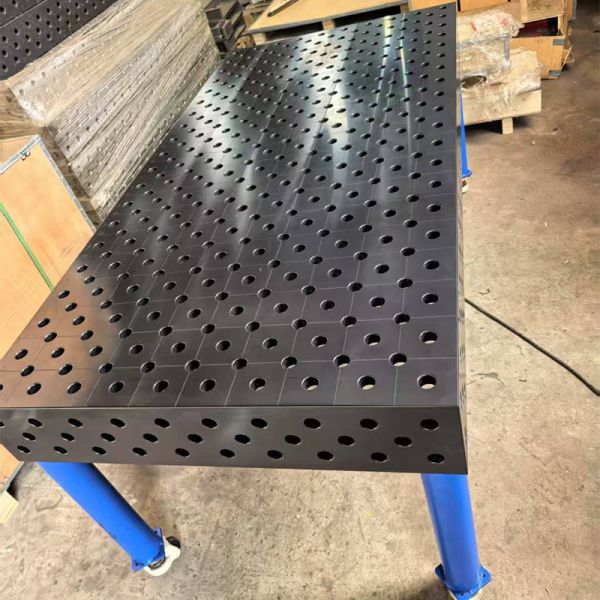

The D16 3D welding table is a modular and flexible welding fixture. The table surface and sides feature φ16mm positioning holes arranged in a standard 50mm grid pattern. Combined with standardized clamps, it allows for quick positioning and clamping of workpieces along the X/Y/Z axes. It can be repeatedly disassembled and reassembled to adapt to different workpieces, while simultaneously meeting the requirements for precision, stability, and safety in mass production. It is an efficient alternative to traditional dedicated fixtures.

1. Enhanced Precision Positioning: The 50mm hole spacing grid is finer than the 100mm spacing of the D28, allowing for micro-adjustment of workpieces in the X/Y/Z axes. This is especially suitable for welding thin-walled and small workpieces (such as sheet metal and small automotive assemblies), avoiding the positioning blind spots caused by the larger hole spacing of the D28, and improving dimensional consistency in mass production.
2. Lighter Weight and Higher Operating Efficiency: The table is thinner and lighter, allowing for easy assembly and movement by a single person, adapting to multi-station workflow in the workshop; the clamping/unclamping process with smaller fixtures is faster, reducing changeover time from 1-2 hours with the D28 to within 30 minutes, adapting to the rhythm of multi-variety, small-batch production.
3. More Favorable Overall Cost: The purchase price is lower, and the price of small fixtures, positioning pins, and other accessories is only 50%-70% of the D28's accessories; it occupies less storage space, and the cost of replacing individual components during maintenance is low, reducing overall tooling costs by 20%-30% over long-term use.
4. Suitable for Precision Mass Production and Compliance: With CE certification, the D16's micron-level accuracy and small-step positioning meet the stringent production standards of industries such as automotive and electronics. Its lightweight design also complies with green manufacturing standards, helping companies achieve dual compliance in both export and domestic mass production.
5. Wider Flexible Adaptability: The table size can be expanded through splicing while maintaining the positioning accuracy for small parts. It is suitable for both single-piece prototyping and mass production, making it more suitable than the D28 for manufacturing scenarios with rapid product iterations and a wide variety of workpiece specifications (suchs as general machinery and new energy equipment).

1.Automotive Manufacturing: Precision welding of car bodies, chassis, and other components, meeting micron-level tolerances and enabling mass production.

2.Construction Machinery: Welding of heavy-duty structural components such as booms and frames, ensuring stable load-bearing capacity and resistance to deformation.

3.Steel Structures / Shipbuilding: Welding of large components, guaranteeing dimensional consistency and welding quality.

4.General Machinery: Welding of various products suchs as equipment frames and casings, improving mass production efficiency.

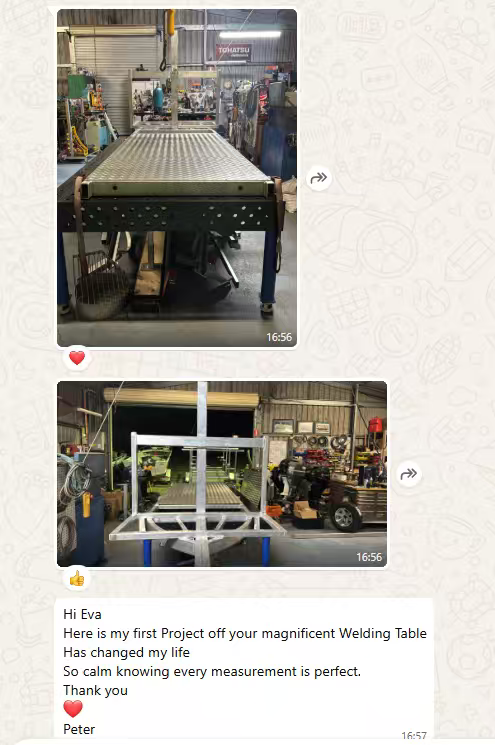

“My first project with this welding table—no more endless adjustments. The hole positions are unbelievably precise; even a quickly assembled fixture fits perfectly. Heavy workpieces don't budge the table at all. This quality is rock-solid.”— Peter, Senior Fabricator

Why did Peter say it's "unbelievably stable"?

• Hole system precision: D16 hole position tolerance ≤±0.05mm, 3 rounds of CNC calibration before leaving the factory, ensuring "precise clamping every time";
• Table surface rigidity: HT300 cast iron + overall annealing process, no deformation under a 2-ton load, maximizing welding stability;
• Durability: Nitrided surface hardness reaches HV600, resistant to welding slag and wear, maintaining accuracy even after long-term use.
•

Contact Us

We have always believed that a good welding table is not just a tool, but a partner that helps you "get every weld right." From Peter's peace of mind to the efficient production of many more customers, we will continue to engrave "precision and durability" into every piece of equipment – ​​after all, making your production line more stable and smoother is our most fundamental goal.
We look forward to becoming your reliable teammate in your next project.
