Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Flexible 16 series modular fixturing system for welding and fabrication
Specifications
Brand Name :
LEMAR
Model Number :
D16
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Hole Diameter :
16mm
Table Thickness :
12mm
Assembly Required :
Yes
Warranty :
2 years
Portability :
Fixed, not portable
Usage :
Welding and fabrication work
Hole Spacing :
50mm x 50mm grid
Material :
Cast iron / Carbon steel / Stainless steel
Surface Flatness :
±0.1mm
Description

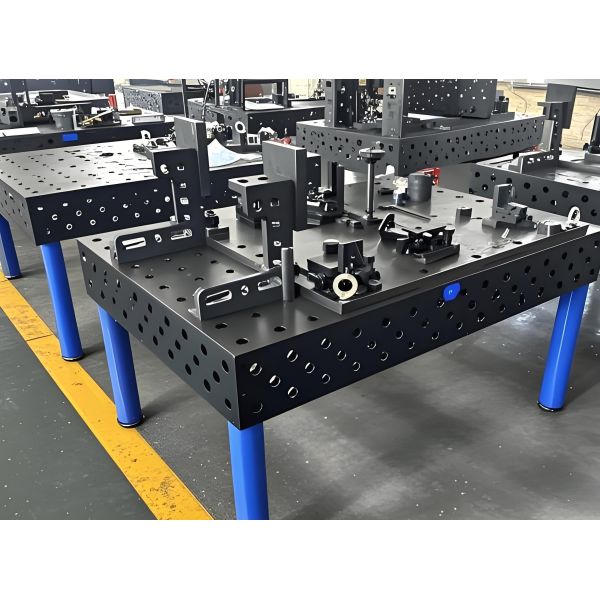

Flexible 16 series modular fixturing system for welding and fabrication

The core of the Flexible 16 series modular fixturing system for welding and fabrication is "flexible modularity"—replacing traditional dedicated fixtures with standardized hole patterns and interchangeable modules to achieve "one system for multiple workpieces," significantly shortening changeover times and reducing the cost of dedicated tooling. Its design adheres to the international standard DIN 2085, with the 16mm hole pattern being the mainstream specification for small-scale precision positioning.

Hole Diameter 16 mm (True D16)
Hole Pitch (Grid Spacing) 50 mm × 50 mm / 100 mm × 100 mm
Grid Markings Metric (mm) / Optional Imperial (inch)
Working Surfaces (3D Type) 5-sided CNC machined (top + 4 sides)
Surface Flatness ≤ 0.05 mm/m (CNC machined)
Surface Roughness Ra 3.2 μm
Positioning Repeatability ≤ ±0.02 mm
Verticality (Side Surfaces) ≤ 0.05 mm/200 mm
Modular Compatibility Standard D16 clamps, pins, blocks, angle irons, stop blocks

Flexible 16 series modular fixturing system for welding and fabrication

Core advantages

Improved Efficiency: Changeover time is reduced from several hours with traditional fixtures to 10-30 minutes, increasing single-shift production capacity by ≥50%, and is suitable for multi-variety, small-batch production.

Cost Optimization: Reduces the design and manufacturing costs of dedicated fixtures (saving approximately 70%), and the modules are reusable, lowering long-term investment.

Precision Guarantee: ±0.05mm positioning accuracy, achieving a welding consistency pass rate of 99.5%, reducing rework and material waste.

Global Compatibility: Multiple voltage options, multiple certifications (CE/RoHS), and imperial/metric parts available, adapting to market standards in Europe, the Americas, and Southeast Asia.

Typical application cases

Automotive parts factory (Europe): Used for welding small parts of gearbox housings, in conjunction with D16 locating pins and quick clamps, reducing clamping time from 15 minutes per piece to 3 minutes per piece, and increasing the batch pass rate to 99.8%.

Electronics equipment manufacturer (North America): Stainless steel tabletop model adapted for welding semiconductor components, corrosion-resistant and compliant with RoHS environmental requirements, reducing the cost of specialized fixtures by 65%.

Agricultural machinery repair workshop (Southeast Asia): Mobile model with casters, suitable for repairing small brackets, solving the problem of insufficient accuracy at fixed workstations, and increasing repair efficiency by 40%.

Flexible 16 series modular fixturing system for welding and fabrication

Contact Us

As a professional supplier of the Flexible 16 Series Modular Fixturing System, we base our products on the DIN 2085 D16 standard, integrating "flexible adaptability" and "millimeter-level precision" into every fixturing module. We provide efficient and cost-effective solutions for multi-variety, small-batch production in fields such as welding and sheet metal processing.

From standardized module supply to customized system integration, from single-machine delivery to automated production line support, we leverage our global service network and multilingual technical support to bring the power of flexible intelligent manufacturing to every manufacturing site worldwide.
