D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
Specifications
Brand Name :
LEMAR
Model Number :
D16
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Hole Diameter Specifications :
D16: Diameter 16 mm (Precision Drilled and Milled Hole)
Hole Spacing :
50×50 mm (Standard, ±0.05 mm accuracy)
Load-bearing capacity :
≤ 2 tons (Standard Model); Reinforced Model up to 5 tons.
Surface RoughnessSurface Roughness :
Ra3.2
Hole Position Accuracy :
±0.05mm
Flatness :
0.1/1000mm
Perpendicularity :
0.05/200mm
Countertop Body Hardness :
≥HB220
Nitrided Layer Hardness :
HV450-HV630
Description
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
A precision-engineered 3D flexible welding platform designed for rapid positioning, clamping, and welding of workpieces across X, Y, and Z axes. Features high-strength steel construction with anti-deformation rib structure for superior rigidity and long-term stability.
Technical Specifications
Parameter Typical Value Explanation
Hole Diameter Φ16mm Standard D16 hole pattern, D10 tolerance, compatible with dedicated locating pins and fixtures
Hole Pitch / Grid 50mm×50mm Standard grid, ±0.05 mm accuracy for rapid positioning
Countertop Thickness 12mm High-strength steel plates ensure flatness and load-bearing capacity
Working Face Five-Sided Precision Machining Flatness: ±0.1/1000 mm; Perpendicularity: 0.2/200; Parallelism: 0.1/200
Reinforcing Rib Dense bottom reinforcement Rigidly connected to sides; resistant to deformation
Material Q355/16Mn Steel Plate Welded and formed, stress-relief annealed
Load-bearing Standard: 2T
Frame: 5T		 Meets welding requirements for small to medium-sized steel structures and sheet metal parts
Surface Treatment Nitriding / Blackening / Painting Wear-resistant, rust-proof, and resistant to weld spatter adhesion

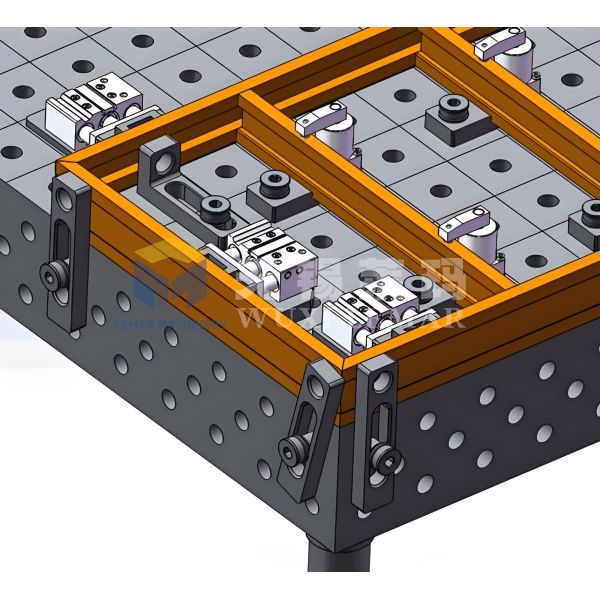

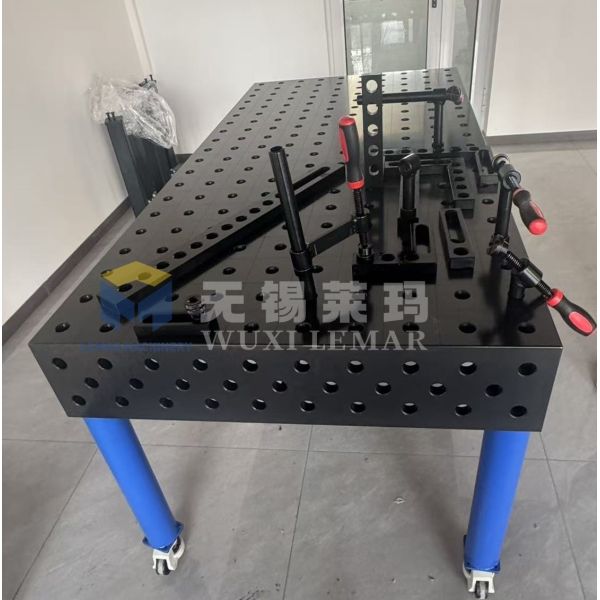

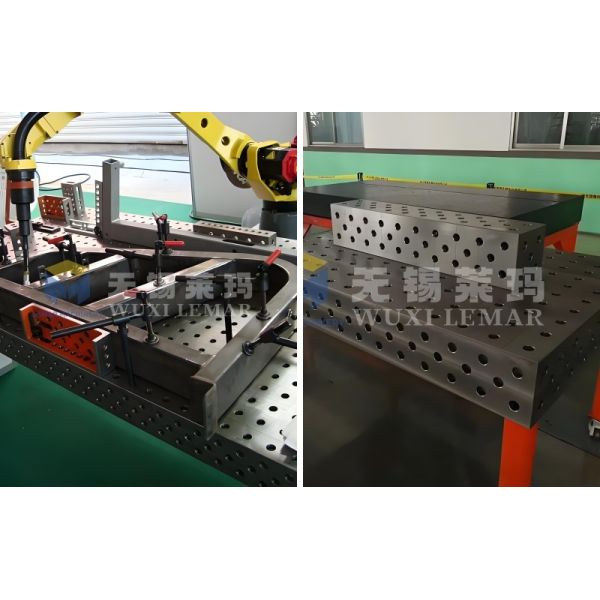

Product Images
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
D16 Steel 3D Welding Table with Anti-Deformation Ribbed Design
Core Values
  • High Precision: Micron-level positioning ensures superior weld quality and consistency
  • High Rigidity: Ribbed design and thick steel plates resist deformation and vibration
  • High Flexibility: Modular hole grid system enables rapid changeovers, reducing fixturing costs by over 70%
  • High Efficiency: Minimizes marking and clamping times, boosting welding efficiency by more than 40%
  • Versatility: Accommodates welding of over 90% of small to medium-sized parts
Core Strengths
  • European Standard Hole Pattern: D16 series with 50×50mm hole spacing
  • Comprehensive Quality Control from raw material to final inspection
  • Certification Documents Available: Material Reports, Precision Inspection Reports
  • OEM/ODM Support for custom requirements
  • Applicable in EU, South America, Middle East, and Southeast Asia markets
Ideal For
  • Sheet Metal Welding & Fabrication Plants
  • Automotive Parts Manufacturers
  • Agricultural & Construction Machinery Parts Factories
  • Metal Furniture, Shelving, and Frame Manufacturers
  • Welding Equipment Traders & Distributors
  • Welding Training Equipment for Vocational Schools
Training and Support

Usage Training: Operation manuals, installation videos, and fixture usage tutorials available

Technical Support: Remote guidance for installation and commissioning; consultation on fixture design solutions

Quality Assurance & Warranty

Precision Inspection: Comprehensive inspection report included with shipment

Warranty Coverage: Tabletop structure: 1-2 years; Consumable parts: 3-6 months

Stress Relief Annealing Certification: Available upon request to meet strict non-deformation requirements
