Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Specifications
Brand Name :
LEMAR
Model Number :
BWJ-1
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000USD
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
10-20 work days
Packaging Details :
55.00cm * 59.00cm * 65.00cm
Transport Package :
Standard
Suitable Chuck :
Kd-200/300/400
Center Hole Diameter :
45mm
Tilt Angle :
0-90 Degree
Work Table Diameter :
400mm
Max Load Capacity :
100kg
Condition :
New
Welding Turning Rolls Type :
Adjustable
Description
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Product Introduction

This 100kg light welding positioner is designed for small workpieces circular seam welding.

Rated load 100kg, table diameter Φ 400mm, rotation speed 0.5 -5r/min. Tilt angle 0°-100° with self-locking structure.

It adopts 220V standard voltage, compact size and easy operation. Suitable for flanges, pipes and hardware precision welding.

Technical Specifications
Model BWJ-1
Max horizontal load 50KG
Max vertical load 100KG
Rotation speed 0.3-3rpm/min
Turntable angle 0-90
Work table diameter 400mm
Rotation power 0.18kw
Speed mode AC Frequency conversion stepless speed regulation
Voltage AC 220V
Chuck Available
Welder holder Available
Center hole diameter 90/170mm
Work table height 520mm
Tilt mode Manual
Oversize 500(L)*530(W)*520(H)
Weight 67kg
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece

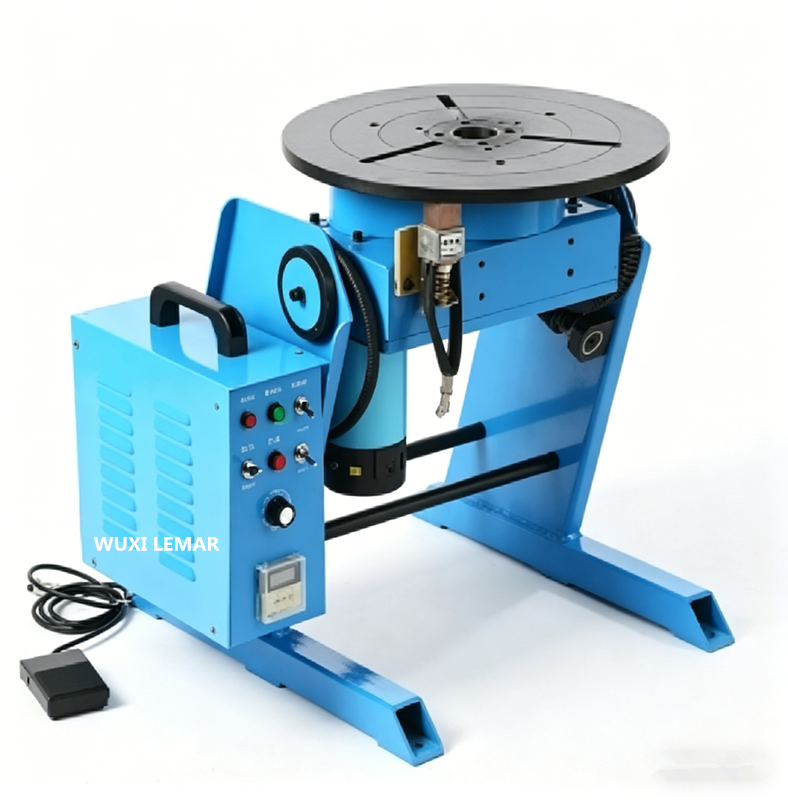

Structure and Composition

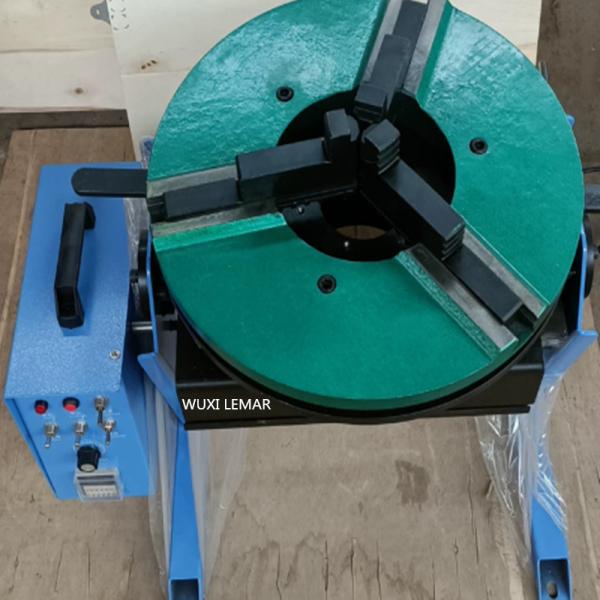

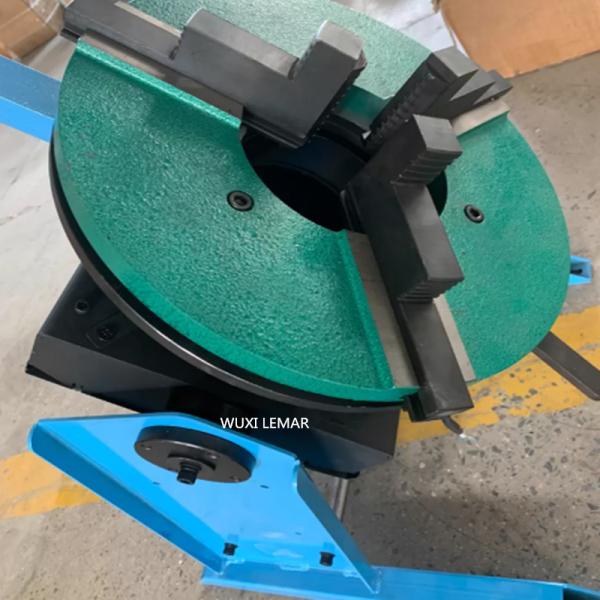

  • Rotary Worktable: Φ400mm T-slot table, convenient for installing chucks and fixtures.
  • Tilting Frame & Body: Thickened steel plate frame, worm gear self-locking structure, stable tilting.
  • Drive Motor System: 120W rotation motor + 400W tilting motor, smooth operation.
  • Speed Reducer: High-precision worm reducer, low noise and long service life.
  • Electric Control Box: Independent control box for speed adjustment, forward and reverse rotation.
  • Foot Switch: Foot control start/stop, easy operation and improve work efficiency.
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
Operation and Maintenance Guide
Usage Instructions
  • Place the unit on flat solid ground, connect the power supply correctly.
  • Load workpiece evenly, strictly do not exceed 100kg rated load.
  • Operate rotation and tilting gently, avoid sudden start and stop.
Maintenance Guide
  • Clean welding slag and dust on the machine regularly after daily use.
  • Add lubricating grease to transmission parts every 2-3 months.
  • Cut off power when idle, check circuit and parts periodically.

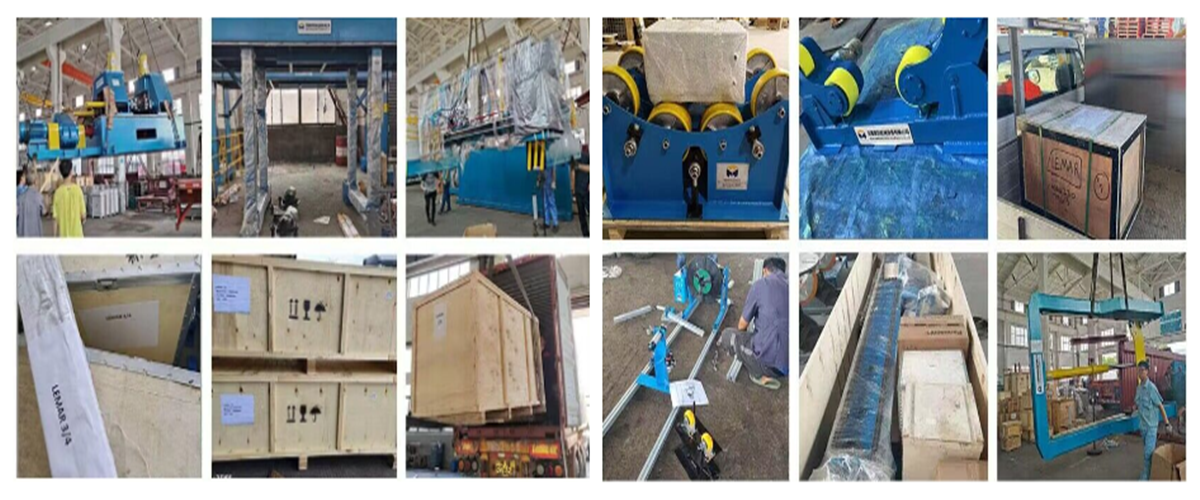

Transportation and Packaging
Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
  • Adopt standard export wooden case packaging, compression-resistant and drop-proof.
  • Equipped with foam lining inside to buffer collision and protect the machine.
  • Complete standard accessories and operation manuals are packaged together.
  • The whole machine is firmly fixed to prevent shaking and deformation in transit.
  • Support sea freight, air freight and international express, with formal customs labels.
Frequently Asked Questions
Q: What kind of welding methods is this positioner compatible with?

A: It is fully suitable for MIG, TIG, CO2 gas shielded welding and plasma welding for small workpieces.

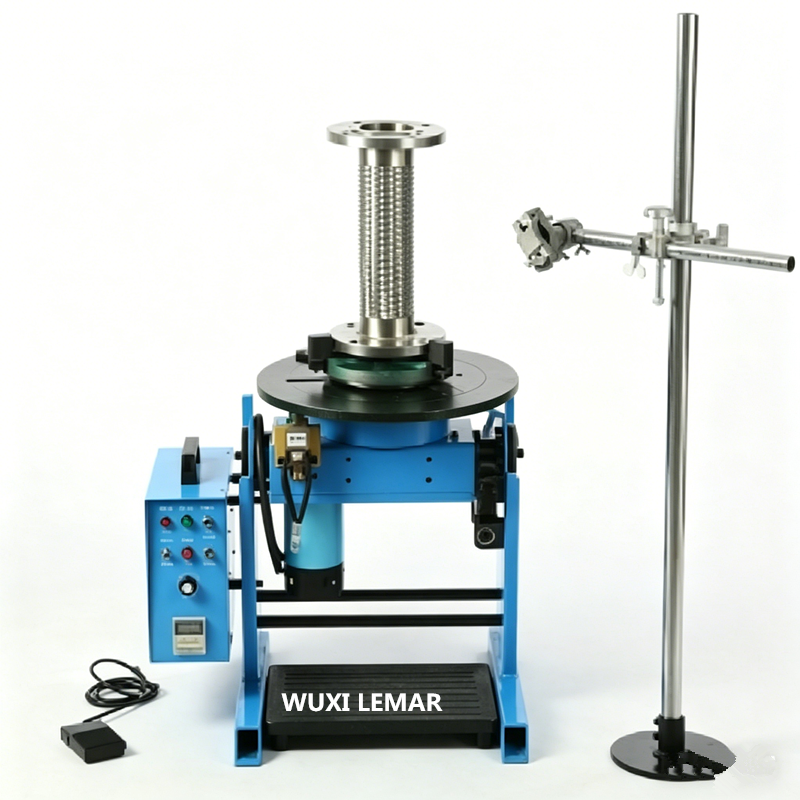

Q: Can the workpiece be installed with center through-hole penetration?

A: Yes, it supports penetrating installation of long shaft and pipe workpieces for through welding operation.

Q: Is it easy for one person to move and place the machine?

A: The machine is compact and light weight, easy to carry and place at any workshop station.

Q: Will the rotation produce obvious shaking during welding?

A: Adopts precision transmission structure, runs smoothly with no obvious shaking, ensuring uniform weld seam.

Q: Can the foot switch realize start-stop linkage with the welding machine?

A: Yes, the foot switch can cooperate with the welding machine to realize synchronous start and stop, improving working efficiency.
