100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
Specifications
Brand Name :
LEMAR
Model Number :
BWJ-1
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000USD
Payment Terms :
L/C,D/A,Western Union,D/P,T/T
Supply Ability :
500 units/month
Packaging Details :
55.00cm * 59.00cm * 65.00cm
Max Eccentricity Distance :
200mm
Voltage :
380V
Product Name :
100kg Welding Positioner
Max Load Capacity :
100kg
Motor Type :
AC Motor
Material :
Steel Structure
Product Condition :
New
Transport Package :
Wooden Package
Rotaion Speed :
0.05-0.5rpm
Description
100kg Rotary Tilting Welding Positioner For Small Workpiece Welding
Product Overview

The 100kg welding positioner is a lightweight precision positioner designed for automated circular/longitudinal welding of small and medium-sized workpieces. It integrates rotation, tilting, and precise positioning to adjust workpieces to the optimal flat/downhand welding position, significantly improving welding efficiency, seam quality, and operational safety. Widely compatible with TIG, MAG/MIG, plasma welding, etc., it is ideal for flanges, pipes, shafts, shells, small steel structures, and other batch welding and precision assembly tasks.

Standard Accessories Optional Accessories

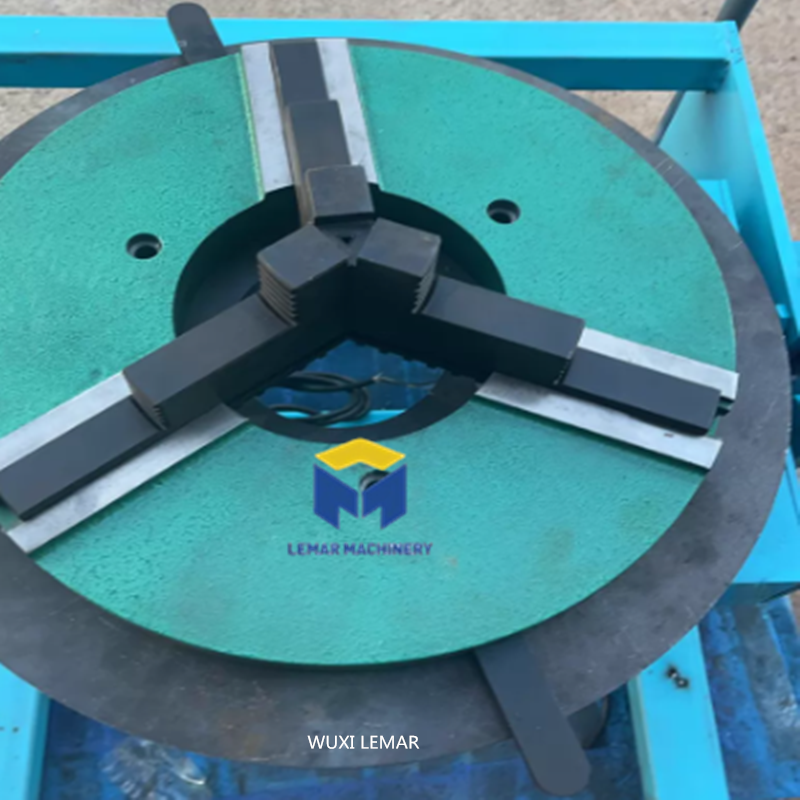

Main machine body 3-jaw self-centering chuck

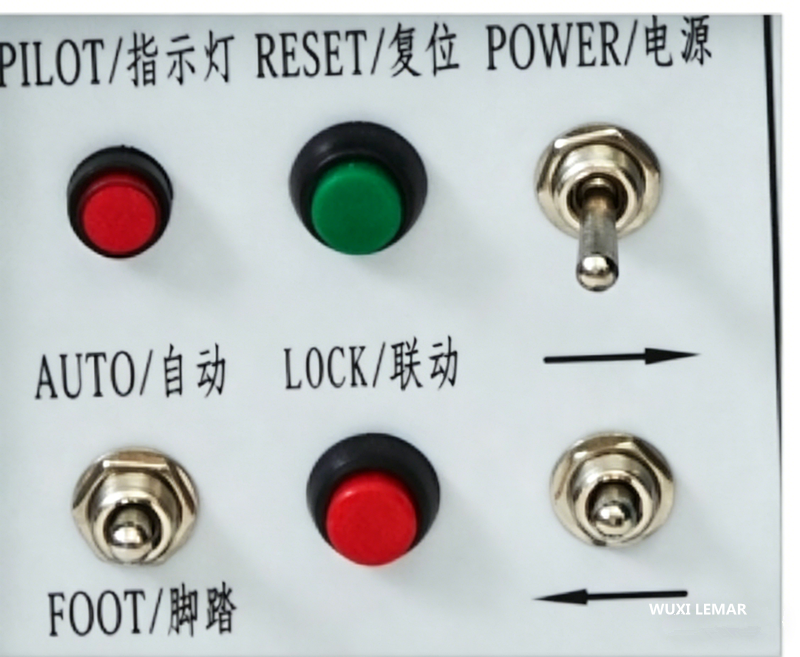

Independent control box Wireless remote controller
Foot switch Pneumatic tailstock
Rotary worktable Welding torch holder
Mounting screws & fasteners Custom large center hole
Operation manual CNC timing control system
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation 100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
Product Advantages

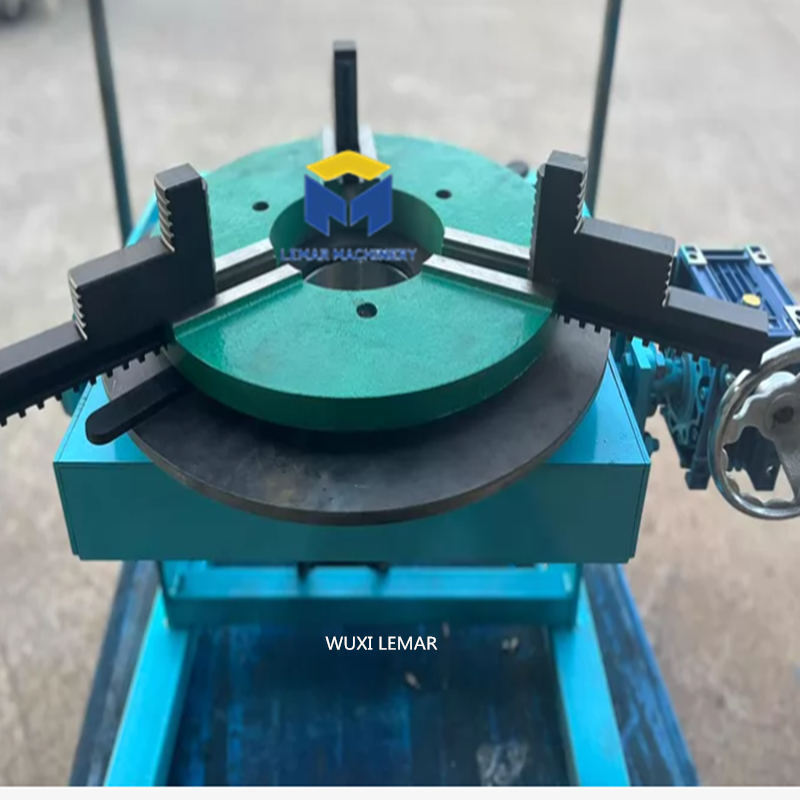

  • Precision & Stable Transmission: Worm gear tilting + precision gear rotation, smooth rotation, self-locking tilt, repeat positioning accuracy ≤±0.5°.
  • Stepless Speed Regulation: Wide speed range, smooth adjustment, suitable for thin part precision welding and thick part penetration welding.
  • Strong Anti-Interference: Special anti-electromagnetic interference circuit, suppresses welding high-frequency interference, supports welding machine linkage.
  • Flexible Center Hole: Through-hole design for long pipes/shafts, compatible with 3-jaw chucks and pneumatic steady rests.
  • Compact & Efficient: Small footprint, easy to move, single-operator friendly, ideal for small-batch production and robot welding stations.
  • Safe & Durable: Overload protection, emergency stop, limit switches; thick steel body, wear-resistant gears, rust-proof paint.
Technical Specifications
Model BWJ-10
Loading weight (kg) 100KG
Rotation speed (rpm) 0.5-5
Flip speed (rpm) 0.73
Flip angle (°) 0-90
Positioner diameter (mm) Φ400
Maximum eccentricity (mm) 150
Maximum gravity (mm) 200
Rotate speed adjustment method Frequency
Rotation motor (kw) 0.37
Flip motor (kw) 0.37
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
Applications

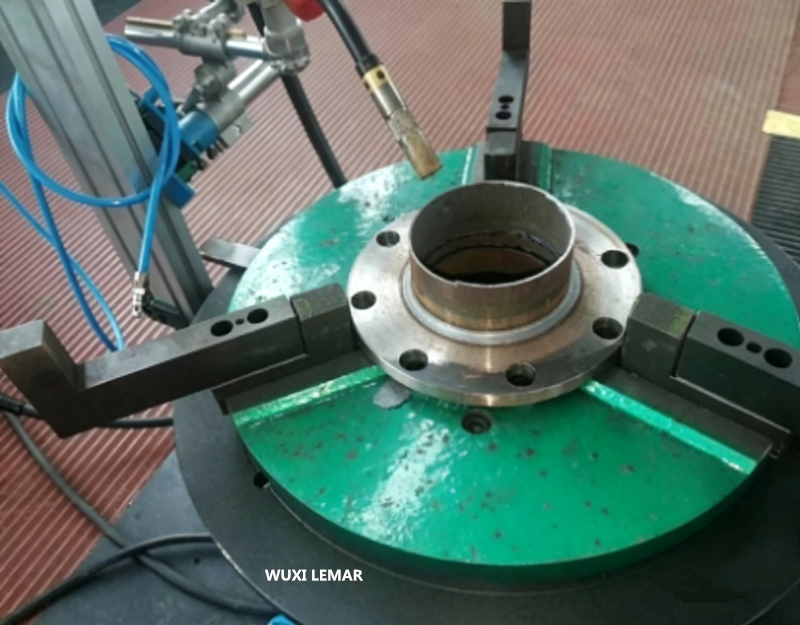

  • Metal fabrication: flanges, elbows, tees, small pressure vessels

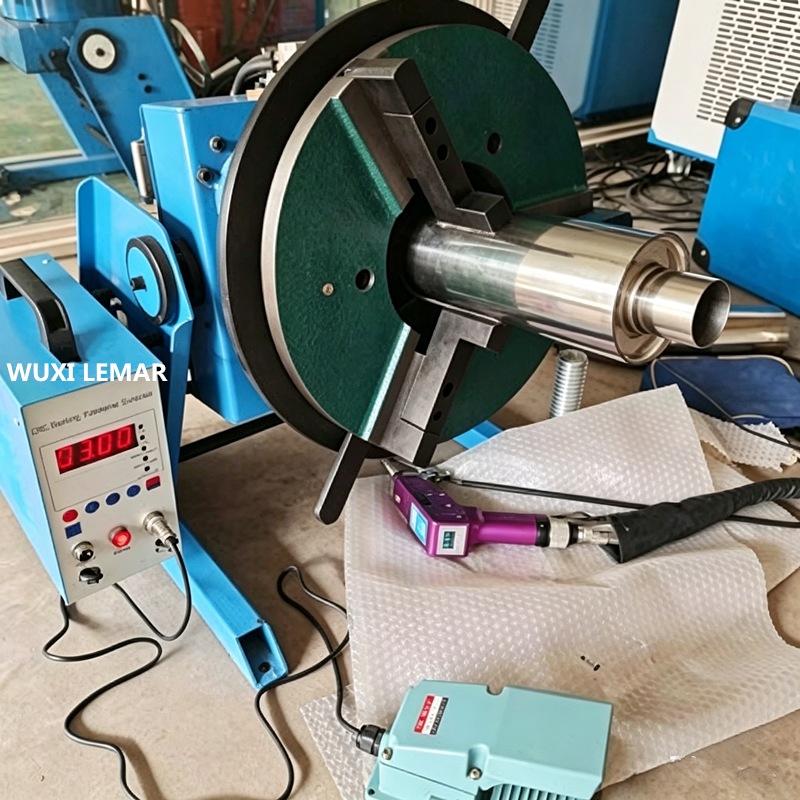

  • Pipe manufacturing: steel/stainless steel/aluminum pipe welding
  • Auto parts/hardware: shafts, hubs, shells, brackets
  • Steel structures: small frames, boxes, heads

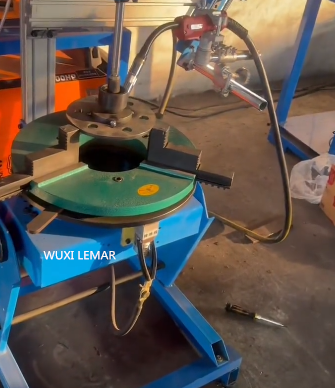

  • Automation: robot external axis, automatic production line
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation 100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
Product Packaging
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation 100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation

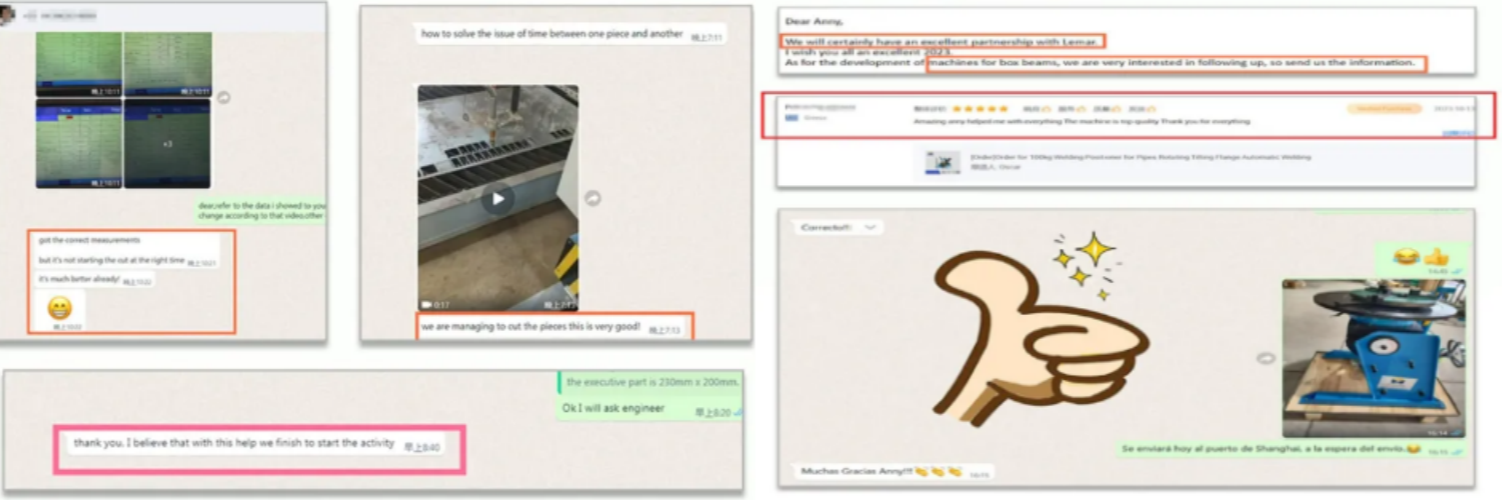

Customer Feedback
100kg Load Capacity Rotary Tilting Welding Positioner with Stepless Speed Regulation and Precision Gear Rotation
Frequently Asked Questions
Q: Is this 100kg welding positioner suitable for thin sheet welding?

A: Yes. It adopts stepless speed regulation with stable rotation, no shaking, perfectly suitable for thin sheet and small precision workpieces welding.

Q: Can the tilt angle be locked at any position?

A: Sure. It uses worm gear self-locking structure, which can stay at any tilt angle without slipping.

Q: Is the voltage customizable for different countries?

A: We support custom voltage like 110V, 220V, 380V to adapt to local power supply standards.

Q: Can I install a chuck or fixture on the worktable?

A: The table is designed with T-slots, which is convenient to install 3-jaw chuck, fixtures and customized tooling.

Q: Do you support private logo and customized appearance?

A: OEM & ODM are acceptable. We can customize logo, color and outer structure according to your requirements.
