Specifications
Payment Terms :
T/T,D/P,D/A,L/C
Control System :
PLC + Touch Screen
Model Number :
LT-15
Structure Type :
Roller Type / Chain Type
MOQ :
1
Delivery Time :
10-20 work days
Driving Mode :
Chain Synchronous Drive / Mechanical / Hydraulic Working Speed Adjustable
Working Speed :
Adjustable
Packaging Details :
220.00cm * 130.00cm * 120.00cm
Brand Name :
LEMAR
Rated Load :
15 Ton
Place of Origin :
WUXI
Turning Angle :
0~360°
Price :
500-1000USD
Robot Linkage :
Reserved Signal Interface for Welding Robot
Supply Ability :
500 units/month
Protection Device :
Safety Interlock, Chain Overload Protection
Certification :
CE
Optional Application Workpiece :
H Beam, Box Beam, Steel Structure Parts
Description
15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding
Product Overview
This 15 ton chain type welding turning rotator is cost-effective welding auxiliary equipment for medium load cylindrical workpieces. It adopts chain drive structure with strong overload resistance, stable running and low maintenance cost, easier to repair than gear drive rotators. With VFD variable frequency system, it keeps stable rotation speed to get high quality circumferential weld seam. Widely used for pipe, tank, boiler and pressure vessel welding in metal fabrication workshops.
15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding
Core Features
  • Chain Drive Design: Strong overload and impact resistance, simple structure, low failure rate and easy maintenance
  • VFD Speed Control: Stepless speed adjustment, forward and reverse rotation, stable linear speed for welding
  • Optional Rollers: PU rollers protect stainless steel workpiece surface from scratches; steel rollers fit high temperature & heavy load
  • Heavy Welded Steel Frame: Stress relieved, high rigidity for long time industrial operation
  • Easy Operation: Control box plus handheld pendant, convenient for field operation
  • Safety Protection: Emergency stop, overload and power-off protection
  • Customization Available: Custom workpiece diameter, local voltage and special configurations
Working Principle

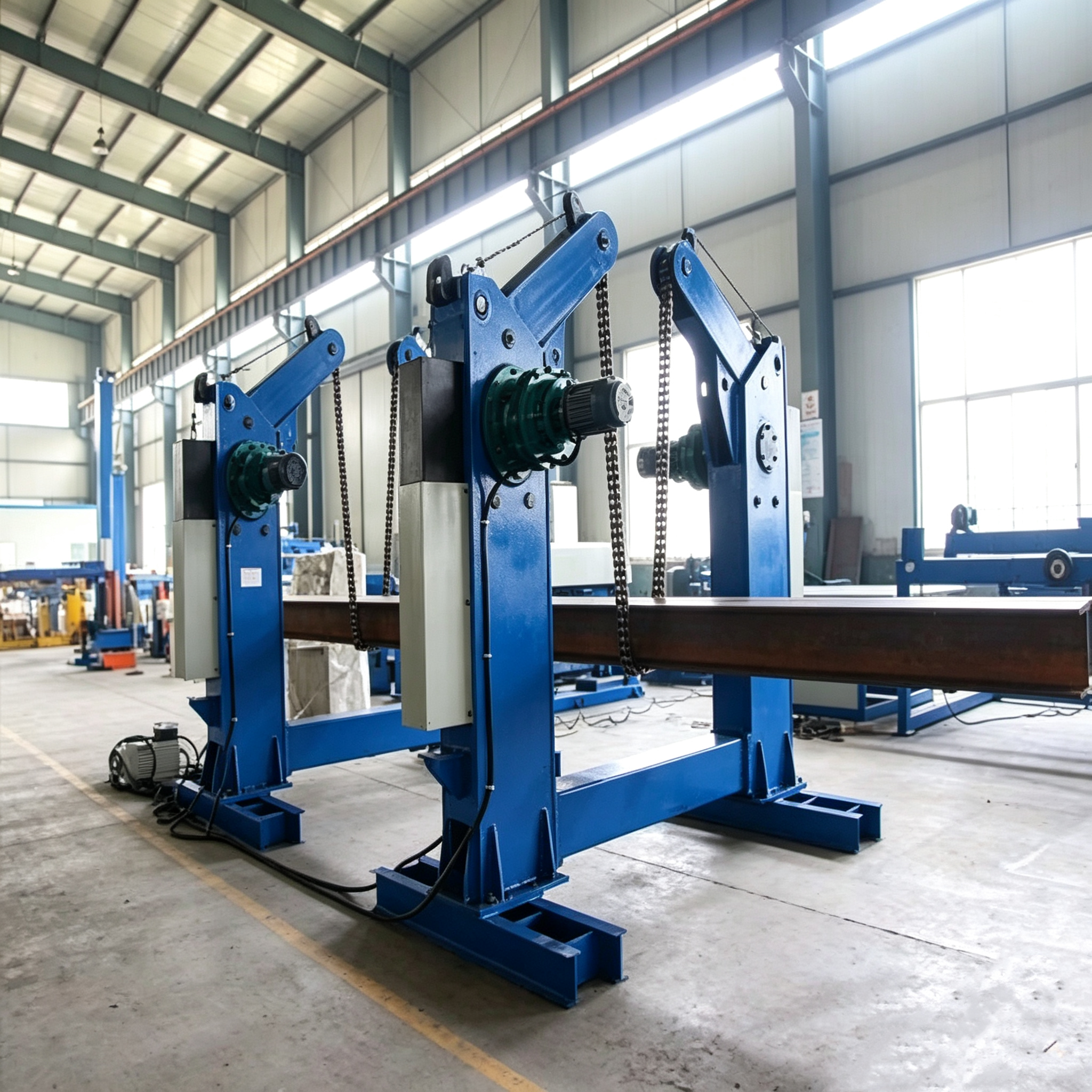

The 15t chain type turning rotator includes driving unit and driven unit. The motor drives chain system to rotate support rollers, and then drives cylindrical workpiece to rotate at constant speed. Consistent rotation avoids uneven weld bead, improves welding efficiency and matches automatic welding system.
Product Specifications
15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding
Item Specification
Rated Load 15 Ton
Product Type Chain Type Welding Turning Rotator
Driving Method Chain Drive
Speed Control VFD Stepless Speed Adjustable
Rotation Direction Forward & Reverse
Roller Material PU Roller / Steel Roller Optional
Frame Structure Heavy Welded Steel Frame
Control Mode Control Box + Handheld Pendant
Applicable Diameter Customized
Working Speed 0.1-3r/min Stepless Adjustable
Voltage 380V/415V/440V Customized
Certificate CE Support
Warranty 12 Months
Application Tank, Pipe, Pressure Vessel, Boiler, Heat Exchanger
Application Scope
  • Circumferential seam welding for medium-sized cylindrical workpieces
  • Fabrication of storage tanks and pressure vessels
  • Boiler barrel and heat exchanger cylinder welding
  • Thick wall pipe and large pipe section welding
  • Machinery and petrochemical equipment manufacturing
  • Water treatment and environmental protection equipment production
  • General metal fabrication workshop

15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding15 Ton Chain Driven Turning Rotator, Welding Turning Rolls for Boiler & Heat Exchanger Cylinder Welding

Advantages
  • Simple chain transmission structure, strong impact resistance and overload capacity
  • Low failure rate, easy maintenance and affordable spare parts
  • VFD stepless speed regulation ensures stable rotation for consistent welding quality
  • Heavy welded steel frame with high rigidity for long time continuous operation
  • Dual roller options: PU roller to protect workpiece surface, steel roller for high temperature working condition
  • Complete safety protection including emergency stop and overload protection
  • Support customization for workpiece diameter and local supply voltage
Frequently Asked Questions
Q1: What is the rated load?
A1: Rated load is 15 tons. Overloading operation is forbidden.
Q2: What is the advantage of chain drive?
A2: Better overload resistance, simple structure, lower spare parts cost and easy maintenance.
Q3: Can I select PU rollers?
A3: Yes, PU and steel rollers are both optional. PU rollers prevent scratches on stainless steel and aluminum workpieces.
Q4: Is rotation speed adjustable?
A4: Yes, equipped with VFD system for stepless speed regulation, forward and reverse rotation.
Q5: Can you customize workpiece diameter?
A5: Yes, we customize according to your workpiece size.
Q6: What about warranty?
A6: 12 months warranty. We provide online technical support and operation video.
Q7: Can you offer CE certificate?
A7: Yes, CE certificate is available upon request.
