600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
Specifications
Payment Terms :
T/T,D/P,D/A,L/C
MOQ :
1 Set
Model Number :
ZTG-20
Rotaion Speed :
0.1-1rpm
MOQ :
1
Delivery Time :
10-20 work days
Adjustment Type :
Fully Self-Centering / Self-Adjusting
Roller Size :
φ210×120mm
Packaging Details :
220.00cm * 130.00cm * 120.00cm
Brand Name :
LEMAR
Model NO. :
HGZ-20
Place of Origin :
WUXI
Rated Load Capacity :
20 Ton
Price :
500-3000USD
Workpiece Diameter Range :
φ300mm - φ2500mm
Supply Ability :
500 units/month
Rotation Speed Range :
60 - 600 mm/Min, Stepless Adjustable
Certification :
CE
Voltage :
110V/220V
Description
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
Product Overview

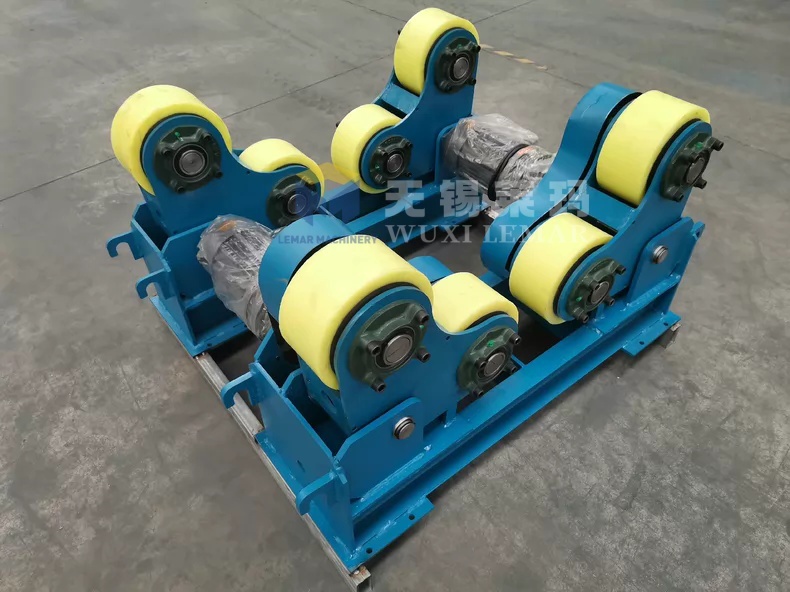

This 20 ton self-aligning welding rotator is automatic welding auxiliary equipment. The roller support angle can adjust automatically according to workpiece diameter, no manual adjustment required. It is widely used for circumferential seam welding of pressure vessels, tanks, pipes and cylindrical workpieces. Adopt frequency conversion stepless speed regulation, stable rotation, PU roller protects workpiece surface from scratch.

600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding

Technical Specifications
Item Specification
Model ZT-20
Rated Load 20 Ton
Workpiece Diameter Range 600-4000 mm
Roller Material Polyurethane PU
Roller Size Φ300×140 mm
Rotating Speed 100-1000 mm/min
Speed Control VFD stepless speed regulation
Motor Power 2×0.75 KW
Input Voltage 380V, 3 Phase, 50Hz
Control Wired pendant control
Key Features
600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding
  • Self-aligning design: rollers automatically adjust angle to fit different cylinder diameters, save setup time
  • Heavy welded steel base, strong rigidity, stable running under full load
  • PU rollers, high friction, wear-resistant, avoid scratching stainless steel surface
  • VFD speed control, wide speed range, smooth start and stop
  • Built-in overload protection, safe operation
  • Easy to combine with automatic welding machine for auto circumferential welding
Applications
  • Pressure vessel manufacturing
  • Tank & boiler production
  • Pipe spool fabrication
  • Wind power cylinder welding
  • Cylindrical parts assembly & polishing

600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding600–4000mm 20 Ton Self-Aligning Welding Rotator, Self Adjust Turning Rolls for Tank & Pipe Welding

Frequently Asked Questions
Q1: Does this rotator need manual adjustment for different pipe diameters?
A1: No, it is self-aligning type, the roller angle will adjust automatically.
Q2: Can it work with automatic welding machine?
A2: Yes, it can match various auto welding systems for circular seam welding.
Q3: What's the voltage? Can customize voltage?
A3: Standard 380V 3P, we can customize voltage for different countries.
Q4: What is your warranty period?
A4: 12 months warranty, lifelong technical support.
