Specifications
Payment Terms :
T/T,D/P,D/A,L/C
Roller Linear Speed :
6-60m/H
Model Number :
ZTG-3
Rotaion Speed :
0.1-1rpm
MOQ :
1
Delivery Time :
10-20 work days
Rubber Roller Diameter :
300mm
Speed Mode :
AC Variable Frequency Stepless Speed Regulation
Packaging Details :
100.00cm * 80.00cm * 55.00cm
Price :
500-1000USD
Wheel Roller Width :
25mm
Supply Ability :
500 units/month
Motor Power :
2*0.37kw
Certification :
CE
Load Capacity :
3 Tons
Brand Name :
LEMAR
Model NO. :
ZTG-3
Place of Origin :
WUXI
Suitable Pipe Diameter :
50-2000mm
Description
3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls
Product Overview
The 3 Ton Self-Aligning Welding Rotator (3000kg load capacity) is auxiliary equipment for circumferential welding of cylinders, pipes, and small tanks. It adopts frequency conversion speed regulation to drive cylindrical workpieces rotating smoothly. This equipment reduces welder workload and improves welding bead quality. The self-aligning design automatically adapts to different workpiece diameters, while PU rollers protect the workpiece surface. Compatible with SAW, MIG, and TIG welding for small and medium pressure vessels, pipes, and stainless steel tank fabrication.

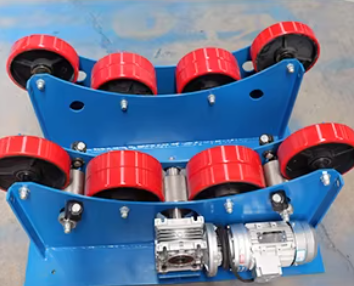

3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls
Product Specifications
Item Specification
Rated Load 3000kg (3Ton)
Workpiece Diameter Range 200-1200 mm
Roller Material PU / Rubber
Drive Type Frequency inverter stepless speed
Linear Speed 100-1000 mm/min
Motor Power 0.37kW
Power Supply 380V/50Hz (220V/415V customizable)
Type Self-aligning
Control System Control box + foot pedal
Product Advantages

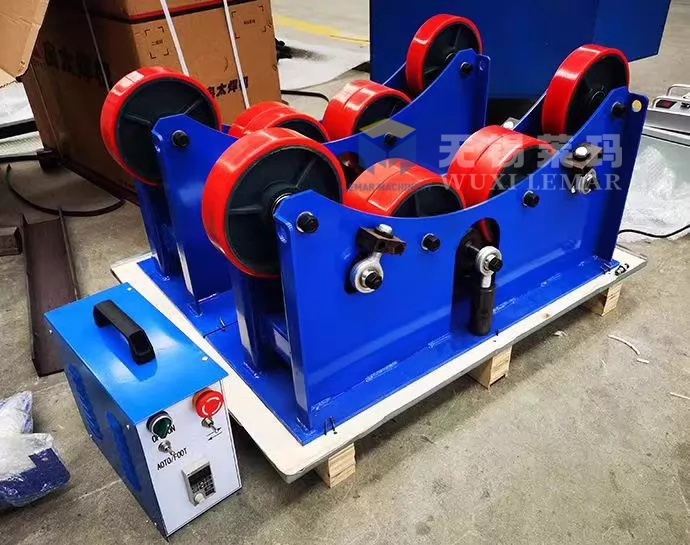

3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls
  • Self-aligning & Easy Installation: Automatic centering, no manual adjustment for different pipe diameters, saves setup time.
  • Stepless Frequency Speed Control, Stable Rotation: Frequency inverter enables continuous adjustable speed, uniform workpiece rotation for consistent weld appearance.
  • PU Rollers to Protect Workpiece: Polyurethane rollers with high friction, no scratches on carbon steel and stainless steel surfaces.
  • Compact Heavy-duty Frame: Stress relieved welded frame, solid structure and space-saving for small workshops.
  • Safety Protection Design: Equipped with foot pedal, forward/reverse control and overload protection for safe operation.
  • Wide Welding Process Compatibility: Works with MIG, TIG, SAW. Easy to match auto welding torch for semi-auto girth welding.
  • Simple Maintenance & Low Failure Rate: Proven transmission structure, fewer wearing parts, simple daily maintenance.
Application Industry
  • Pipe Fabrication: Girth welding for carbon steel and stainless steel pipe joints.
  • Small Pressure Vessel: Welding of small air storage tanks, heat exchange cylinders and pressure shells.
  • Environmental Protection Equipment: Fabrication of small dust removal barrels, purification tanks and ventilation cylinders.
  • Stainless Steel Water Tank: Circumferential welding for small heat preservation tanks and sanitary water tank barrels.
  • Mechanical Components: Welding of hydraulic cylinders, oil cylinder barrels and small tubular parts.
  • Metal Fabrication: Processing of rolled cylinders, flange and cylindrical structures.
  • Repair & Remanufacturing: Reconditioning and welding of old cylinders and pipelines.

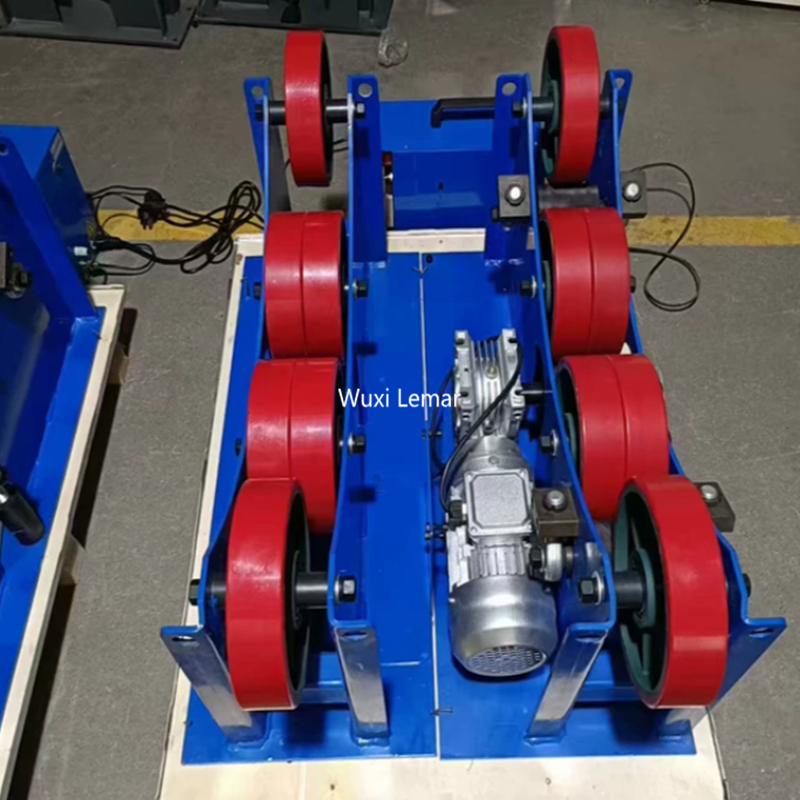

3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls

Frequently Asked Questions
Q1: Can this turning roll weld stainless steel workpieces?
A: Yes. PU rollers will not scratch stainless steel surface.
Q2: Is rotation speed adjustable?
A: Yes, stepless speed regulation via frequency converter.
Q3: Can we customize the voltage?
A: Yes, 220V, 415V and other overseas voltages are available.
Q4: What is the lead time?
A: Standard model in stock within 7 days, customized models within 15 days.
After Sales Service
3 Ton Self-Aligning Welding Rotator, 3000kg Pipe & Tank Welding Turning Rolls
  • 12-month warranty for the whole machine, excluding wearing parts.
  • English operation manual and electrical drawings provided.
  • Remote video support for installation, commissioning and troubleshooting.
  • Long-term supply of spare parts.
