3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
Specifications
Lifting Speed :
1000 mm Min
Optional :
Welding Positioner,Welding Rotator
MOQ :
1
Delivery Time :
10-20 work days
Fine Tuning Cross Slide :
150×150 mm Motorized Fine Adjustment
Payment Terms :
L/C,D/A,D/P,T/T
Voltage :
380V
Model Number :
Hj3030 (3X3m)
Operation Mode :
Hand Pendant Remote Control
Price :
500-1000USD
Vertical Stroke :
3000mm
Certification :
CE
Control Mode :
Industrial Handheld Pendant Control
Supply Ability :
500 units/month
Model NO. :
Hj3030 (3X3m)
Brand Name :
LEMAR
Applicable Cylinder Diameter :
500-2000 mm
Packaging Details :
220.00cm * 130.00cm *200.00cm
Max Boom End Load :
200 Kg
Place of Origin :
WUXI
Description
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
Product Overview

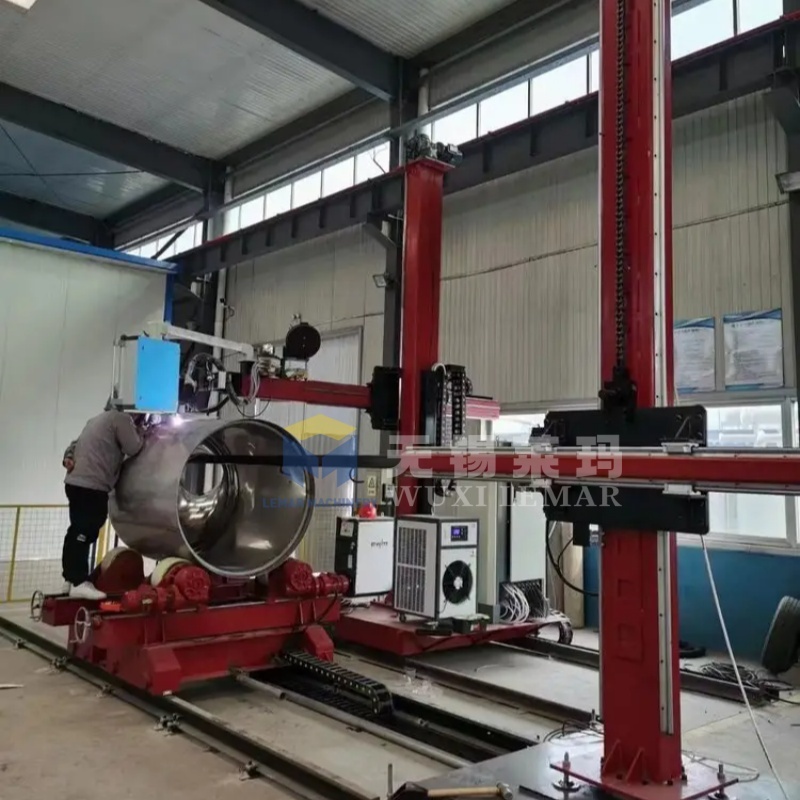

This 3m×3m column & boom welding manipulator (welding cross arm) features 3000mm vertical lifting stroke and 3000mm horizontal boom extension. When matched with welding rotator, welding positioner and welding power source, it forms a complete automatic welding workstation. It supports SAW, MIG and TIG welding for inner and outer longitudinal & circumferential seams of cylindrical workpieces.

3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding

Main Features
  • 3000mm vertical travel and 3000mm horizontal boom stroke
  • Stress-relieved box-type column and boom, high structural rigidity and low deformation
  • Variable frequency stepless speed control for stable boom movement
  • Anti-fall safety lock and travel limit switches for double safety protection
  • Hand pendant remote control, simple operation
  • Max 200kg load capacity at boom end, compatible with SAW/MIG/TIG welding torch
  • Optional seam tracker, welding oscillator and flux recovery system
  • Custom voltage available for global markets
  • CE related documents can be supplied for EU customs clearance
Technical Parameters
Item Specification
Model LHC3030
Vertical Stroke 3000mm
Horizontal Boom Stroke 3000mm
Max Load at Boom End 200kg
Vertical Speed 100-1000 mm/min
Horizontal Speed 120-1200 mm/min
Control Mode Hand pendant remote control
Applicable Welding Method SAW, MIG, TIG
Power Supply 380V 50Hz, customizable
Column Rotation Manual / Motorized optional
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding
Application Scope
  • Welding of carbon steel and stainless steel storage tanks & pressure vessels
  • Longitudinal and circumferential seam welding for boiler and heat exchanger shells
  • Fabrication of large diameter pipes and cylindrical metal workpieces
  • Steel structure manufacturing and heavy metal processing workshop
  • Matched with welding rotator to build automatic tank welding workstation
  • SAW, MIG, TIG welding for petrochemical and metallurgical equipment

3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding

Optional Configuration
  • Welding seam tracker
  • Welding oscillator
  • Flux recovery & delivery system for SAW
  • Torch cross slide for fine adjustment
  • Motorized rotating column base
  • Rail-type mobile traveling base
  • Special voltage for Europe, South America, Southeast Asia
Packing & Shipment
3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding3x3m Column & Boom Welding Manipulator for SAW MIG TIG Automatic Welding

Main frame wrapped with plastic film; control cabinet packed in export plywood case.

Loading Port: Shanghai / Ningbo / Qingdao

Lead Time: 15-25 working days after deposit received

Trade Terms: EXW, FOB, CFR, CIF, available

We can provide estimated packing list for freight evaluation.

Frequently Asked Questions
Q1: What welding processes does this 3x3m manipulator support?
A: It supports SAW submerged arc welding, MIG/MAG and TIG welding.
Q2: Can it work together with welding rotator?
A: Yes. It is widely matched with self-aligning welding rotator to build automatic tank welding station.
Q3: What is the maximum load at boom end?
A: Max 200kg, enough for SAW welding head, flux hopper and wire feeder.
Q4: Can you customize voltage or install seam tracker?
A: Yes, customized voltage and optional accessories such as seam tracker are available.
Q5: Can you provide CE documents for EU import?
A: Yes, we can offer ICR verification certificate plus manufacturer CE DoC for customs clearance.
