MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
Specifications
Brand Name :
Lemar
Model Number :
HJ5050
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500-10000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10 set/month
Delivery Time :
20 days
Packaging Details :
Export standard package
Other Name :
Cross welding manipulator
Column effective stroke :
5000mm
Boom effective stroke :
5000mm
Welding :
Surbmerged arc welding/MIG welding/TIG Welding
Suitable tanks diameter :
700-5000mm
Optional :
Welding rotator or welding positioner
Duration :
20 days
Monitor :
Optional
Movable :
Yes or no/Customized
Trolley :
Optional
Description
HJ5050 MIG Welding Manipulator - Longitudinal Seam Welding System
In heavy manufacturing, steel structures, and pressure vessel industries, welding processes often require switching between MIG/MAG and SAW welding methods due to variations in workpiece material, plate thickness, and specific weld requirements.
Wuxi Lemar's multi-functional MIG/MAG welding manipulator is an automated welding system featuring a modular design that enables rapid process switching. This versatile equipment allows you to handle multiple welding applications with a single machine, maximizing your return on investment.
Key Features & Capabilities

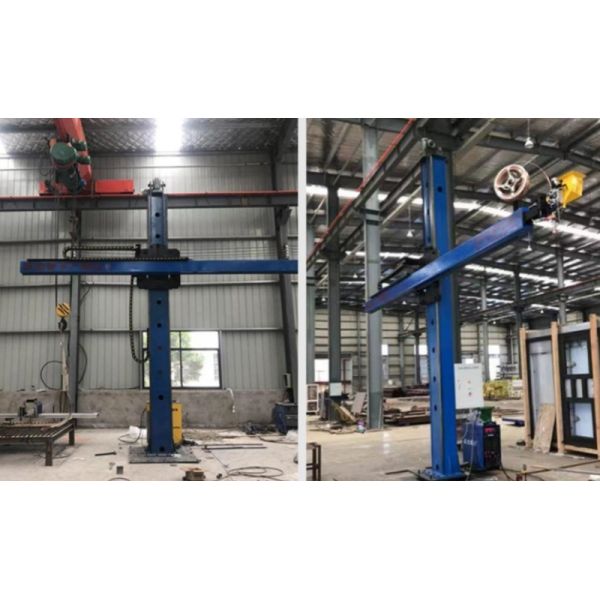

  • The welding head is mounted at one end of a crossbeam, providing vertical movement and horizontal extension/retraction capabilities
  • The column is mounted on a trolley via a rotary table with ±180° rotation capacity
  • Crossbeam extension and retraction are frequency-controlled for stable speed operation

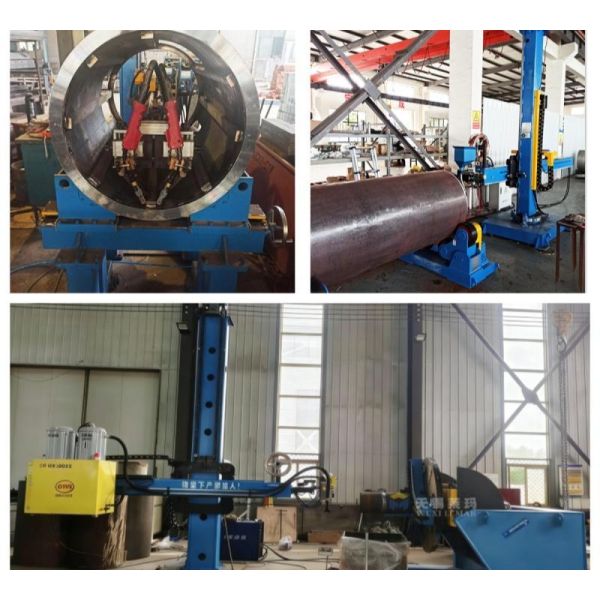

  • Compatible with welding rotary tables, roller frames, and other positioners for internal/external circumferential welds, longitudinal welds, and surfacing welds on cylinders
  • Standard interface allows quick interchange between MIG/MAG welding torch and SAW welding head within minutes
  • Simultaneous switching of wire feeding mechanism, flux delivery and recovery system, and corresponding control parameters for multi-purpose functionality
MIG Welding Manipulator 5000mm Column Boom Welding Machine For SAW Welding
Technical Specifications
Model HJ-2020 HJ3030 HJ4040 HJ4050 HJ5050 HJ6060 HJ7070
Column Effective Stroke 2000mm 3000mm 4000mm 4000mm 5000mm 6000mm 7000mm
Boom Effective Stroke 2000mm 3000mm 4000mm 5000mm 5000mm 6000mm 7000mm
Welding Source: TIG / Submerged Arc Welding / MIG Welding
Trolley: With or Without
Rotation: Electric Type or Manual type according to customer request
Welding Tracking: Customized
Voltage: 380V or Customized
Other Options: Welding Positioner or Welding Rotator
