SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding
Specifications
Brand Name :
Lemar
Model Number :
HJ7070
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
500-10000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10 set/month
Delivery Time :
20 days
Packaging Details :
Export standard package
Other Name :
Cross welding manipulator
Column effective stroke :
7000mm
Boom effective stroke :
7000mm
Welding :
Surbmerged arc welding/MIG welding/TIG Welding
Suitable tanks diameter :
700-6500mm
Optional :
Welding rotator or welding positioner
Duration :
20 days
Monitor :
Optional
Movable :
Yes or no/Customized
Trolley :
Optional
Description

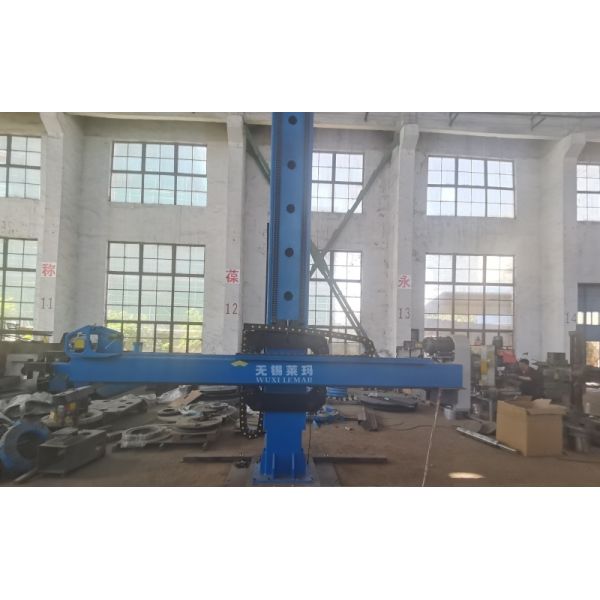

HJ7070 SAW Welding Manipulator with Movable Trolley for Pipeline Orbital Welding
The HJ7070 SAW Welding Manipulator with movable trolley for pipeline orbital welding features a robust structure and exceptional load-bearing capacity, designed for heavy-duty thick plate welding applications in pressure vessels and wind turbine towers. When integrated with high-power submerged arc welding (SAW) or gas shielded welding (GSAW) power sources, this system efficiently handles plate thicknesses ranging from 10mm to several hundred millimeters.
The manipulator's stable walking mechanism and precision control system ensure accurate trajectory control and consistent arc stability during extended, high-current welding operations. This performance meets the rigorous quality standards of pressure vessel and wind turbine tower industries for weld flaw detection and mechanical property requirements.
HJ7x7 Manipulator Core Parameters
  • Vertical lifting stroke of the boom: 7 meters (from ground level)
  • Horizontal extension stroke of the boom: 7 meters
  • Maximum load capacity at welding torch tip: 300kg-500kg (including welding head, wire feeder, tracking system)
  • Specific load capacity calculated based on your configured welding process and equipment

SAW Welding Column And Boom 7000mm Stroke For Submerged Arc Welding

Technical Specifications
Model HJ-2020 HJ3030 HJ4040 HJ4050 HJ5050 HJ6060 HJ7070
Column Effective Stroke 2000mm 3000mm 4000mm 4000mm 5000mm 6000mm 7000mm
Boom Effective Stroke 2000mm 3000mm 4000mm 5000mm 5000mm 6000mm 7000mm
Welding Source: TIG / Submerged Arc Welding / MIG Welding
Trolley: With or Without
Rotation: Electric Type or Manual type according to customer request
Welding Tracking: Customized
Voltage: 380V or Customized
Why Choose Wuxi Lemar?
Advanced Weld Seam Tracking Technology
Large workpieces may exhibit slight ovality or assembly errors during assembly. The HJ7070 SAW Welding Manipulator can be equipped with a laser vision weld seam tracking system that scans the bevel profile in real time, automatically identifies the weld seam center position, and dynamically adjusts the position of the cross arm or cross carriage for correction. This ensures precise torch alignment with the weld seam, achieving high-precision, teach-free automated welding even with dimensional deviations in workpieces.
Comprehensive Customized Solutions
We offer complete welding manipulator solutions integrating roller rotators for large cylindrical workpieces. Our systems combine Column and Boom Manipulators with adjustable welding roller rotators, enabling coordinated operation under unified control systems to automate circumferential seam welding in cylindrical structures. Additionally, we provide full customization services including cross carriages, welding positioners, traveling trolleys, and dust removal systems, designing optimal solutions based on your specific workpieces and production processes.
