2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
Specifications
Model Number :
HJ2020
Vertical Effective Stroke :
2000m
Certification :
CE
Horizontal Effective Stroke :
2000mm
Price :
500-1000USD
Telescopic Speed :
120–1200mm/min(VFD Stepless)
MOQ :
1
Delivery Time :
10-20 work days
Lifting Speed :
1000mm/min
Control System :
Main Cabinet + Handheld Pendant
Payment Terms :
D/P,T/T,D/A,L/C
Column Rotation :
±180° Electric Rotation
Supply Ability :
500 units/month
Drive Mode :
Rack & Pinion Inverter Drive
Brand Name :
LEMAR
Model :
2020 Welding Manipulator (2m×2m)
Packaging Details :
220.00cm * 120.00cm * 200.00cm
Place of Origin :
WUXI
Boom End Rated Load :
100kg
Description
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
Product Introduction

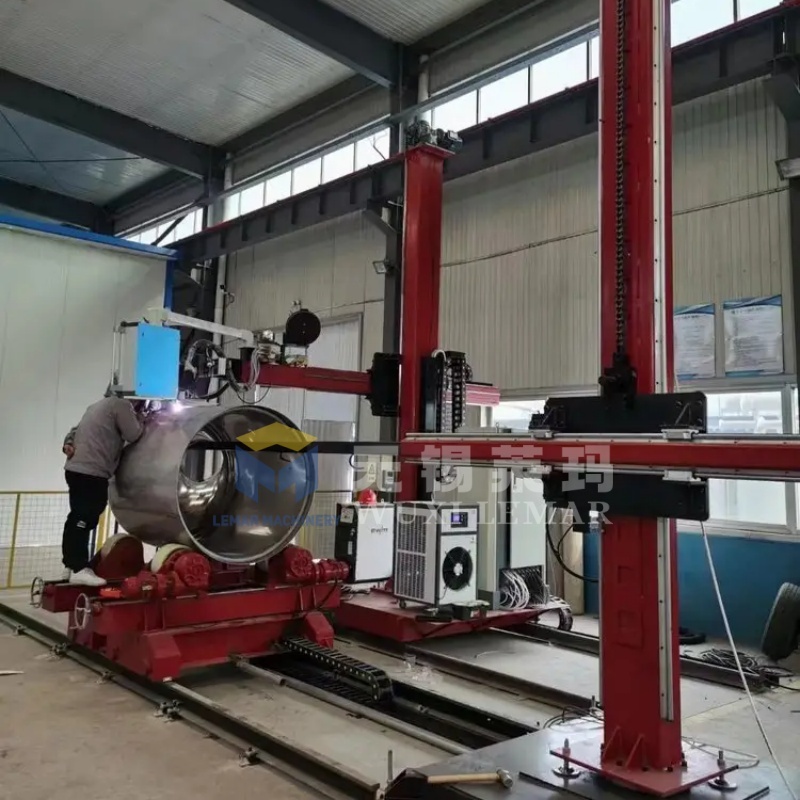

The 2020 model 2×2m welding manipulator, also known as welding column and boom or welding cross arm, is specifically engineered for automatic welding applications in storage tanks, pressure vessels, boiler cylinders, and tubular workpieces. With a 2000mm vertical stroke and 2000mm horizontal stroke, this machine delivers stable and precise automatic welding for longitudinal seams as well as inner and outer circumferential seams. The entire unit undergoes stress relief treatment, ensuring high rigidity, vibration-free operation, and stable running performance, significantly enhancing welding quality and production efficiency.

2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank

Core Advantages
  • High rigidity box-type structure with integral stress relief treatment for durability and deformation resistance
  • VFD stepless speed regulation for stable running and repeatable welding parameters
  • Electric ±180° column rotation for flexible multi-angle welding operations
  • Multi-process compatibility: SAW, MIG/MAG, TIG, and hardfacing welding
  • Synchronous linkage interface available for integration with rotators and positioners
  • Handheld pendant control for simple operation and labor cost savings
  • Comprehensive safety protection including overload protection and emergency stop devices
  • OEM/ODM customization support with CE certification available
Technical Parameters
Item Specification
Model 2020 Welding Manipulator (2m×2m)
Vertical Effective Stroke 2000mm
Horizontal Effective Stroke 2000mm
Boom End Rated Load 100kg
Lifting Speed 1000mm/min
Telescopic Speed 120-1200mm/min (VFD Stepless)
Column Rotation ±180° Electric Rotation
Drive Mode Rack & Pinion Inverter Drive
Control System Main Cabinet + Handheld Pendant
Welding Process SAW / MIG / MAG / TIG / Hardfacing
Optional Base Fixed Base / Mobile Trolley
Input Voltage 380V/415V Customizable
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
Application Scope
  • Storage Tank Industry: Automatic welding of longitudinal and circumferential seams for oil tanks, fire water tanks, and chemical tanks
  • Pressure Vessel Industry: Precision welding for various cylindrical pressure vessels and boiler barrels
  • Petrochemical Equipment: Automatic welding for petrochemical cylindrical vessels and process equipment
  • Mechanical Manufacturing: Long straight seam continuous welding and surface hardfacing for cylinder parts
  • Steel Structure Engineering: Automatic welding for large cylindrical structural components

2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank

Matching Solutions
  • Standard Tank Welding System: 2×2m Manipulator + SAW Welder + Welding Rotator
  • Site Construction Welding System: 2×2m Manipulator + MIG Welder + Rotator
  • Small Vessel Welding System: 2×2m Manipulator + Welding Positioner

Optional parts include: Welding oscillator, cross slide, flux recovery, laser seam tracker, and wireless remote control.

Packing & Delivery
2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank2020 Welding Manipulator 2x2m Column and Boom Automatic Welding Cross Arm for Storage Tank
  • Packing: Fumigated wooden case with separate packing for frame and electric components
  • Shipping: Sea freight, air freight, and combined transport options
  • Trade Terms: FOB, CFR, CIF, DAP, DDP acceptable
  • Lead Time: 20-30 working days after deposit
