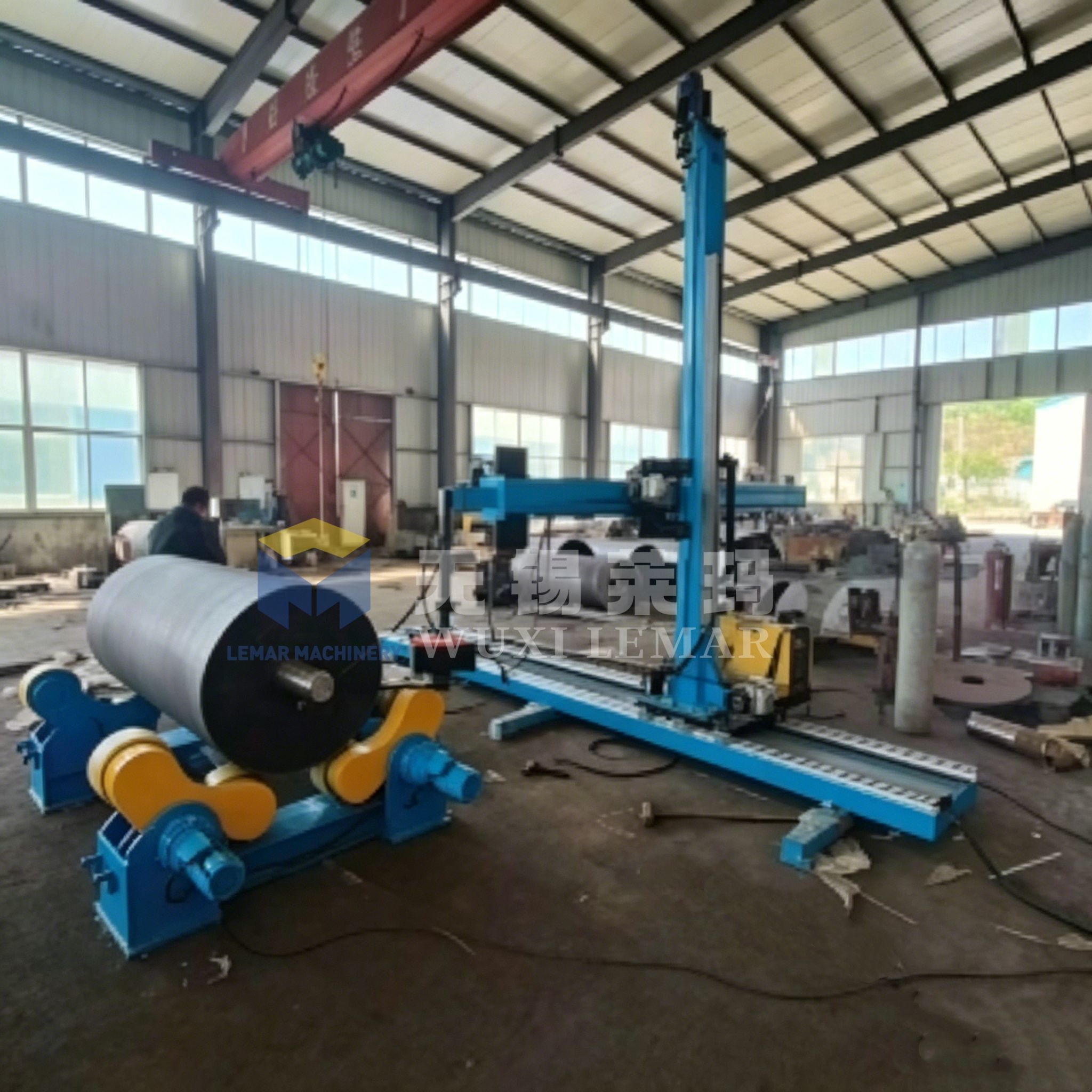

Model 3030 welding manipulator features 3000 mm vertical lifting stroke and 3000 mm horizontal boom stroke. Heavy-duty square rail structure guarantees high rigidity and low vibration during automatic welding. It works cooperatively with welding rotators or positioners to finish circumferential and longitudinal seams for tanks, pressure vessels and cylindrical workpieces. It supports SAW, MIG/MAG welding processes and is widely adopted in automatic heavy-duty welding workshops.

• 3000 mm vertical lifting and 3000 mm horizontal extension stroke, electric ±180° column rotation for wide-range torch positioning
• Precision machined square guide rail structure effectively suppresses boom shaking to secure stable welding arc
• Frequency-conversion stepless speed adjustment for boom lifting and traversing; travel speed matches welding requirements precisely
• Maximum 200-250 kg end-boom load, compatible with submerged-arc welding head, wire feeder and flux recovery system
• Reserved synchronous signal interface for linkage with welding rotator to achieve fully automatic circular-seam welding

• Combine with self-aligning welding rotator to complete full-automatic circumferential seam welding station
• Match submerged-arc welding power source plus flux recycling device for high-efficiency tank welding
• Equip motorized travelling base for workpiece switching among multiple working zones
• Install weld seam tracker or welding monitoring camera for higher welding consistency
• Cooperate with heavy-duty positioner for special-shaped cylinder and offset workpiece welding

• Motorized travelling base for whole-unit horizontal movement
• Weld seam tracking system and real-time welding monitoring camera
• Flux recovery & recycling system matched for submerged-arc welding
• Reinforced boom structure for heavier welding-head load
• Special voltage, frequency and control-panel language for overseas workshops

Each manipulator passes strict factory running inspection before shipment. Factory test documents are provided. We supply remote operation guidance, parameter debugging and long-term spare-parts supply for global buyers.
