3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
Specifications
Model Number :
HJ
Voltage :
110V/220V
Price :
500-1000USD
Horizontal Boom Stroke :
1500mm
Certification :
CE
Condition :
New
MOQ :
1
Delivery Time :
10-20 work days
Optional Device :
Cross Slide
Exported to :
Finland, Russia, France, Canada, Greece etc
Payment Terms :
T/T,D/P,D/A,L/C
Vertical Lifting Stroke :
3000mm
Supply Ability :
500 units/month
Trolley Moving Speed :
800-2000mm/Min
Brand Name :
LEMAR
Model NO. :
3*1.5M Welding Manipulator
Packaging Details :
300.00cm * 150.00cm * 120.00cm
Place of Origin :
WUXI
Tool Type :
TIG MIG Welding Manipulator
Description
3×1.5m Welding Manipulator Column And Boom
Automatic Welding Auxiliary Equipment for Tank & Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding

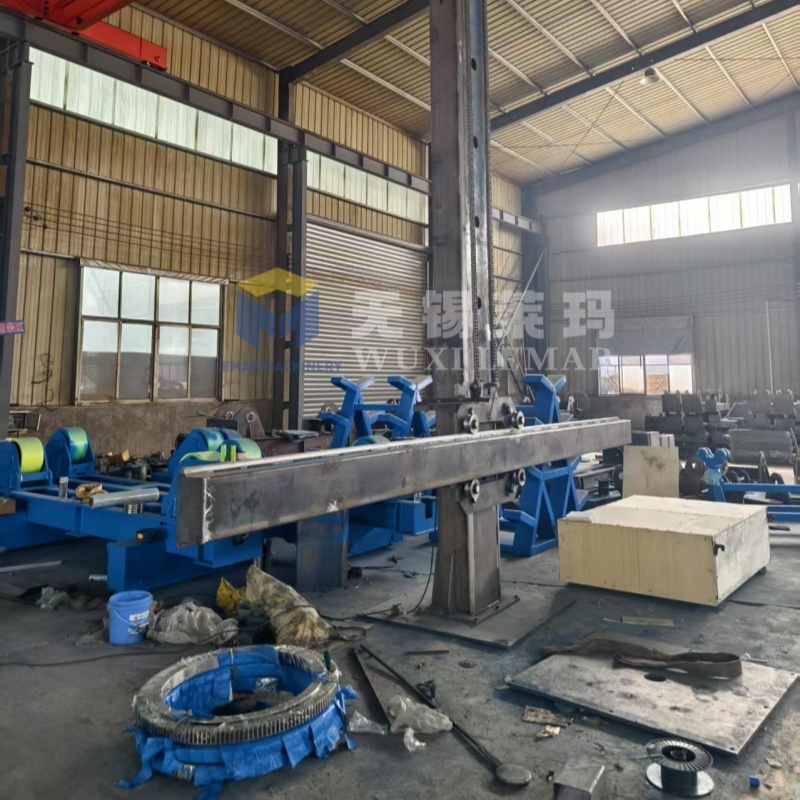

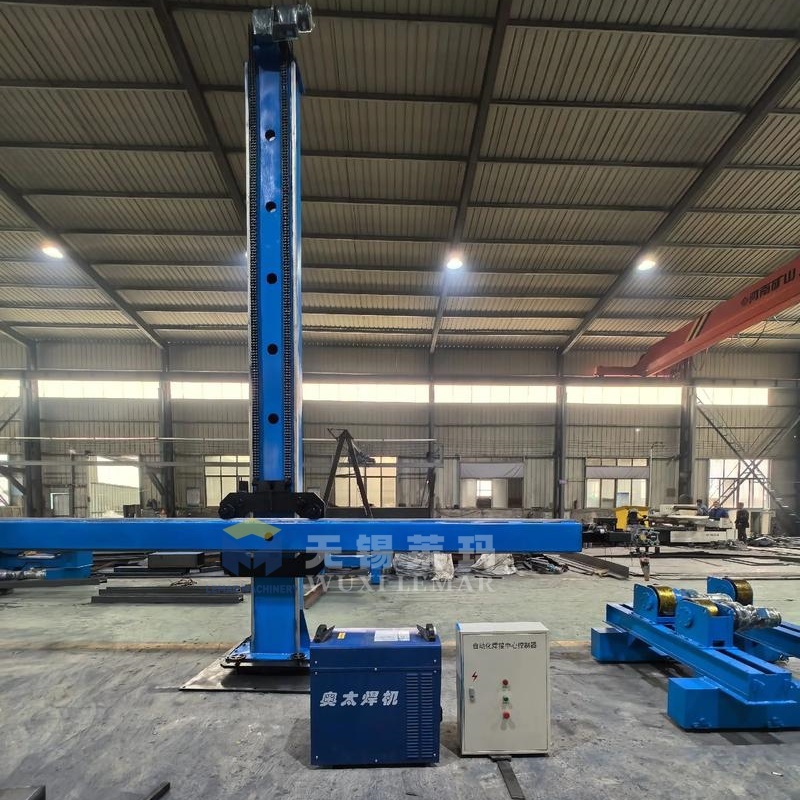

3×1.5m welding manipulator (3m horizontal stroke, 1.5m vertical stroke). Heavy-duty column & boom welding auxiliary equipment, designed to work with welding rotators and positioners for inner and outer longitudinal and circumferential seam welding of tanks, pressure vessels, and steel pipes. Features stable variable-frequency speed control, optional column rotation and traveling base, with CE certification available.
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
Key Features
  • Heavy-duty welded steel column & boom structure with high rigidity, anti-deformation design for long-term heavy-duty workshop operation
  • 3m horizontal stroke, 1.5m vertical stroke with variable-frequency stepless speed adjustment for boom extension and lifting, ensuring stable running without jitter
  • Hand-held remote control box with simple parameter setting; includes reserved linkage port to synchronize with welding rotators and positioners
  • Safety protection: anti-fall safety device for boom lifting, brake device for column rotation (optional)
  • Flexible configuration: optional column rotation, traveling trolley, welding oscillator, and flux recovery device according to customer requirements
  • Factory direct supply with complete technical documents; CE certification available upon request
Technical Specifications
Item Parameter
Model 3×1.5m Welding Manipulator
Horizontal Boom Effective Stroke 3000 mm
Vertical Lifting Effective Stroke 1500 mm
Boom End Max Load 100-150 kg
Boom Extension Speed 150-2000 mm/min (VFD stepless speed)
Boom Lifting Speed 80-800 mm/min (VFD stepless speed)
Column Rotation Manual / Motorized optional ±180°
Traveling Trolley Optional
Control Mode Hand pendant + main control cabinet
Applicable Welding Process Submerged-arc welding, MIG/MAG welding
Matching Equipment Welding rotators, welding positioners

3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding

Application
  • Automatic welding for tanks, pressure vessels, steel pipes and cylindrical metal components
  • Applied in pressure vessel manufacturing workshops for circumferential and longitudinal seam welding
  • Suitable for metal fabrication projects in petroleum and chemical industry sectors
  • Perfect for water-treatment equipment production with stable automatic welding performance
  • Can cooperate with welding rotators to achieve high-efficiency welding for cylindrical workpieces

3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding

Optional Accessories
  • Welding oscillator for wider weld seam adjustment
  • Flux recovery & delivery system for submerged-arc welding
  • Motorized column rotation unit ±180°
  • Traveling trolley base for whole-machine movement
  • Wireless hand pendant control box
  • Operator working platform for maintenance
Packing & Shipment
Main frame is packed by seaworthy steel frame; electric control parts adopt fumigated wooden case. Suitable for long-distance sea transportation with anti-rust and shock-proof treatment applied before shipment. We can arrange shipment based on FOB, CFR, CIF trade terms. All shipping marks and documents can be customized according to customer requirements.
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
3*1.5m 3000×1500mm Column & Boom Welding Manipulator for Tank Pipe Welding
Frequently Asked Questions
Q1: Can this 3×1.5m welding manipulator link with welding rotators?
A1: Yes, we reserve linkage interface, it can realize synchronous running with welding rotators.
Q2: What welding methods are supported?
A2: It fits submerged-arc welding, MIG / MAG welding; welding power source is not included.
Q3: Is column rotation and traveling trolley standard?
A3: Column rotation and traveling trolley are optional items, please tell us your actual working condition for configuration suggestion.
Q4: Do you provide CE certificate?
A4: CE documents are available upon request for European market.
