ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
Specifications
Supply Ability :
500 units/month
Control Mode :
Optional PLC or Relay Integrated Control
Model Number :
Zfh500
Welding Method :
Longitudinal Straight Seam Welding Machine
MOQ :
1
Delivery Time :
10-20 work days
Compression Method :
Key Press Compression
Arc Welding Power Source :
TIG Welding/CO2 Welding/Plasma Arc Welding
Payment Terms :
L/C,D/A,D/P,T/T,
Suitable Welding Wire Diameter :
1.0/1.2/1.4/1.6mm
Price :
500-1000USD
Welding Thickness :
0.5-6mm
Certification :
CE
Model :
Zfh-500
Brand Name :
LEMAR
Welding Metal :
Stainless Steel, Iron, Aluminum, Brass
Place of Origin :
WUXI
Effective Welding Length :
500mm

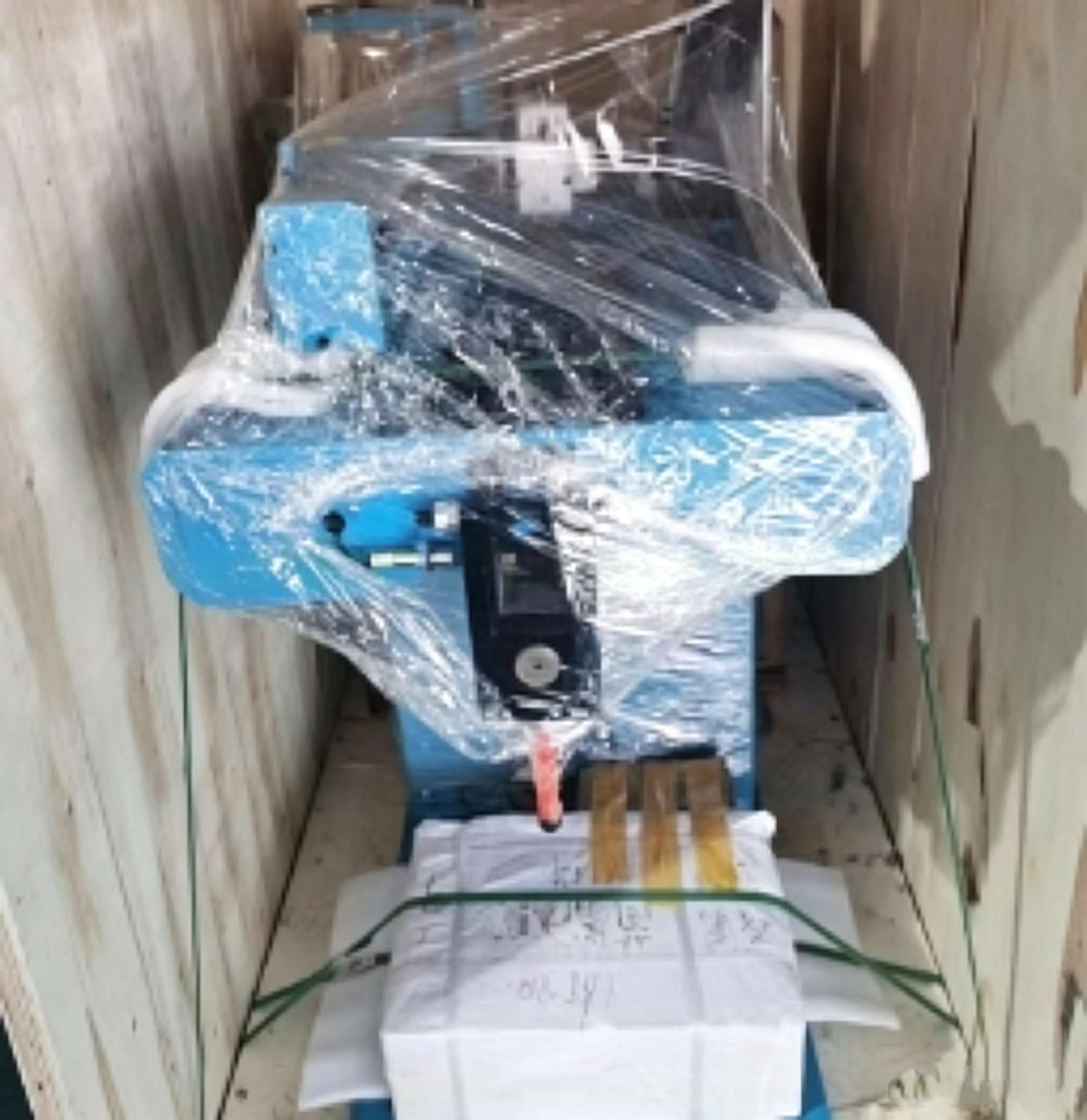

Packaging Details :
100.00cm * 80.00cm * 120.00cm
Description

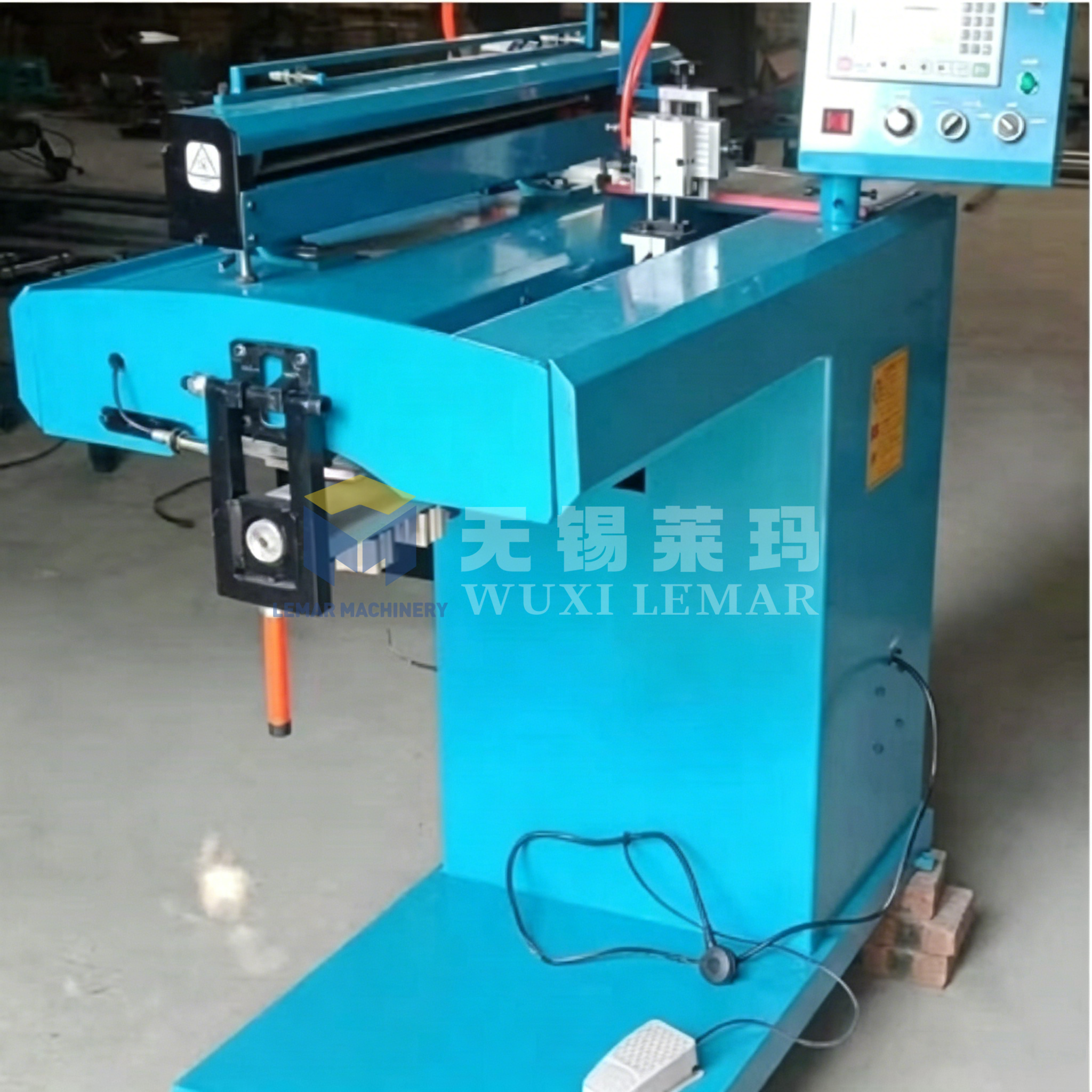

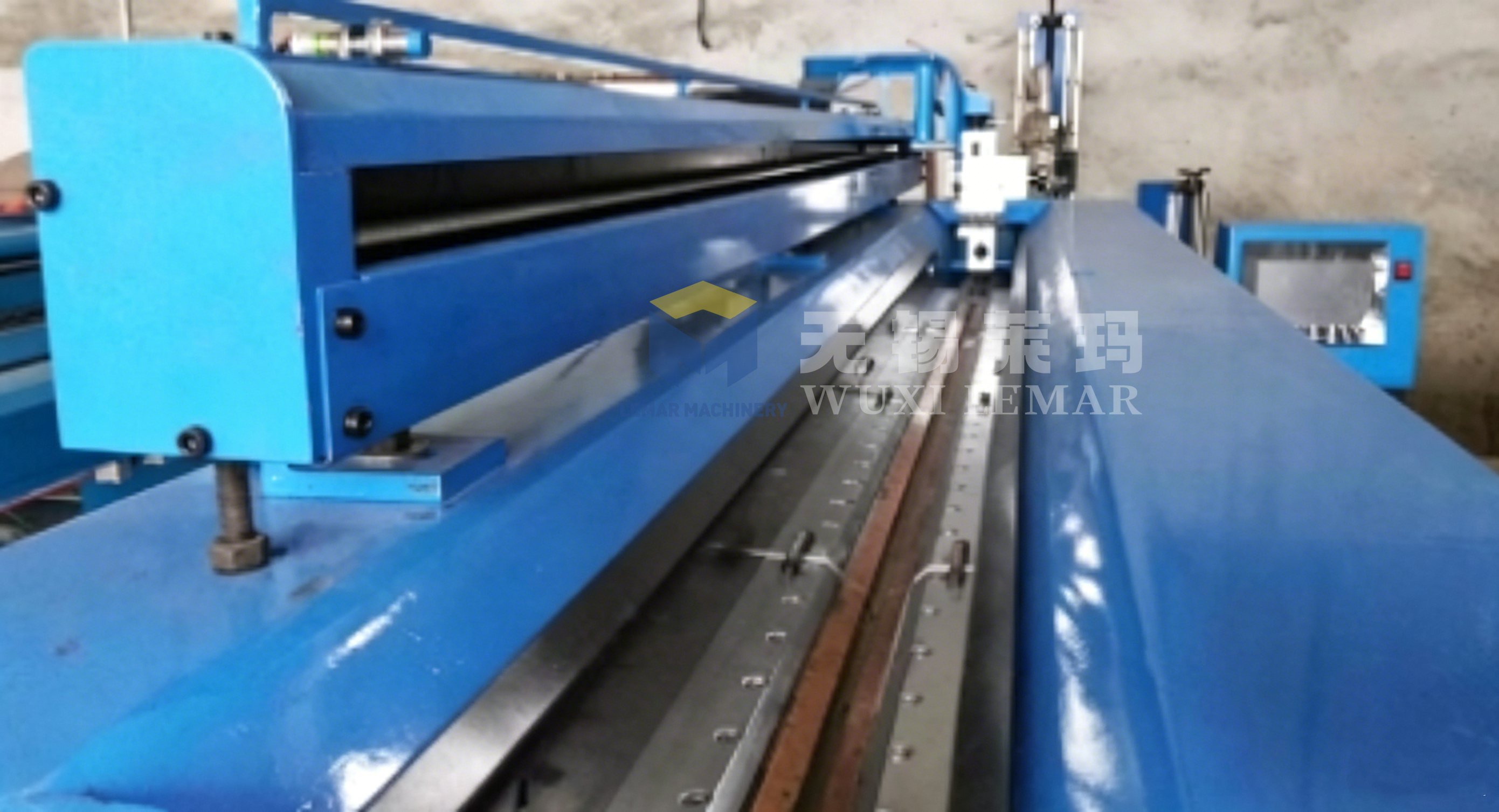

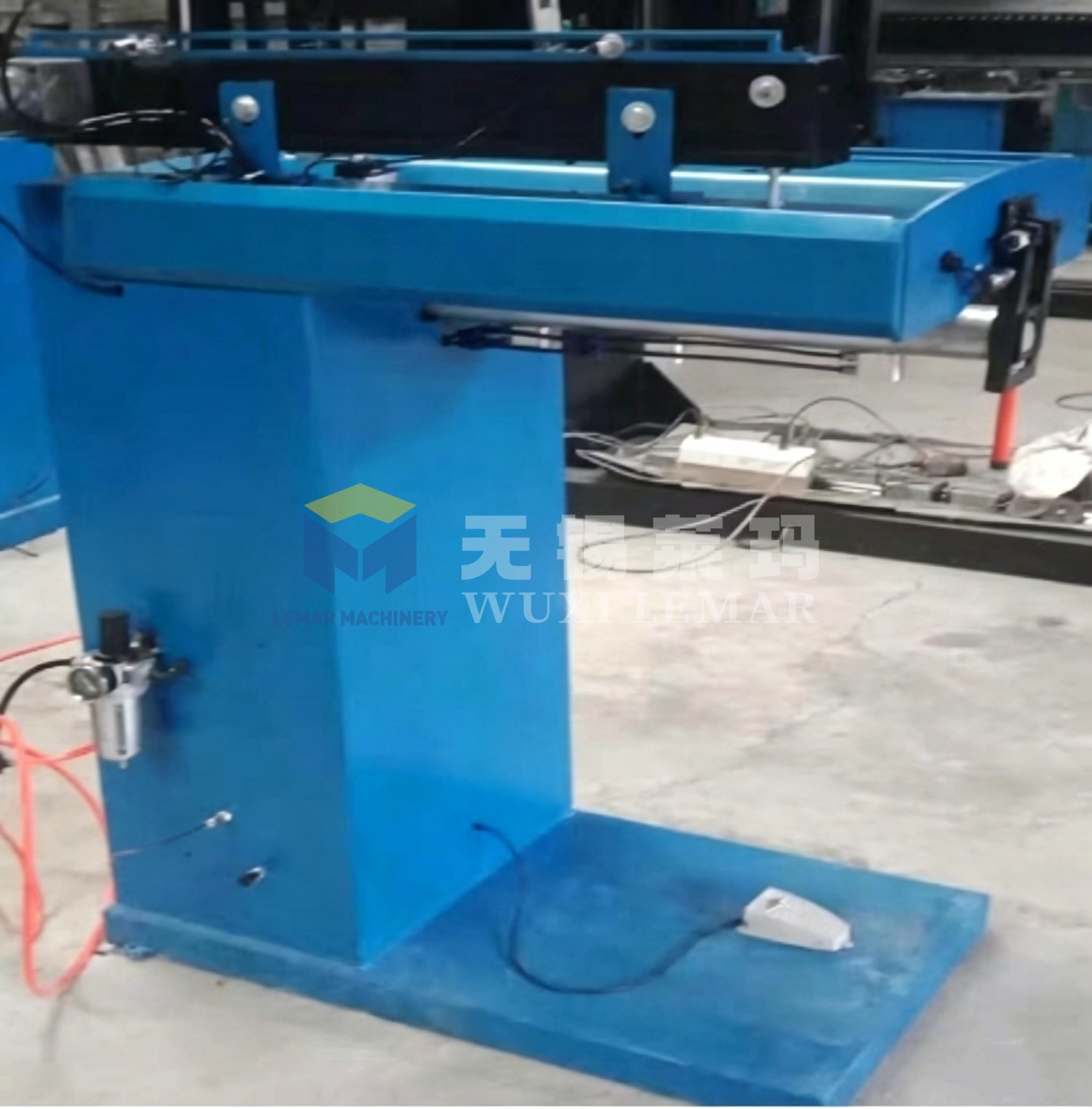

ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
Product Overview
  • Compact structure: Mini body design, saves workshop space, ideal for small workpiece batch welding.
  • Multi-welding support: Compatible with TIG, Plasma and MIG welding sources for diverse metal processing.
  • High-quality weld: Pneumatic full-section clamping + copper mandrel with argon back protection, no deformation and no oxidation.
  • High precision: Stepless stable speed, consistent weld seam, low rework rate.
  • Wide applicability: Suitable for 0.3-3mm stainless steel, carbon steel and aluminum thin plates.
Technical Specifications
Item Specification
Model ZFH500 Straight Seam Welding Machine
Max Welding Length 500mm
Applicable Thickness 0.3-3mm stainless steel / carbon steel / aluminum
Applicable Workpiece Small cylinder, pipe, thin sheet short seam splicing
Welding Precision ±0.2mm
Welding Speed 100-1200mm/min stepless adjustable
Clamping System Full pneumatic uniform clamping

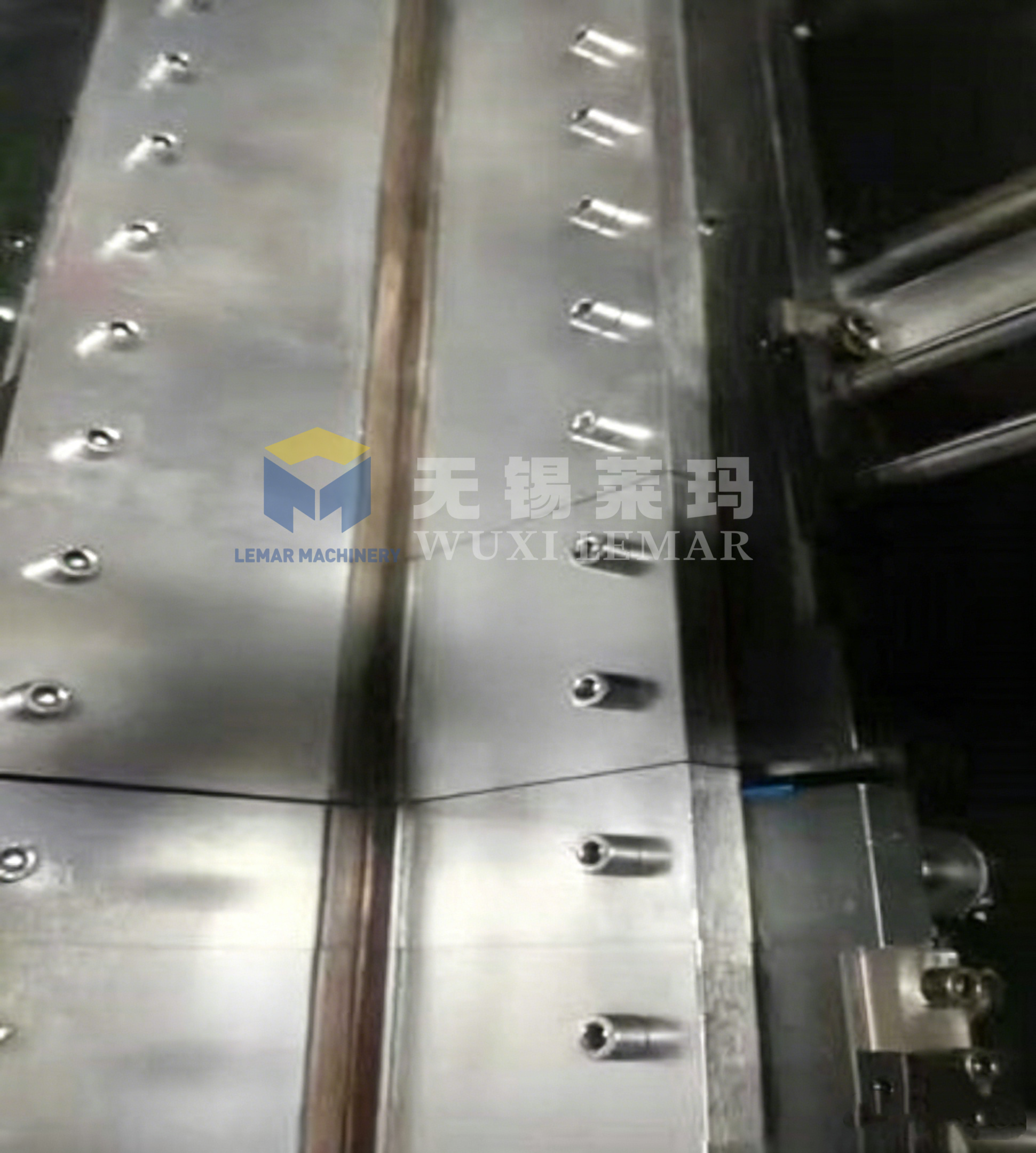

Back Forming Copper mandrel + argon back shielding
Matching Welding Source TIG / Plasma / MIG
Control System Standard panel / Optional PLC touch screen
Input Voltage 380V 50Hz / Custom 220V/415V
Warranty 12 months
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
Factory Advantages
  • Professional welding & cutting equipment direct factory, stable supply & competitive price
  • 100% full machine testing before delivery, CE certificated for export
  • Support OEM & ODM customized service for special workpieces
  • Complete production solution and professional technical support
  • Long-term spare parts supply and global after-sales service
Optional Configuration
  • PLC intelligent touch screen control system
  • Automatic seam tracking device
  • Customized copper mandrel for special pipe diameter
  • Multi-country custom voltage (220V/415V)
  • Matching TIG/Plasma/MIG welding power source
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe CylinderZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
Welding Equipment Linkage Compatibility
  • Match welding positioner: Can link with rotary positioner to realize automatic circular + straight seam integrated welding for barrel workpieces.
  • Cooperate with welding rotator: Adaptable to roller rotators, suitable for batch production of long tubular and cylinder workpieces.
  • Support assembly line docking: Compatible with automatic feeding and unloading equipment, realizing fully automated welding production line.
  • Universal power source linkage: Perfectly linked with mainstream TIG, Plasma and MIG welding machines for synchronous start-stop operation.
  • Flexible combination: Free combination with different welding auxiliary equipment to upgrade single machine work into automated production.
ZFH500 500mm Automatic Longitudinal Straight Seam Welding Machine for Small Tank Pipe Cylinder
Frequently Asked Questions
Q1: Difference between ZFH500 and ZFH2000?
A: ZFH500 is compact for 500mm short small workpieces, cost-effective for small batch production.
Q2: Weldable materials?
A: 0.3-3mm stainless steel, carbon steel and aluminum alloy.
Q3: Support customization?
A: Custom voltage and mandrel size for different workpieces and countries.
Q4: Need secondary polishing?
A: Weld surface is smooth and non-oxidative, greatly reducing polishing workload.
