D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops
Specifications
Supply Ability :
500 units/month
Hole Standard :
D16 (Φ16mm locating holes, 50×50mm uniform grid spacing)
Model Number :
D16
Hole Tolerance :
H7 precision, hole spacing tolerance ±0.04mm
MOQ :
1 PCS
Delivery Time :
15-25 work days
Overall Flatness :
≤0.1mm per 1000mm
Payment Terms :
D/A,L/C,D/P,T/T
Structure Type :
5-sided full hole 3D design (top + four vertical sides drilled)
Surface Treatment :
Nitriding
Price :
500-1500 USD
Tabletop Thickness :
12mm
Leg Quantity :
4pcs /6pcs /8pcs according to table dimension
Marking :
Laser engraved dual-direction millimeter scale
Certification :
CE
Brand Name :
WUXI LEMAR
Edge Process :
Full rounded R5 anti-collision corners
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Description
D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table For Heavy Equipment Repair Shops

The D16 Industrial Welding Table is a high-precision 3D modular welding table specifically designed for construction, truck, and farm machinery repair workshops. Featuring a standard φ16 50×50mm dense hole system, nitrided wear-resistant surface, and heavy load-bearing steel/cast iron structure, this welding table enables multi-angle fast clamping of deformed frames, hydraulic supports, and thick metal parts.

All matched D16 fixtures are fully interchangeable, and optional mobile legs allow on-site welding beside heavy equipment to reduce hoisting risks. With stable flatness, anti-deformation performance, and CE mechanical safety certification, it serves as a cost-effective, long-lasting core workstation for all heavy equipment overhaul and welding tasks.

D16 Industrial Welding Table For Heavy Equipment Repair Shops D16 Industrial Welding Table For Heavy Equipment Repair Shops
D16 Industrial Welding Table Size Specifications
Table Dimension (L×W mm) Table Thickness Standard Leg Qty Static Load Capacity
1000 × 1000 12mm Q355 Steel 4 pcs 2 Ton
1200 × 1200 12mm Q355 Steel 4 pcs 2.2 Ton
1500 × 1000 12mm Q355 Steel 4 pcs 2.5 Ton
2000 × 1000 12mm Q355 Steel 6 pcs 3.5 Ton
2400 × 1200 12mm Q355 Steel 6 pcs 4 Ton
3000 × 1500 12mm Q355 Steel 8 pcs 5 Ton
Custom Size 3000 × 2000mm 12-20mm Optional Customized Custom load design
Fully Modular Fixture System

Compatible with universal φ16 locking pins; standard workshop accessory kit includes:

  • Positioning components: L-shaped positioning angles, V-blocks, positioning blocks, and rulers
  • Clamping components: Telescopic quick-action clamps, 45°/90° clamps, and screw clamps
  • Locking components: Countersunk quick-locking pins and positioning pins

A single welding table and accessory set enables the completion of all processes, including frame alignment, repair welding of fractured steel plates, bracket refurbishment, and pipe welding.

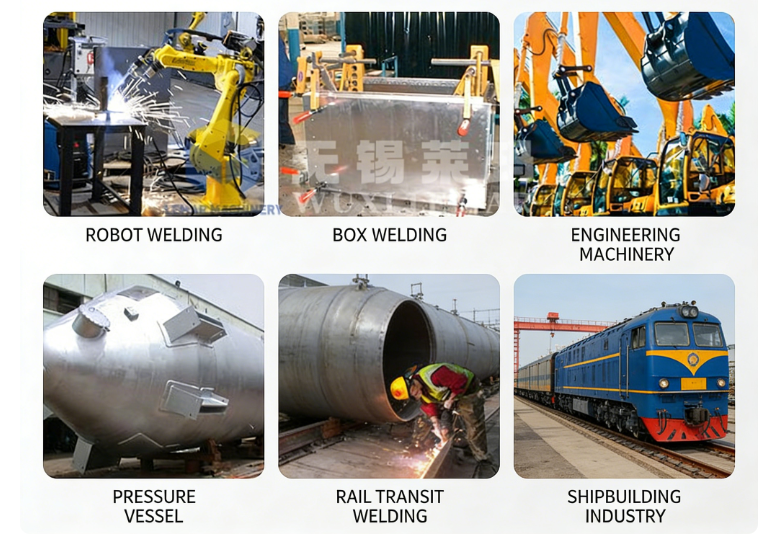

Application Scenarios
D16 Industrial Welding Table For Heavy Equipment Repair Shops
  • Construction Machinery Repair: Excavator Boom/Arm Fracture Welding, Loader Bucket Restoration, Forklift Frame Correction, Hydraulic Cylinder Bracket Renovation
  • Commercial Vehicle Maintenance: Truck Frame Alignment, Truck Suspension Bracket Welding, Trailer Chassis Sheet Metal Repair
  • Mining / Agricultural Equipment Repair: Welding of Combine Harvester Frames, Small Mining Crusher Supports, and Agricultural Engineering Machinery Parts
  • Refurbished Parts Processing: Batch correction, welding, and dimensional inspection of various heavy-duty equipment special-shaped components
Adaptation Advantages
  • The cast iron welding table features outstanding vibration damping, reducing noise by 15%-20% during workpiece tapping, alignment, and polishing operations, meeting workshop noise environmental standards
  • The dense nitrided layer resists slag adhesion, requiring only a wire brush for cleaning without the need for angle grinder polishing, thereby minimizing dust pollution
  • Include dust plugs for all positioning holes to seal them during downtime, preventing debris and oil contamination from clogging the holes and extending the tooling's service life
FAQ
Q: What's your export packing method?
A: IPPC fumigated wooden case with foam buffer protection for tabletop; Fixtures packed in waterproof cartons with anti-rust oil. Meets customs requirements for EU, Australia, Southeast Asia.
Q: What shipping methods can I choose?
A: Sea freight (most cost-effective for bulk orders), China-Europe railway, air freight for small samples, DDP door-to-door delivery with tax & customs clearance handled.
Q: What export certificates and documents can you provide?
A: CE certification, ISO9001 certificate, material test report, nitriding hardness inspection sheet, flatness test report, commercial invoice, packing list, CO, FORM A/FORM E certificate of origin. HS code:73269000/85159000.
Q: Do you offer technical support after purchase?
A: Yes. We provide 7/24 email & WhatsApp video guidance for installation, leveling and fixture matching. Large batch orders support engineer on-site training upon request.

Ready to equip your repair garage with our D16 industrial welding table? Share your needed size, preferred material (nitrided steel / cast iron) and accessory demands. We will reply with an official proforma invoice and full technical specs within 24 hours. Contact us for a no-obligation quotation today.
