60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
Specifications
Supply Ability :
500 units/month
Welding Optional :
Welding Manipulator
Model Number :
ZTG-60
Rotaion Speed :
0.1-1rpm
MOQ :
1
Delivery Time :
10-20 work days
Condition :
New
Rotator Moving :
Manual or Electric
Payment Terms :
L/C,D/A,D/P,T/T
Function :
Pipe Tank Vessel
Price :
500-1000USD
Composed of :
Hydraulic Fit up Rotator and Adjustable Rotator
Certification :
CE
Voltage :
380V 3p 50Hz
Brand Name :
LEMAR
Model NO. :
ZTG-60
Place of Origin :
WUXI
Welding Turning Rolls Type :
Self-Adjusting
Packaging Details :
330.00cm * 220.00cm * 80.00cm
Description
Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding

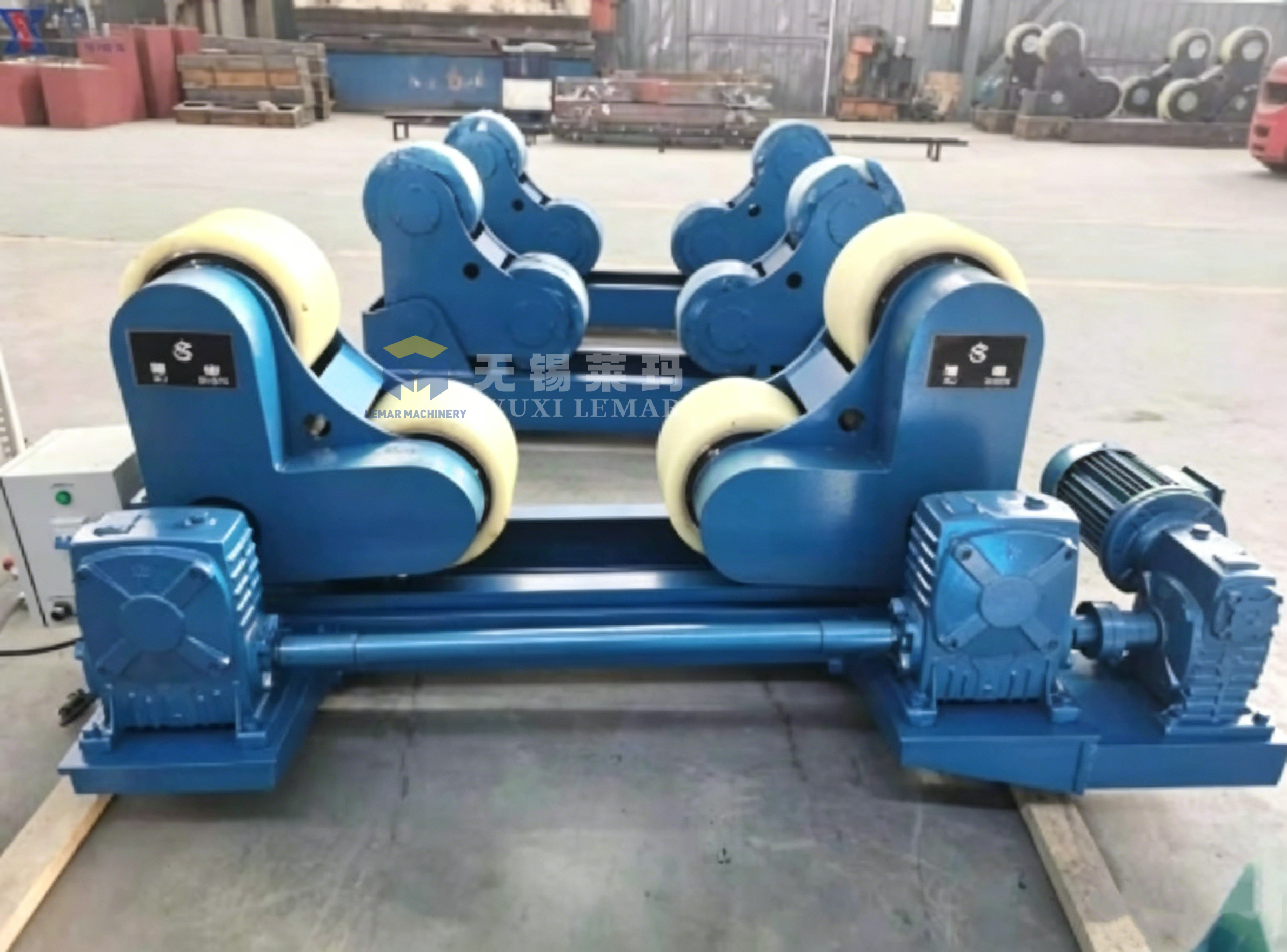

The 60-ton self-aligning welding rotator is heavy-duty automated welding auxiliary equipment designed for large cylindrical workpieces. It consists of one driving frame and one idler frame, which automatically adjust roller positions to accommodate different vessel diameters. Featuring a frequency conversion speed regulation system, it delivers stable low-speed rotation to ensure consistent girth welding quality. Widely used in pressure vessel, wind tower, storage tank, boiler, and heavy pipe manufacturing workshops.
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
Core Advantages
  • 60-ton heavy load design with thickened base and high-strength transmission parts for stable operation under long-term heavy loads
  • Self-aligning roller structure automatically centers cylindrical workpieces, significantly reducing manual adjustment time
  • VFD stepless speed control provides smooth rotation without shaking, suitable for submerged arc automatic girth welding

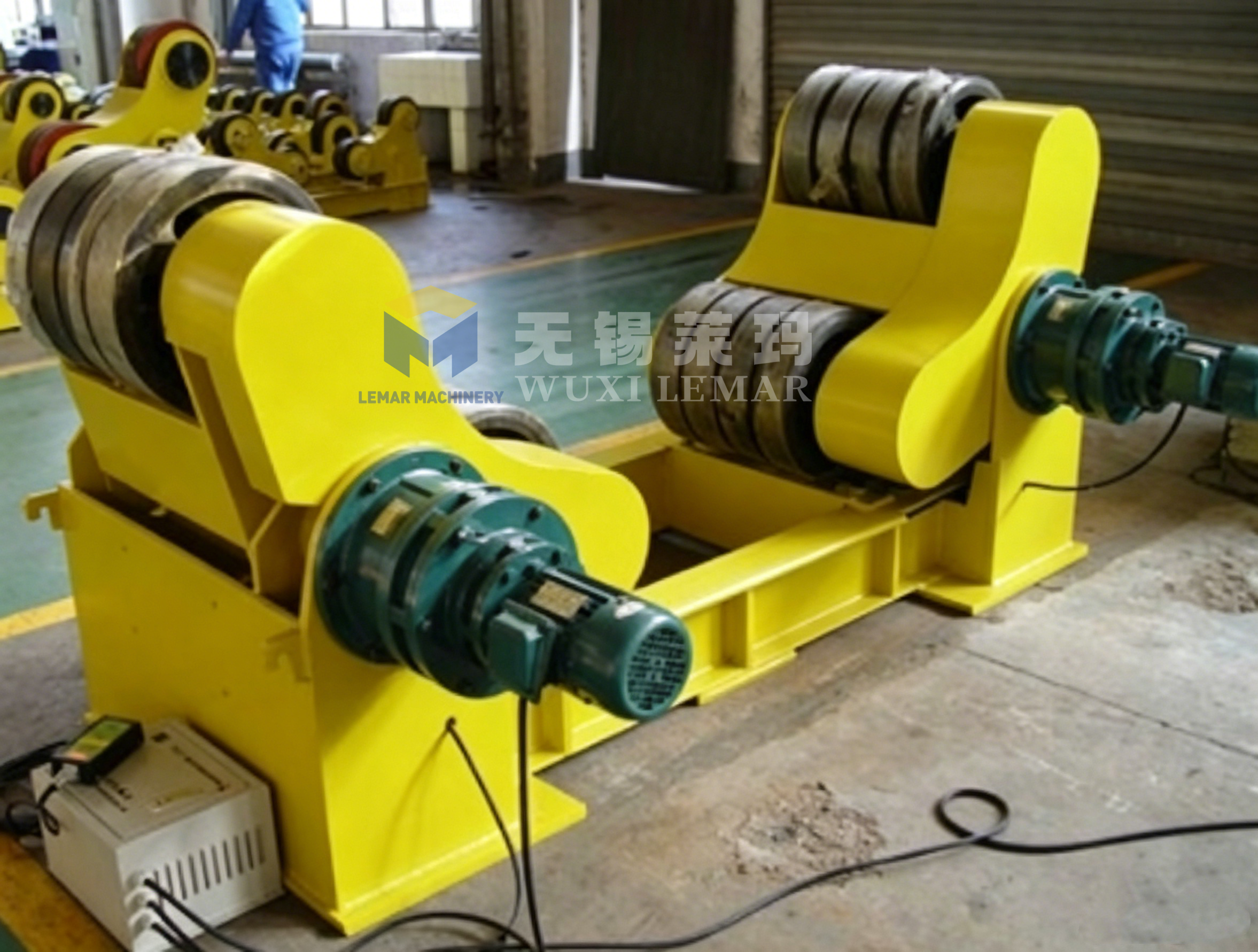

  • Optional PU rollers to protect workpiece surfaces; steel rollers available for heavy rough machining workpieces
  • Robust integral welded frame resists deformation, suitable for harsh continuous production environments

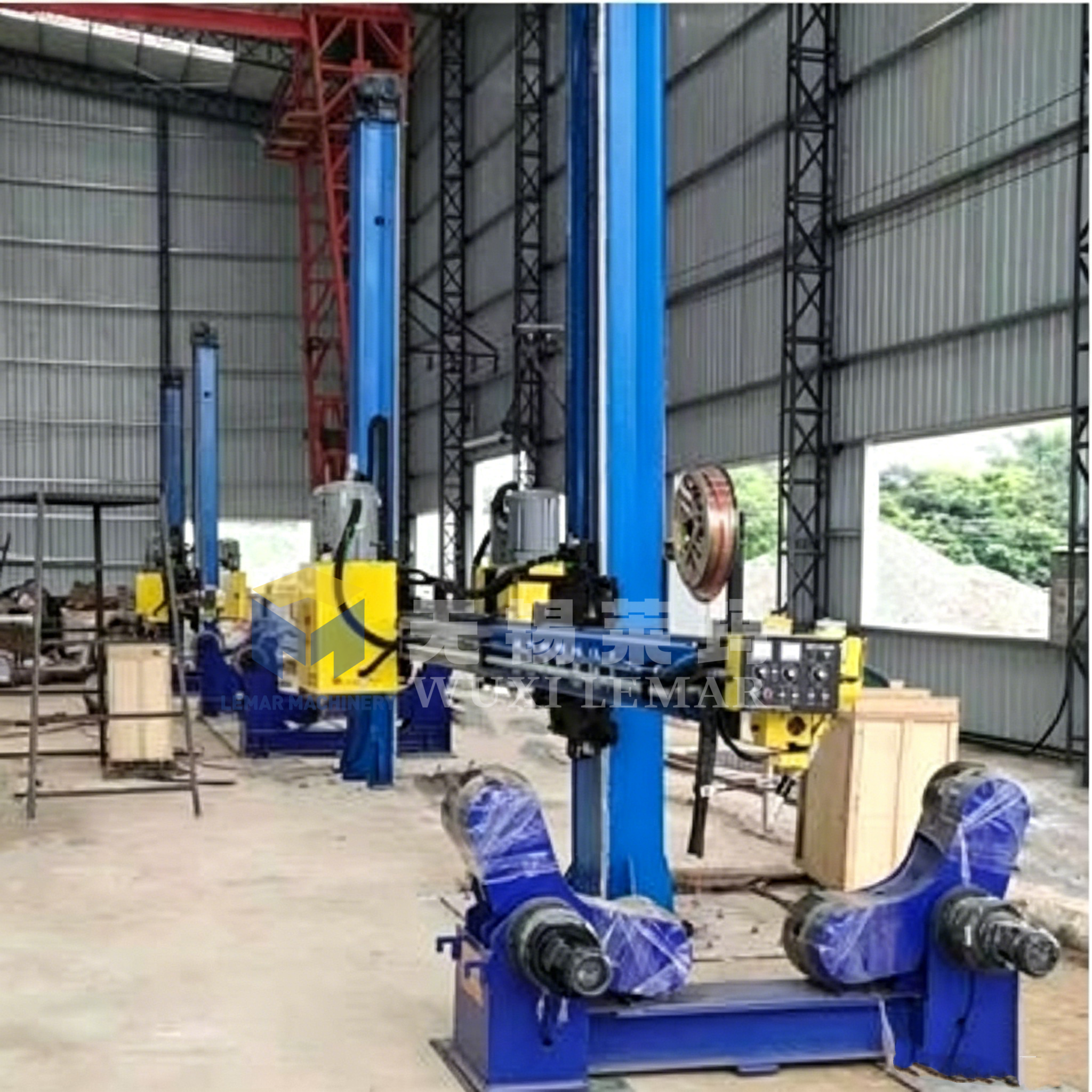

  • Perfectly matched with welding manipulators to build complete automatic cylinder welding production lines
Technical Specifications
Item Specification
Model HGZ-60 Self-Aligning Welding Rotator
Rated Load Capacity 60 Ton (Whole Set)
Suitable Workpiece Diameter 750 mm ~ 4800 mm
Roller Specification Φ450 × 120 mm
Roller Material PU / Carbon Steel Forging Optional
Linear Rotating Speed 100 ~ 1000 mm/min Stepless Adjustable
Total Motor Power 4 kW
Control System VFD Inverter + Hand Pendant
Working Voltage 380V, Customizable for 415V / 220V
Configuration 1 Driving Frame + 1 Idler Frame
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
Product Structure Composition
  • Driving Frame: Provides rotary power, equipped with motor, reducer, and frequency converter
  • Idler Frame: Supports the other end of workpiece and maintains rotary balance
  • Self-Aligning Roller Assembly: Automatically adjusts spacing to match cylinder diameter
  • Frequency Conversion Control Cabinet: Enables forward/reverse rotation and speed regulation
  • Hand Operation Pendant: Convenient on-site operation with emergency stop protection
  • Heavy Welded Base: Ensures overall rigidity during heavy-load welding operations
Application Scope

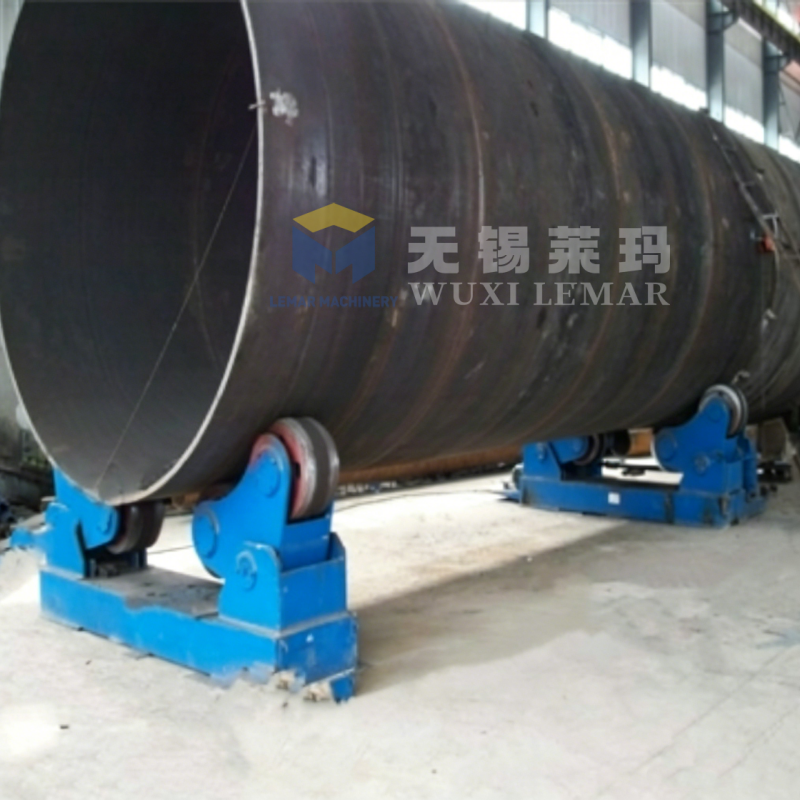

  • Large pressure vessel barrel circumferential welding
  • Wind tower segment rotary welding
  • Chemical storage tank and oil tank cylinder fabrication
  • Boiler shell and large heat exchanger processing
  • Heavy thick-walled steel pipe girth welding
  • Metallurgical, environmental, and petrochemical equipment manufacturing
60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding
After-sales Service
  • 12-month whole machine warranty (excluding wearing parts)
  • Free remote video guidance for installation, wiring, and commissioning
  • Factory-cost spare parts supply for long-term maintenance
  • Response for technical inquiries within 24 working hours
  • Supply of equipment layout CAD drawings for workshop production line planning

60Ton Heavy Duty Welding Turning Rolls for Pressure Vessel Wind Tower Tank Circumferential Welding

Frequently Asked Questions
Q1: What is the maximum load capacity of this welding rotator?
A1: Standard whole set rated load is 60 Ton, with customized higher capacity options available.
Q2: What range of cylinder diameter can this machine support?
A2: Standard model fits workpiece diameters from 750mm to 4800mm.
Q3: Can rollers be customized?
A3: Yes, we provide polyurethane rollers and forged steel rollers for selection based on application needs.
Q4: Is speed adjustable during operation?
A4: Equipped with VFD stepless speed regulation, allowing real-time speed adjustment during operation.
Q5: Can it work with submerged arc welding manipulator?
A5: Yes, widely matched with automatic welding manipulators for girth welding applications.
Q6: What voltage options are available?
A6: 380V, 415V and other customized three-phase voltage configurations are supported.
