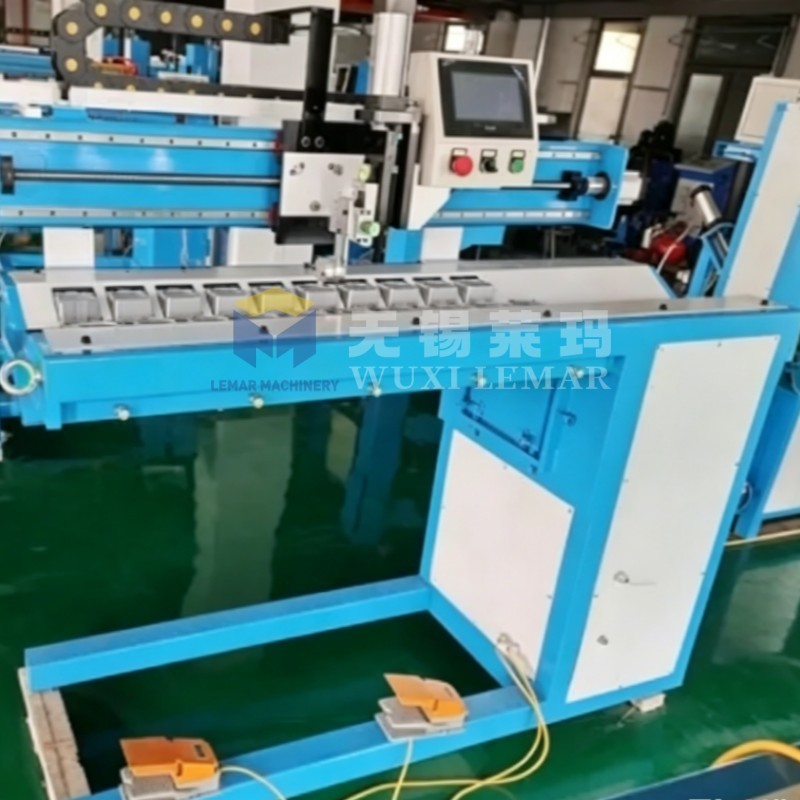

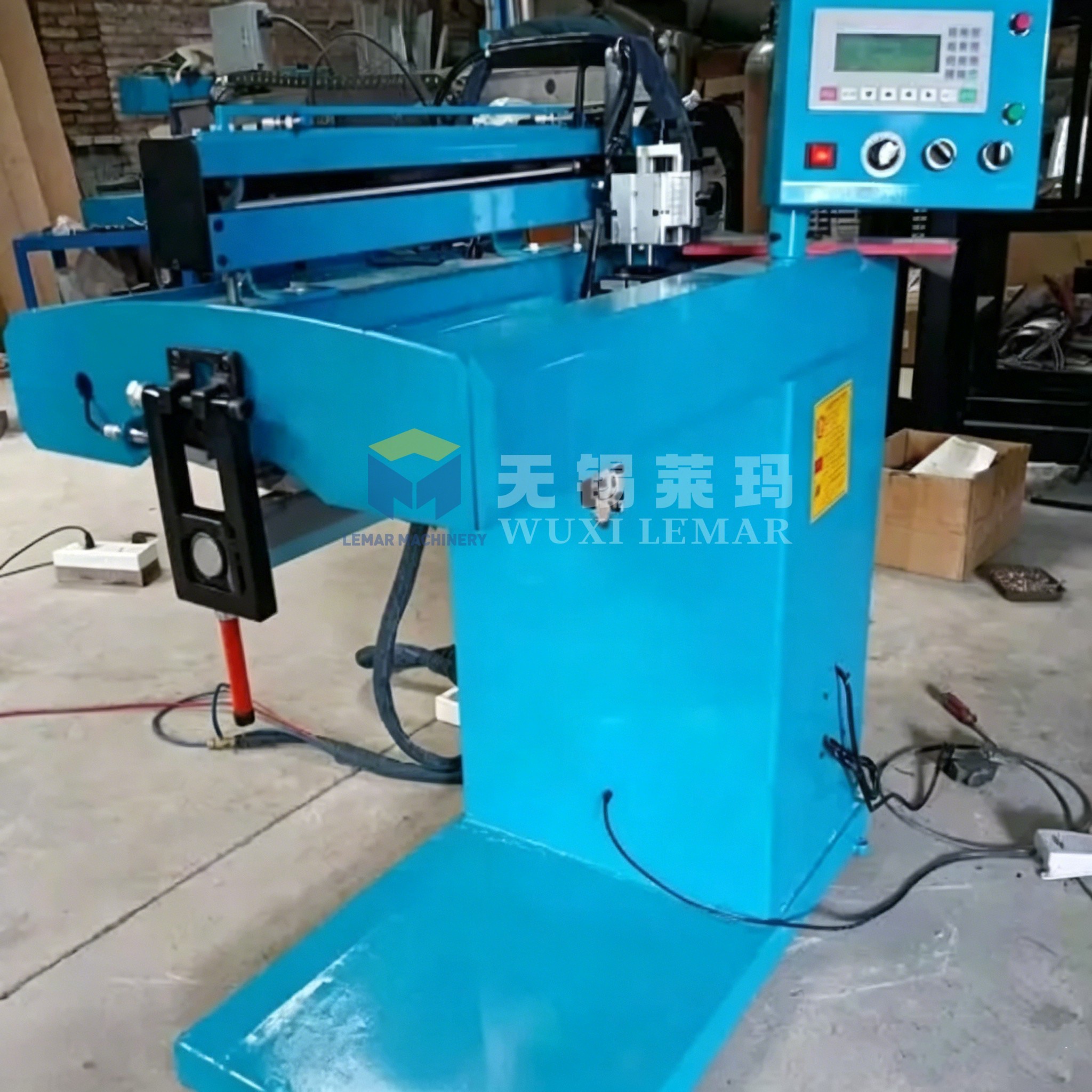

ZF1200 straight seam welding machine is our standard compact model for thin-wall small cylindrical workpieces, with fixed 1200mm effective welding stroke.

Light integrated cast beam saves workshop space, equipped with full segmented water cooling piano-key fixture to suppress thin plate thermal deformation.

It supports TIG/MIG/Plasma welding sources, realizes smooth single-side welding double-side forming with back argon protection, ideal for mass production of small tanks and ventilation ducts.

• 1200mm fixed full stroke, dedicated to short cylinder & duct processing
• Light cast steel frame, stable and anti-deformation for long-hour running
• 1200mm water cooling pressing plate, continuous welding without overheating
• 7-inch touch PLC, store 50 sets of welding parameters for batch jobs
• Stepless speed control + linear guide, uniform weld bead without ripples
• Process 0.4-3mm sheet, workpiece diameter Φ100-800mm

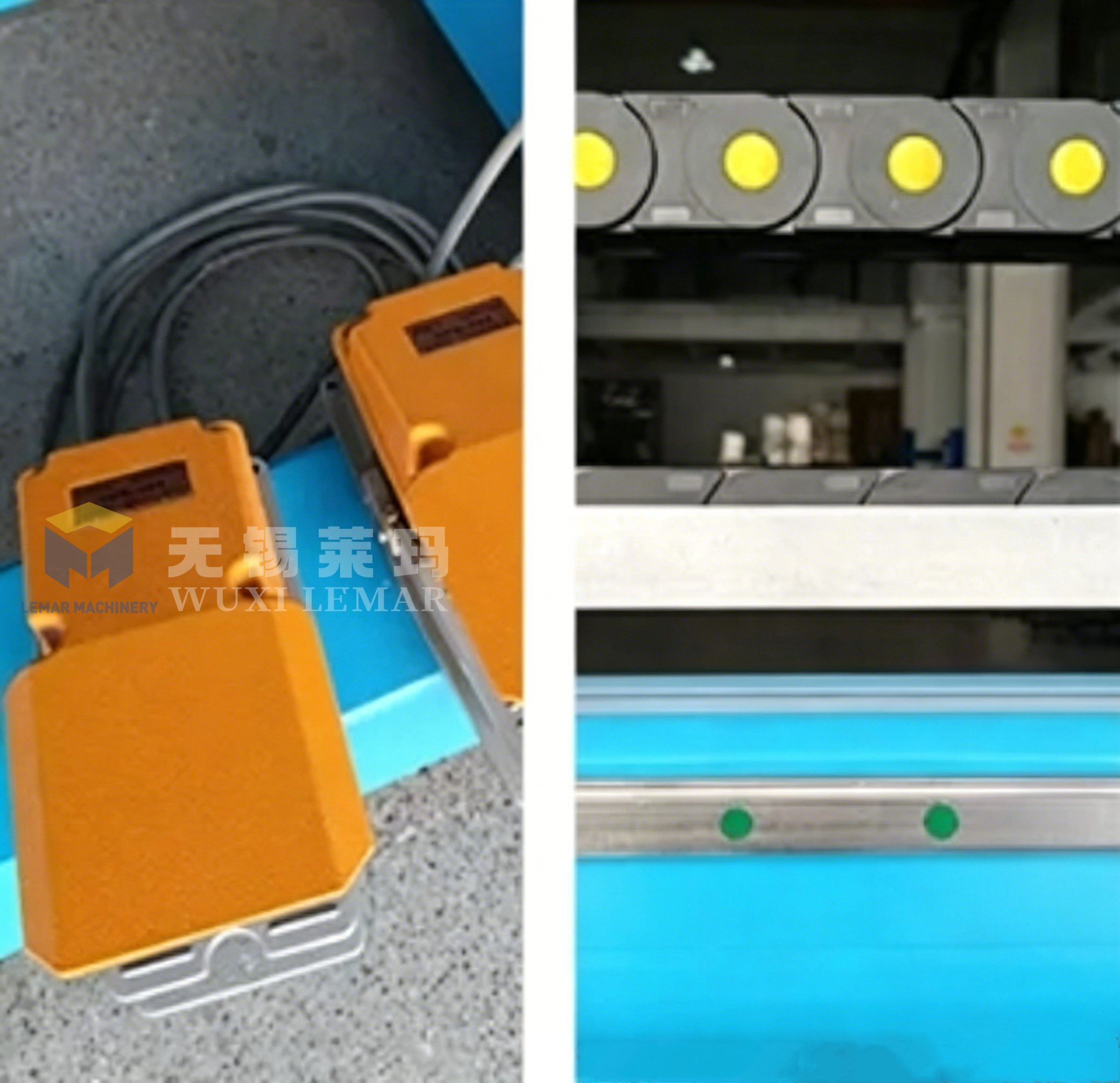

• 3D adjustable torch holder + foot pedal, easy operation for workers
• Low maintenance cost, universal standard spare parts

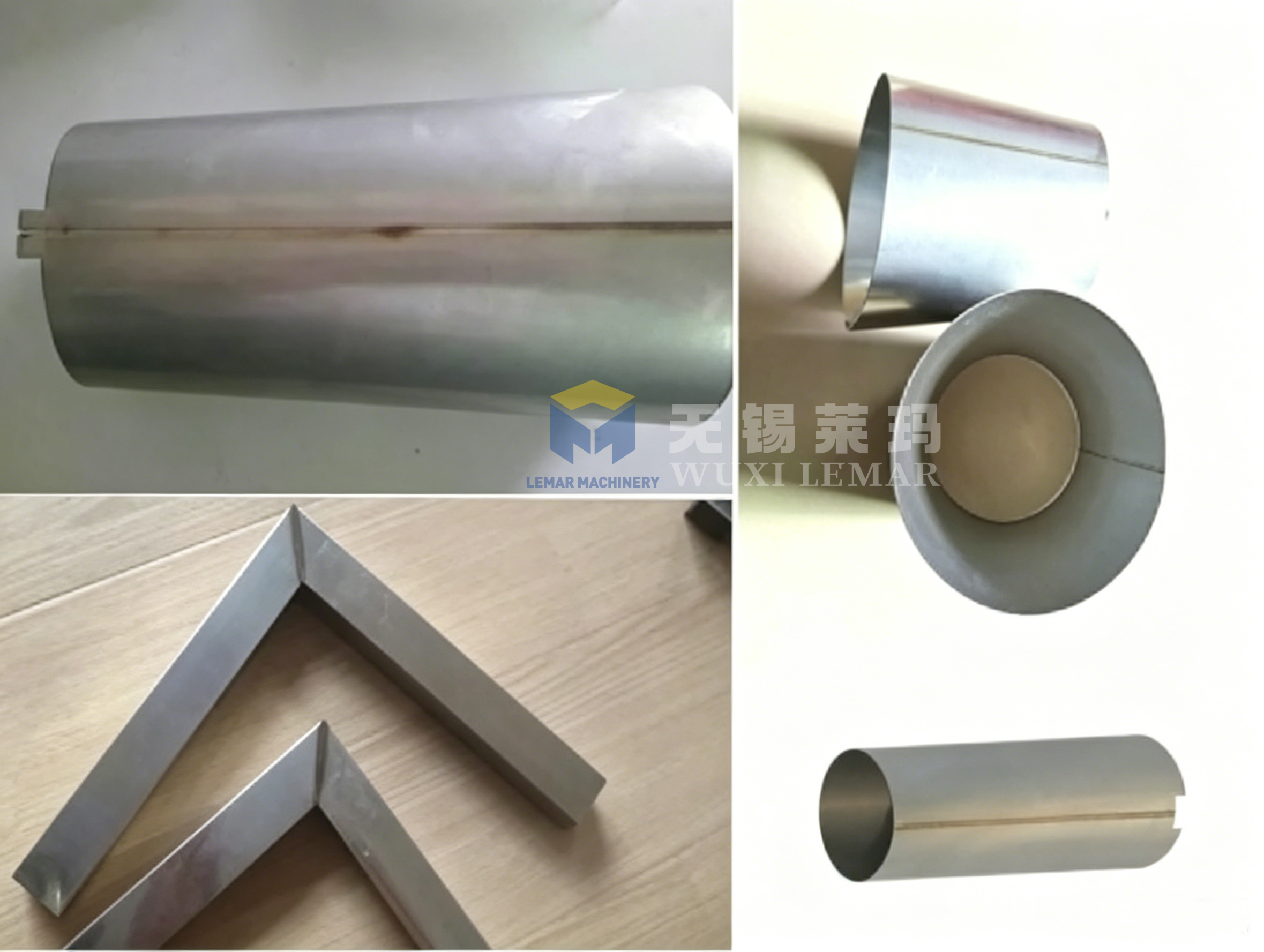

Ventilation ducts, exhaust pipes, small stainless water tanks, filter barrels, mini buffer vessels, new energy equipment shells, kitchen metal fittings, flat plate butt pieces.

304/316 stainless steel, mild carbon steel, galvanized sheet, aluminum alloy, thin copper plate.

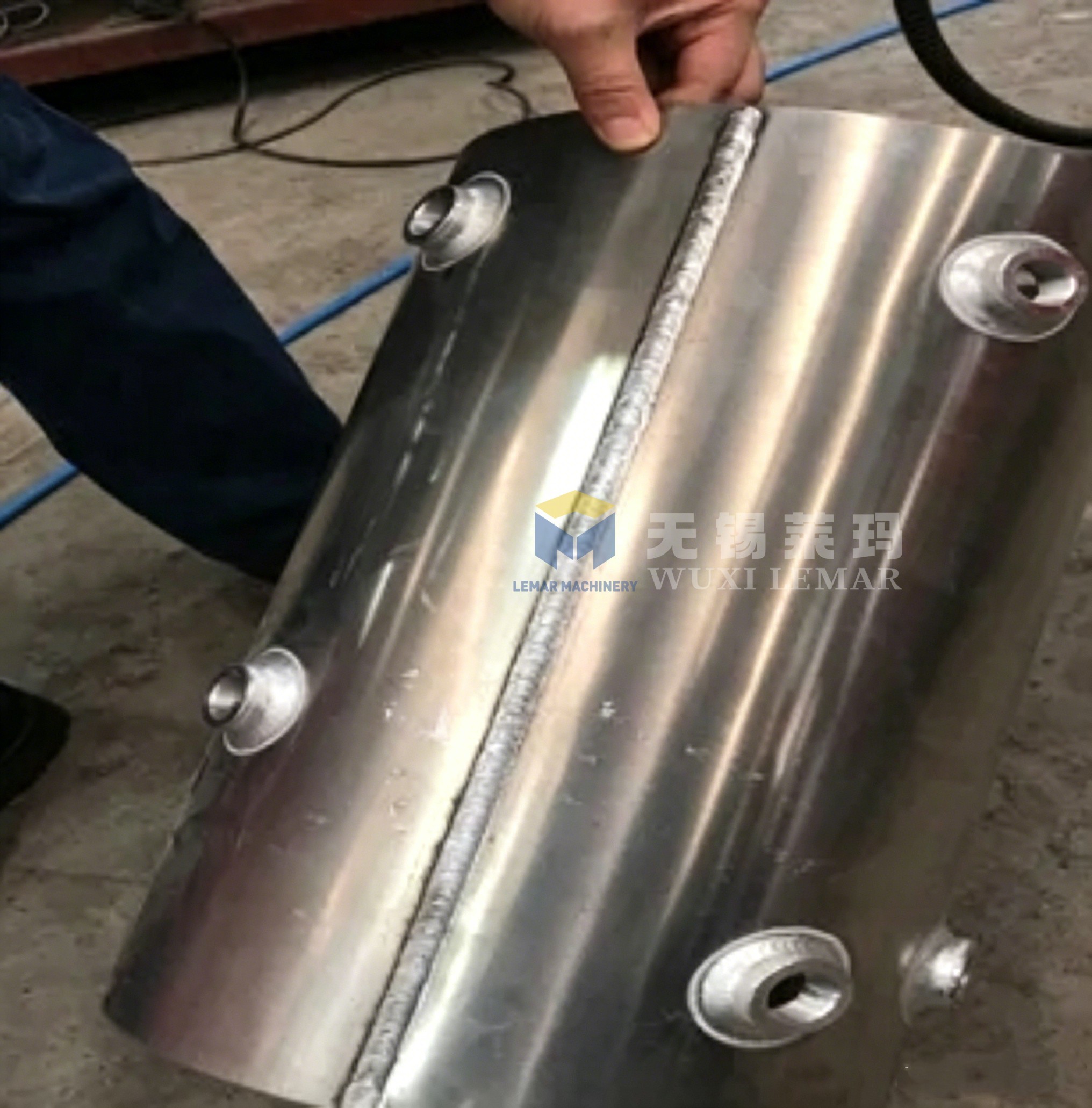

• Double-side forming without secondary polishing, clean oxidation-free weld surface
• Water cooling fixture effectively prevents thin plate warping
• Constant moving speed guarantees consistent weld width over 1200mm
• Back argon shielding meets high-standard stainless steel processing demand
• Stable low-noise operation for daily mass production

• Match different brands of TIG/MIG/Plasma welding power
• Add automatic seam tracking device
• Custom positioning fixture for special workpiece length
• Support global voltage & frequency conversion

Max effective welding stroke reaches 1200mm, fit short cylinders and air ducts.

Suitable for 0.4mm to 3mm thin metal plates, including stainless steel, carbon steel, aluminum.

Workpiece diameter range: Φ100mm - Φ800mm.

It can be equipped with TIG, MIG, MAG and plasma welding power sources.

No. Equipped with full 1200mm water cooling piano-key clamping structure to control heat deformation efficiently.

Yes. The 7-inch PLC touch screen can save up to 50 groups of parameters for batch production.
