D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish
Specifications
Supply Ability :
500 units/month
Machining Feature :
5-sided fully machined (top + four vertical sides)
Model Number :
D28
Warranty :
2 years against manufacturing defects
Price :
500-1500 USD
Material Options :
HT300 Cast Iron / S355J2+N Structural Steel
Hole Tolerance :
D10 tolerance zone
MOQ :
1 PCS
Delivery Time :
15-25 work days
Side Verticality :
≤0.1mm / 200mm
Payment Terms :
D/A,L/C,D/P,T/T
Tabletop Thickness :
25mm
Flatness Standard :
≤0.1mm/m
Compatible :
All standard D28 fixtures
Certification :
CE
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Brand Name :
WUXI LEMAR
Surface :
Nitriding
Description
D28 3D Modular Welding Table Nitrided Surface Finish
D28 3D Modular Welding Table Nitrided Surface Finish

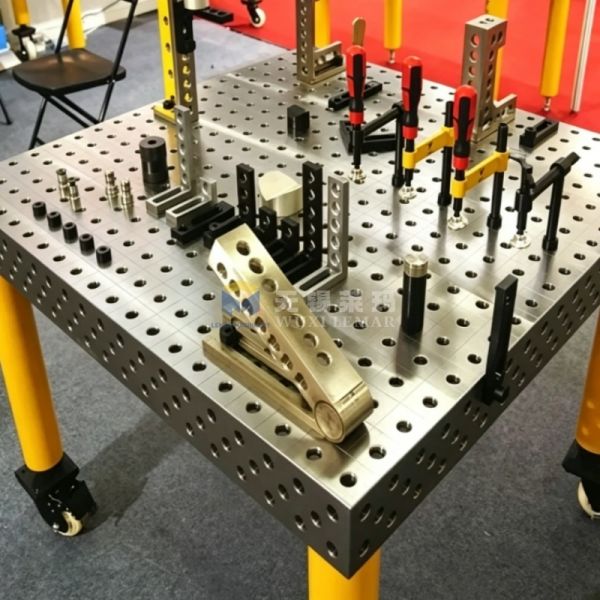

The D28 3D Modular Welding Table with Nitrided Surface Finish adopts industry-standard D28 Φ28 hole system with 100×100mm grid. Five fully machined working faces realize flexible three-dimensional fixturing. The plasma nitrided surface forms a hard diffusion layer, effectively resisting scratches, welding spatter adhesion and rust. With reliable structural rigidity and strict flatness control, this welding platform is compatible with all D28 modular clamping components and serves as an ideal benchmark workstation for batch welding and assembly work.


D28 3D Modular Welding Table Nitrided Surface Finish D28 3D Modular Welding Table Nitrided Surface Finish

Standard Size Chart
Note: All dimensions (Length × Width) in mm; 25mm standard tabletop thickness, customizable sizes available upon request.
Table Size (L × W) Standard Thickness Uniform Load Capacity Suitable Application
1000 × 800 25 mm 2000 kg/㎡ Small & medium component welding, workshop prototype
1200 × 1000 25 mm 2200 kg/㎡ General metal fabrication, light frame assembly
1500 × 1000 25 mm 2200 kg/㎡ Medium-sized frames, engineering spare parts
2000 × 1000 25 mm 2500 kg/㎡ Chassis, machinery support frame fabrication
2400 × 1200 25 mm 2500 kg/㎡ Trailer frames, medium steel structure
3000 × 1500 25 mm 2800 kg/㎡ Large structural parts, robotic welding station
4000 × 2000 25 mm 3000 kg/㎡ Oversized workpieces, multi-table splicing system
Core Platform Advantages
D28 3D Modular Welding Table Nitrided Surface Finish
  • Flexible production eliminates the need for dedicated tooling: Traditional methods require custom welding jigs for each workpiece, resulting in high costs and excessive warehouse storage; the D28 modular system welding table utilizes standard modules for rapid reconfiguration, reducing changeover times from days to under 30 minutes.
  • Compatible with all welding processes: Supports MIG/MAG, TIG, manual arc welding, and plasma welding; also serves as a welding table for assembly and inspection/measurement.
  • Infinitely scalable through modular connection: Multiple welding tables are rigidly connected using joining pins, ensuring continuous surface flatness across the assembly—ideal for extra-long steel structures, vehicle chassis, and large-scale frameworks.

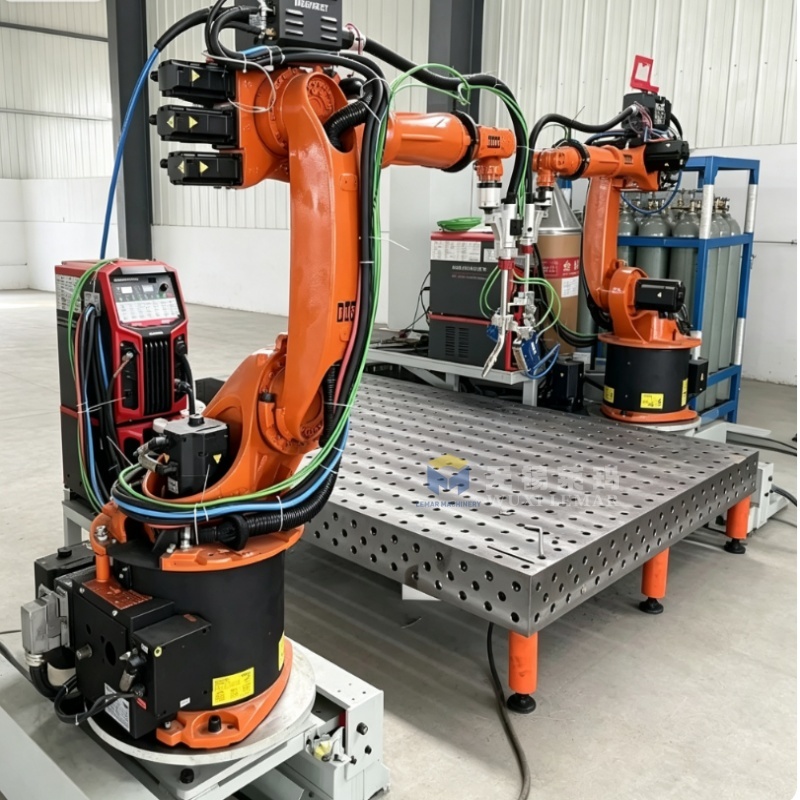

  • Automation-ready: Can be mounted directly onto robotic welding bases to serve as a reference fixture for robotic workstations; digital tooling capabilities allow for the pre-simulation of clamping setups within 3D software.
Usage Restrictions
  • Do not perform flame cutting directly on the table surface. The high localized heat from oxy-fuel cutting damages the nitrided layer and causes localized thermal deformation, permanently compromising flatness. If cutting is necessary, a steel plate must be placed underneath as a protective barrier.
  • Do not allow heavy objects to strike the table edges or corners from a height. While the nitrided layer is hard, it is also brittle; severe impact can cause the surface to crack or chip.
  • Do not use an angle grinder to grind large areas of the working surface. Grinding removes the hardened nitrided layer, resulting in a localized loss of wear and rust resistance.
  • When performing continuous, prolonged high-temperature welding, it is recommended to distribute the welding points. Sustained localized high heat accelerates long-term deformation; however, cast iron welding tables offer better thermal cycling performance than steel welding tables.
FAQ
Q: Can multiple tables be connected together for extra large workpieces?
A: Sure. Special splicing pins connect tables tightly and keep continuous flatness for large fabrication projects.
Q: What payment terms can you accept?
A: We accept T/T, L/C. Normally 30% deposit, balance against copy of Bill of Lading.
Q: What is your production lead time?
A: Standard size D28 welding tables: 15-25 working days. Custom sizes require extra time, we will confirm schedule formally in PI.
Q: How do you pack the tables for sea shipment?
A: Packed in fumigated wooden cases for ocean transport. Corners protected to avoid impact damage during transit.
Q: Are support legs and clamping accessories included in table price?
A: Tabletop price does NOT include support legs and fixtures. We can offer matched D28 accessory packages as a full set quotation if you need.
Q: Can you accept customized sizes?
A: Yes. Apart from standard sizes listed, we produce non-standard dimensions according to your drawings.
Q: Do you have any warranty for the welding table?
A: We provide 2-year warranty against manufacturing defects. Damage caused by improper operation, impact or flame cutting is not covered.

Should you have any questions about specifications, surface treatment or delivery schedule of D28 3D Modular Welding Table Nitrided Surface Finish, do not hesitate to contact us. We are pleased to provide detailed offer and relevant inspection documents based on your demand. Waiting for your inquiry.
