Growatt Solar Energy System MID 36KTL3-X on Grid Commercial & Industrial PV Solar Inverter DC AC 36kw Grid Tie Inverter

Specifications

Place of Origin :

Anhui, China

Model Number :

MID 36KTL3-X

Brand Name :

Growatt

Input Voltage :

1100V

Output Voltage :

230V/400V; 340-440V

Output Current :

60.0A

Output Frequency :

50/60 Hz; 45~55Hz/55-65 Hz

Output Type :

Three Phase

Size :

580/435/230mm

Type :

DC/AC Inverters

Inverter Efficiency :

98.8%

Weight :

29.5kg

Start Voltage :

250V

Normal Voltage :

600V

MPPT voltage range :

200V-1000V

Max.input current per MPP tracker :

26A

Rated AC output power :

36000W

Max. AC apparent power :

39600VA

Adjustable power factor :

0.8 leading - 0.8 lagging

THDi :

<3%

European efficiency :

98.5%

MPPT efficiency :

99.9%

MOQ :

1 piece

Price :

$1,100-1,200 / piece

Description

Products Description

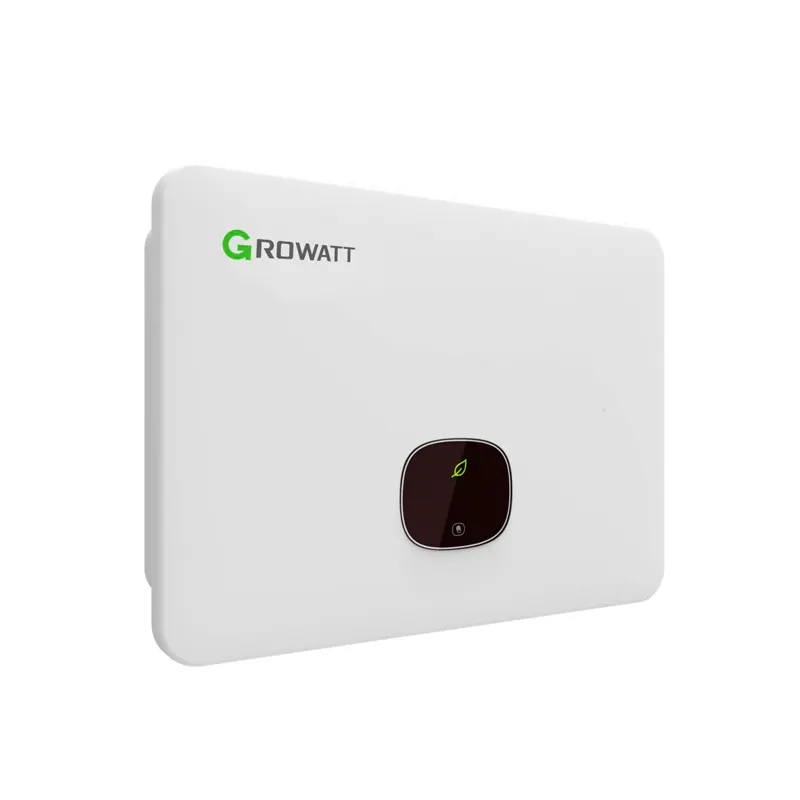

MID 36KTL3-X

* The maximum efficiency is up to 98.8%

* Touch key and OLED display

* String monitoring

* AC&DC type II SPD

* AFCI optional

Product Paramenters

Datasheet	MID 36KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)	54000W
Max. DC voltage	1100V
Start Voltage	250V
Normal Voltage	600V
MPPT voltage range	200-1000V
No. of MPP trackers/strings per MPP tracker	4/2
Max.input current per MPP tracker	26A
Max. short-circuit current per MPP tracker	32A
Output data (AC)
Rated AC output power	36000W
Max. AC apparent power	39600VA
Nominal AC voltage(range*)	230V/400V; 340-440V
AC grid frequency;(range*)	50/60 Hz; 45~55Hz/55-65 Hz
Max. output current	60.0A
Adjustable power factor	0.8 leading - 0.8 lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	98.8%
European efficiency	98.5%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	Yes
DC Switch	Yes
AC/DC surge protection	Type II / Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
String monitoring	Yes
AFCI protection	Optional
General data
Dimensions (W / H / D)	580/435/230mm
Weight	29.5kg
Operating temperature range	–25 °C ... +60 °C
Self-Consumption (night)	< 1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP66
Relative Humidity	0~100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Cable gland+OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN	Yes/Yes /Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116,IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565
* The AC voltage range and frequency range may vary depending on specific country grid standard. All specifications are subject to change without notice.

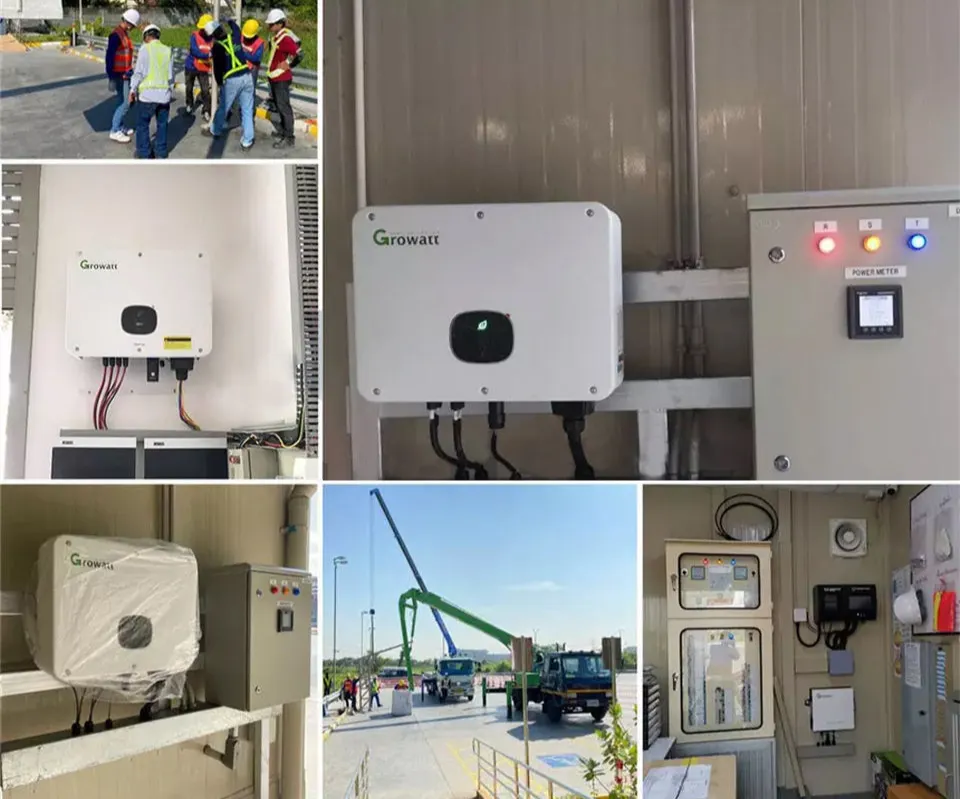

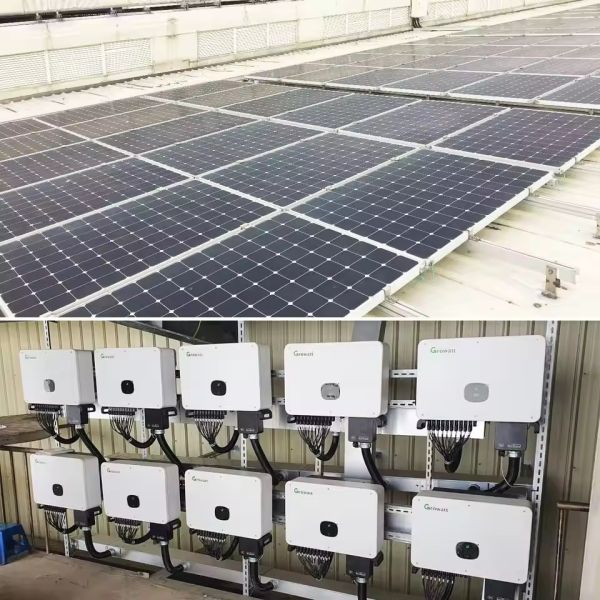

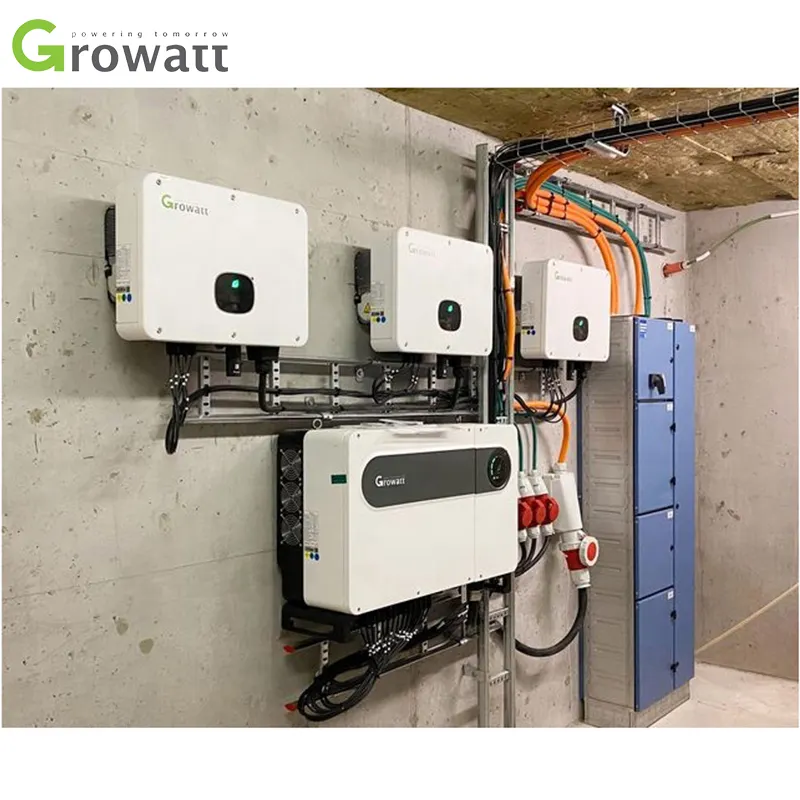

Project Case

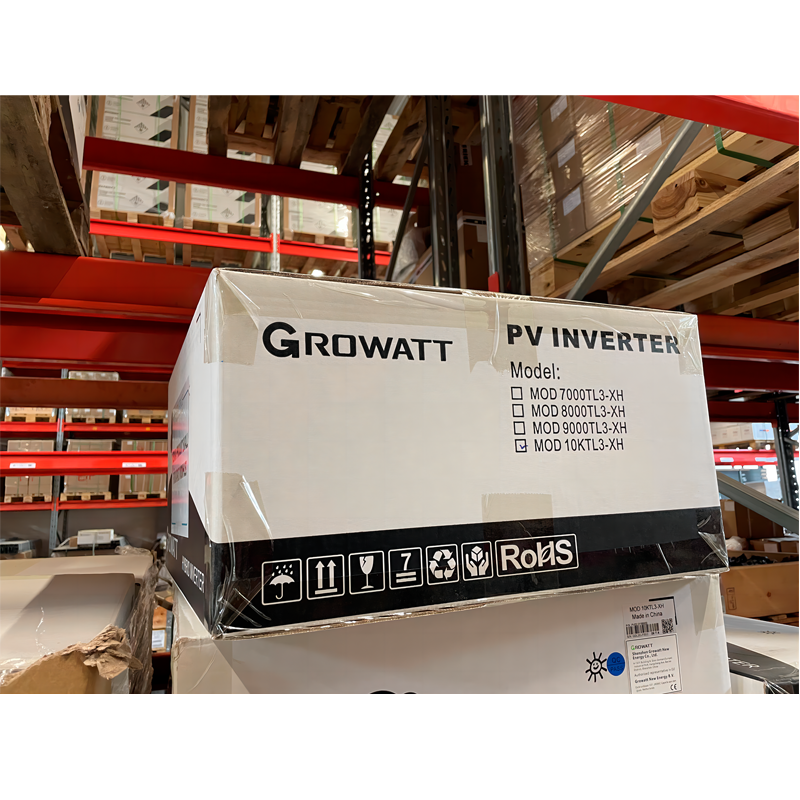

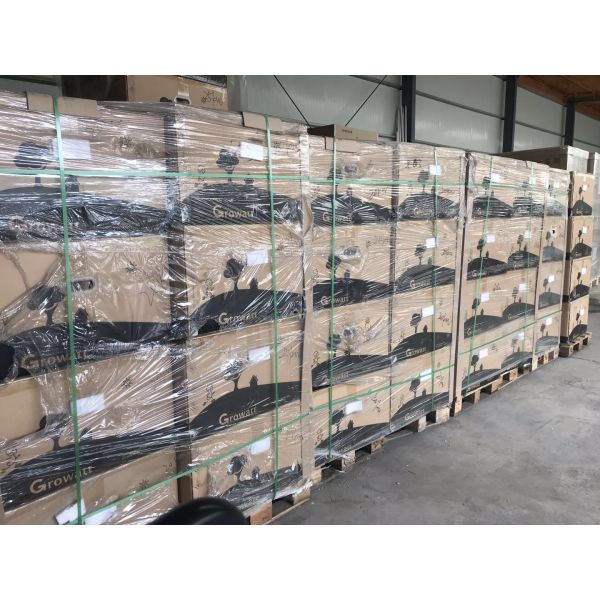

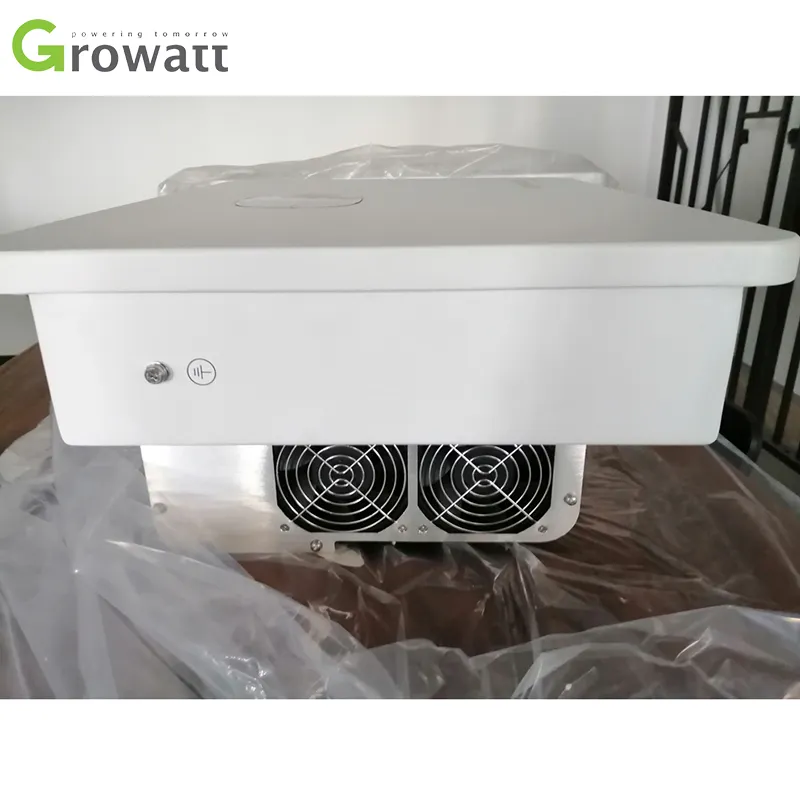

Packing & Delivery

Exhibition

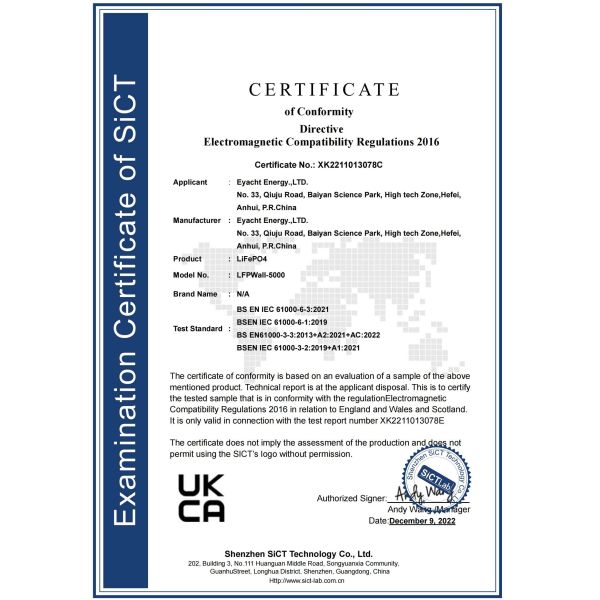

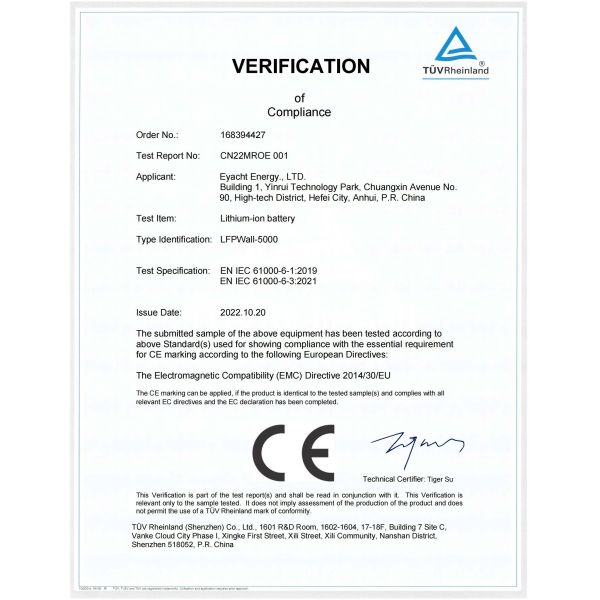

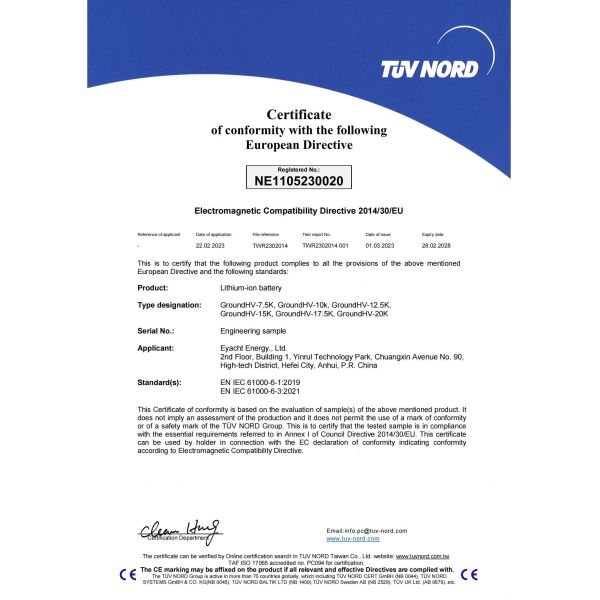

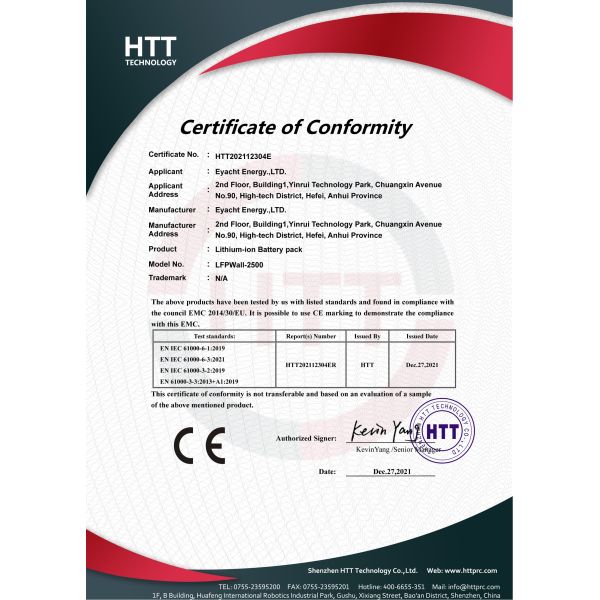

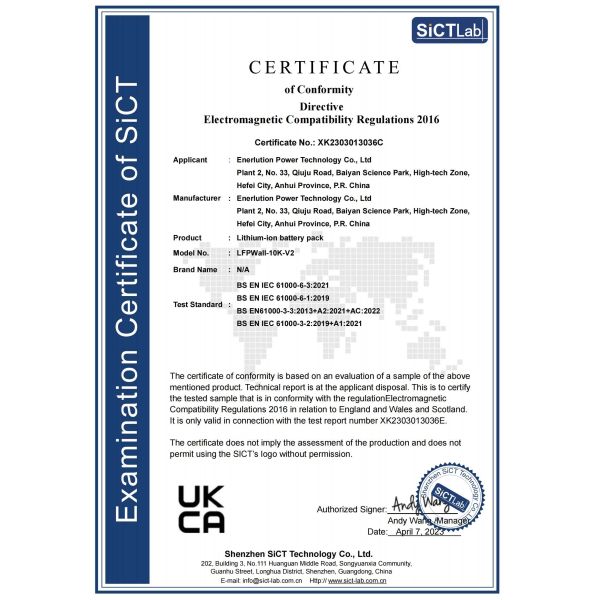

Certificate
