Specifications
Place of Origin :
Anhui, China
Model Number :
MOD 12KTL3-X
Brand Name :
Growatt
Input Voltage :
1100V
Output Voltage :
220V/380V, 230V/400V (340-440V)
Output Current :
20A
Output Frequency :
50/60 Hz (45-55Hz/55-65 Hz)
Output Type :
Three Phase
Size :
425/387/178mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.6%
Weight :
14kg
Start voltage :
160V
Nominal voltage :
580V
MPPT voltage range :
140V-1000V
Adjustable power factor :
0.8leading...0.8lagging
THDi :
<3%
AC grid connection type :
3W+N+PE
Operating temperature range :
-25°C ... +60°C
Nighttime power consumption :
< 1W
Topology :
Transformerless
Cooling :
Natural convection
MOQ :
1 piece
Price :
$630-669 / piece
Description
Products Description

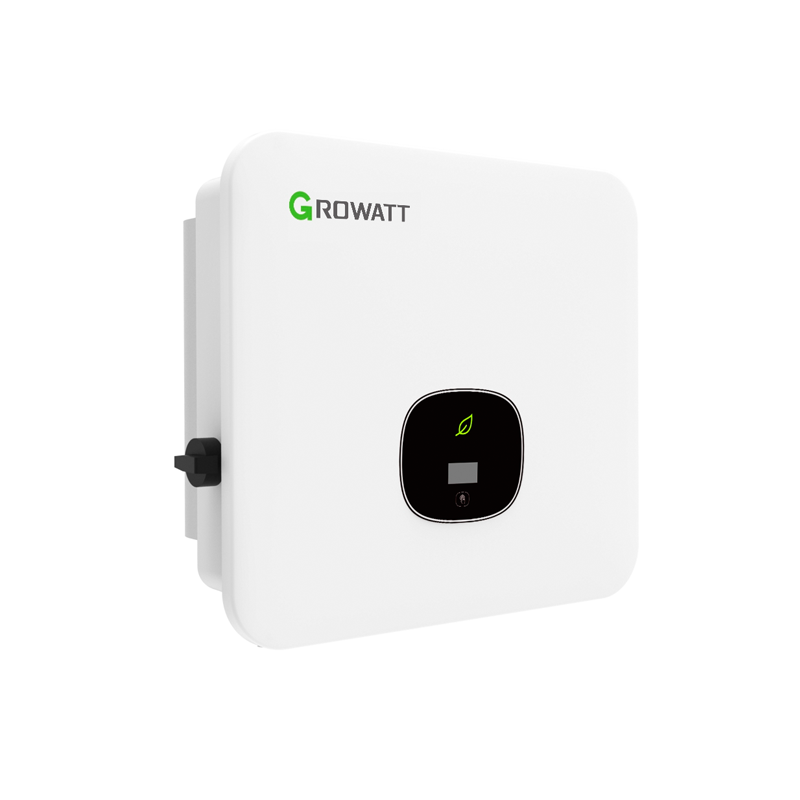

High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter


MOD 12KTL3-X

* Max. efficiency 98.6%

* OLED and Touch button

* Type II SPD on DC and AC side

* String Monitoring

* AFCI optional
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
Product Paramenters
Datasheet
MOD 12KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)
18000W
Max. DC voltage
1100V
Start voltage
160V
Nominal voltage
580V
MPPT voltage range
140V-1000V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1/2
Max. input current per MPP tracker
13/26A
Max. short-circuit current per MPP tracker
16/32A
Output data (AC)
AC nominal power
12000W
Max. AC apparent power
13200VA
Nominal AC voltage(range*)
220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
20A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W+N+PE
Efficiency
MAX. efficiency
98.6%
European efficiency
98.2%
MPPT efficiency
99.9%
General data
Dimensions (W / H / D)
425/387/178mm
Weight
16kg
Operating temperature range
–25°C ... +60°C
Nighttime power consumption
< 1W
Topology
Transformerless
Cooling
Natural convection
Protection degree
IP66
Relative humidity
0~100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Connector
Display
OLED+LED/WIFI+APP
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF
yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years
Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger
G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2
* For Belgium C10/C11, MOD 10KTL3-X max. output power is limit to 10000VA.
* The AC voltage range and frequency range may vary depending on specific country grid standard.
All specifications are subject to change without notice.

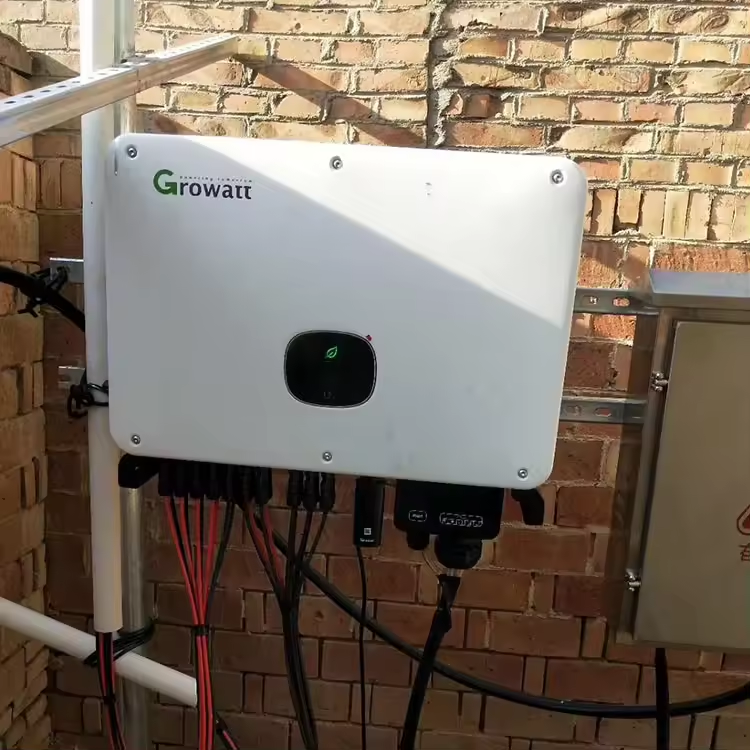

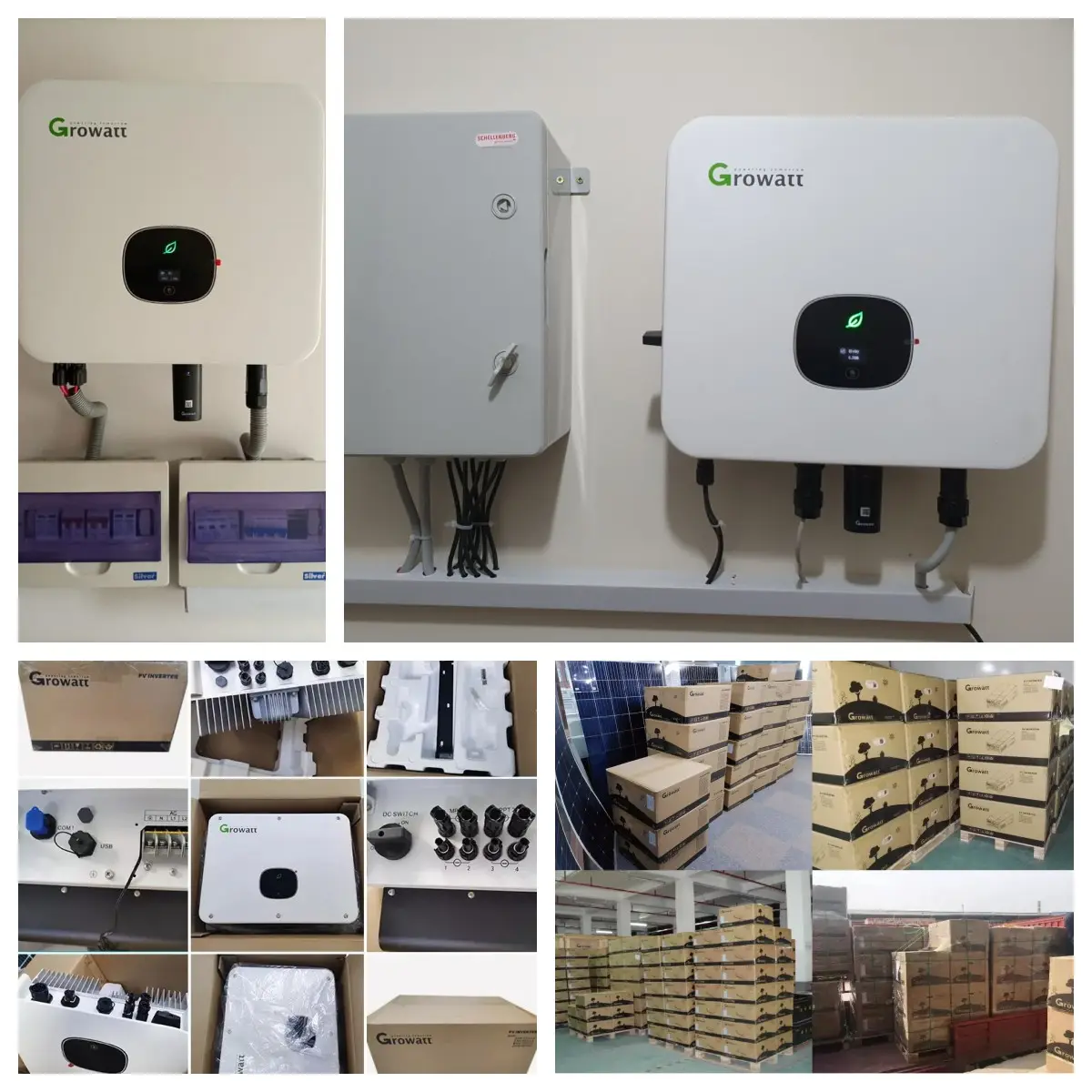

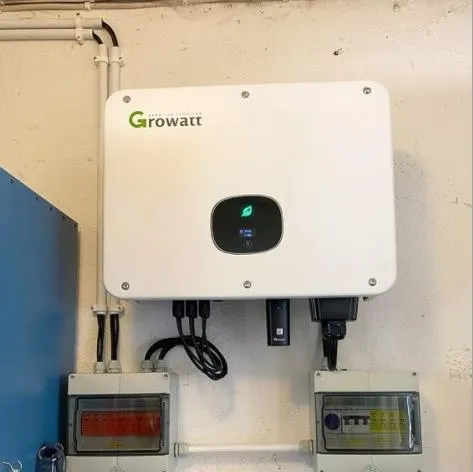

Project Case
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter

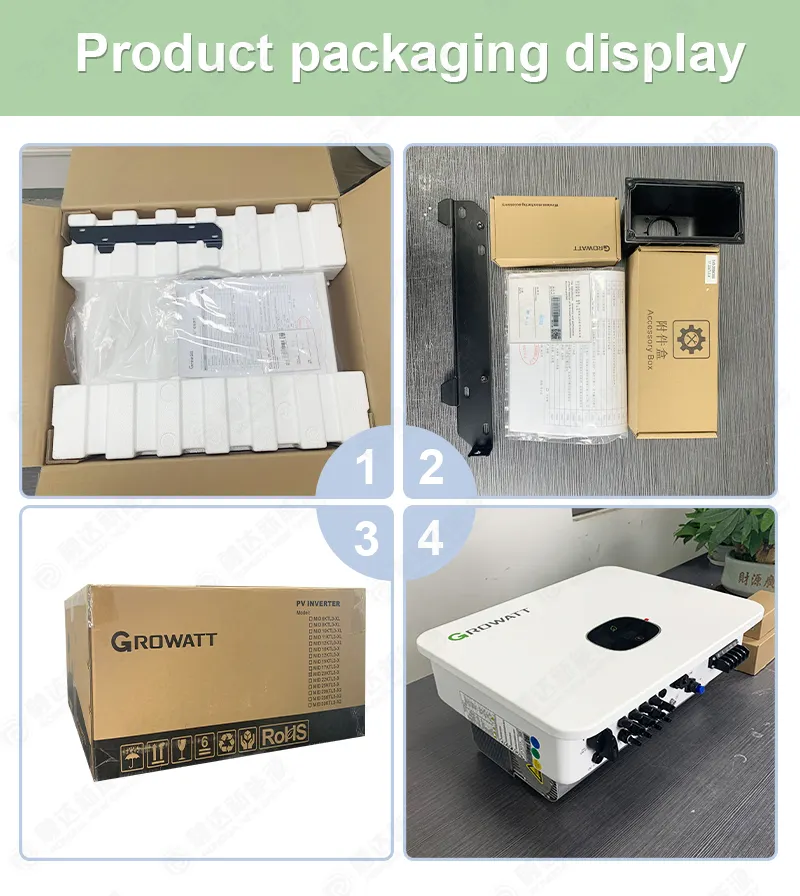

Packing & Delivery
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter
High Efficiency Growatt Three Phase Inverter MOD 12KTL3-X 12KW 2MPPT Inverter Price on Grid Grid Tie Solar Inverter

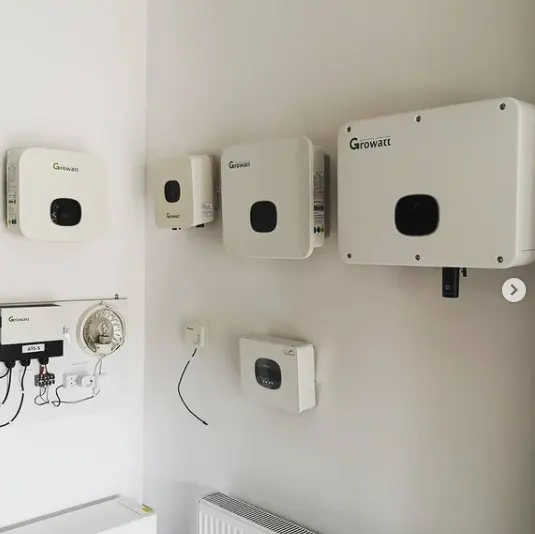

Exhibition
